132 Series (12 Gauge)

G1321: 13/16" x 1-5/8", solid, 10'

• Part Number: G1321
• UPC: 08153810100360
• Description: Solid, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1322: 13/16" x 1-5/8", solid, 20'

• Part Number: G1322
• UPC: 08153810100407
• Description: Solid, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H1: 13/16" x 1-5/8", hole, 10'

• Part Number: G132H1
• UPC: 08153810100445
• Description: With 9/16 in. Hole, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"

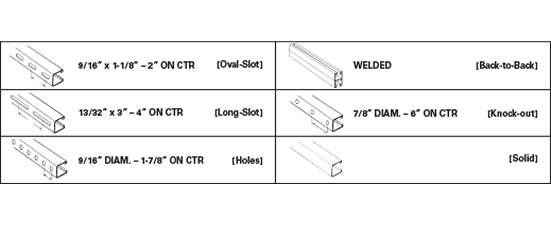

• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H2: 13/16" x 1-5/8", hole, 20'

• Part Number: G132H2
• UPC: 08153810100483
• Description: With 9/16 in. Hole, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS1: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G132OS1
• UPC: 08153810100018
• Description: With 9/16 in. x 1-1/8 in. Slot, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS2: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G132OS2
• UPC: 08153810100032
• Description: With 9/16 in. x 1-1/8 in. Slot, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS1: 13/16" x 1-5/8", long slot, 10'

• Part Number: G132LS1
• UPC: 08153810100513
• Description: With 13/32 in. x 3 in. Slot, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS2: 13/16" x 1-5/8", long slot, 20'

• Part Number: G132LS2
• UPC: 08153810100544
• Description: With 13/32 in. x 3 in. Slot, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A1: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G132A1
• UPC: 727431897565
• Description: Back-to-Back Welded, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 264

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A2: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G132A2
• UPC: 727431897596
• Description: Back-to-Back Welded, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 264

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS1: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G132AOS1
• UPC: 727431897619
• Description: Back-to-Back Welded, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 264

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS2: 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G132AOS2
• UPC: 727431897626
• Description: Back-to-Back Welded, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 264

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO1: 13/16" x 1-5/8", knock-out, 10'

• Part Number: G132KO1
• Description: With 9/16 in. Knock-out, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO2: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G132KO2
• Description: With 9/16 in. Knock-out, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1321POP: 13/16" x 1-5/8", solid, 10'

• Part Number: G1321POP
• UPC: 08153810100391
• Description: Solid, 10 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1322POP: 13/16" x 1-5/8", solid, 20'

• Part Number: G1322POP
• UPC: 08153810100438
• Description: Solid, 20 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H1POP: 13/16" x 1-5/8", hole, 10'

• Part Number: G132H1POP
• UPC: 08153810100476
• Description: With 9/16 in. Hole, 10 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H2POP: 13/16" x 1-5/8", hole, 20'

• Part Number: G132H2POP
• Description: With 9/16 in. Hole, 20 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS1POP: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G132OS1POP
• UPC: 08153810100025
• Description: With 9/16 in. x 1-1/8 in. Slot, 10 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS2POP: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G132OS2POP
• UPC: 08153810100049
• Description: With 9/16 in. x 1-1/8 in. Slot, 20 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS1POP: 13/16" x 1-5/8", long slot, 10'

• Part Number: G132LS1POP
• UPC: 08153810100537
• Description: With 13/32 in. x 3 in. Slot, 10 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS2POP: 13/16" x 1-5/8", long slot, 20'

• Part Number: G132LS2POP
• UPC: 727431897763
• Description: With 13/32 in. x 3 in. Slot, 20 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A1POP: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G132A1POP
• UPC: 727431897572
• Description: Back-to-Back Welded, 10 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 264

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A2POP: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G132A2POP
• Description: Back-to-Back Welded, 20 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 264

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS1POP: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G132AOS1POP
• Description: Back-to-Back Welded, 10 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 264

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS2POP: 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G132AOS2POP
• Description: Back-to-Back Welded, 20 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 264

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO1POP: 13/16" x 1-5/8", knock-out, 10'

• Part Number: G132KO1POP
• Description: With 7/8 in. Knock-out, 10 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO2POP: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G132KO2POP
• Description: With 7/8 in. Knock-out, 20 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: 500
• Weight (per 100): 132

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1321SS: 13/16" x 1-5/8", solid, 10'

• Part Number: G1321SS
• Description: Stainless Steel, 10'
• Finish: Grade 304
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1322SS: 13/16" x 1-5/8", solid, 20'

• Part Number: G1322SS
• UPC: 727431897510
• Description: Stainless Steel, 20'
• Finish: Grade 304
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H1SS: 13/16" x 1-5/8", hole, 10'

• Part Number: G132H1SS
• Description: Stainless Steel, 10'
• Finish: Grade 304
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H2SS: 13/16" x 1-5/8", hole, 20'

• Part Number: G132H2SS
• Description: Stainless Steel, 20'
• Finish: Grade 304
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS1SS: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G132OS1SS
• UPC: 727431897817
• Description: Stainless Steel, 10'
• Finish: Grade 304
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS2SS: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G132OS2SS
• UPC: 727431897855
• Description: Stainless Steel, 20'
• Finish: Grade 304
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS1SS: 13/16" x 1-5/8", long slot, 10'

• Part Number: G132LS1SS
• Description: Stainless Steel, 10'
• Finish: Grade 304
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS2SS: 13/16" x 1-5/8", long slot, 20'

• Part Number: G132LS2SS
• Description: Stainless Steel, 20'
• Finish: Grade 304
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A1SS: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G132A1SS
• UPC: 727431897589
• Description: Back-to-Back Welded, Stainless Steel, 10 ft.
• Finish: Grade 304
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A2SS: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G132A2SS
• Description: Back-to-Back Welded, Stainless Steel, 20 ft.
• Finish: Grade 304
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS1SS: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G132AOS1SS
• Description: Back-to-Back Welded, Stainless Steel, 10 ft.
• Finish: Grade 304
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS2SS: 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G132AOS2SS
• Description: Back-to-Back Welded, Stainless Steel, 20 ft.
• Finish: Grade 304
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO1SS: 13/16" x 1-5/8", knock-out, 10'

• Part Number: G132KO1SS
• Description: Stainless Steel, 10'
• Finish: Grade 304
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO2SS: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G132KO2SS
• Description: Stainless Steel, 20'
• Finish: Grade 304
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1321SS(316): 13/16" x 1-5/8", solid, 10'

• Part Number: G1321SS(316)
• Description: Stainless Steel, 10'
• Finish: Grade 316
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1322SS(316): 13/16" x 1-5/8", solid, 20'

• Part Number: G1322SS(316)
• Description: Stainless Steel, 20'
• Finish: Grade 316
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H1SS(316): 13/16" x 1-5/8", hole, 10'

• Part Number: G132H1SS(316)
• Description: Stainless Steel, 10'
• Finish: Grade 316
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H2SS(316): 13/16" x 1-5/8", hole, 20'

• Part Number: G132H2SS(316)
• Description: Stainless Steel, 20'
• Finish: Grade 316
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS1SS(316): 13/16" x 1-5/8", oval slot, 10'

• Part Number: G132OS1SS(316)
• UPC: 727431897824
• Description: Stainless Steel, 10'
• Finish: Grade 316
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS2SS(316): 13/16" x 1-5/8", oval slot, 20'

• Part Number: G132OS2SS(316)
• UPC: 727431897862
• Description: Stainless Steel, 20'
• Finish: Grade 316
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS1SS(316): 13/16" x 1-5/8", long slot, 10'

• Part Number: G132LS1SS(316)
• Description: Stainless Steel, 10'
• Finish: Grade 316
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS2SS(316): 13/16" x 1-5/8", long slot, 20'

• Part Number: G132LS2SS(316)
• Description: Stainless Steel, 20'
• Finish: Grade 316
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A1SS(316): 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G132A1SS(316)
• Description: Back-to-Back Welded, Stainless Steel, 10 ft.
• Finish: Grade 316
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A2SS(316): 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G132A2SS(316)
• Description: Back-to-Back Welded, Stainless Steel, 20 ft.
• Finish: Grade 316
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS1SS(316): 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G132AOS1SS(316)
• Description: Back-to-Back Welded, Stainless Steel, 10 ft.
• Finish: Grade 316
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS2SS(316): 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G132AOS2SS(316)
• Description: Back-to-Back Welded, Stainless Steel, 20 ft.
• Finish: Grade 316
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO1SS(316): 13/16" x 1-5/8", knock-out, 10'

• Part Number: G132KO1SS(316)
• Description: Stainless Steel, 10'
• Finish: Grade 316
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO2SS(316): 13/16" x 1-5/8", knock-out, 20'

• Part Number: G132KO2SS(316)
• Description: Stainless Steel, 20'
• Finish: Grade 316
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1321YZ: 13/16" x 1-5/8", solid, 10'

• Part Number: G1321YZ
• UPC: 727431897497
• Description: Gregory Gold, Yellow Zinc Dichromate, 10'
• Finish: Yellow Zinc
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1322YZ: 13/16" x 1-5/8", solid, 20'

• Part Number: G1322YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 20'
• Finish: Yellow Zinc
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1321GN: 13/16" x 1-5/8", solid, 10'

• Part Number: G1321GN
• UPC: 727431897480
• Description: Galvannealed, WIZcoat, 10'
• Finish: Galvanneal
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1322GN: 13/16" x 1-5/8", solid, 20'

• Part Number: G1322GN
• UPC: 727431897503
• Description: Galvannealed, WIZcoat, 20'
• Finish: Galvanneal
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1321PO: 13/16" x 1-5/8", solid, 10'

• Part Number: G1321PO
• UPC: 08153810100384
• Description: Plain, Pickled & Oiled, 10'
• Finish: Plain
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1322PO: 13/16" x 1-5/8", solid, 20'

• Part Number: G1322PO
• UPC: 08153810100421
• Description: Plain, Pickled & Oiled, 20'
• Finish: Plain
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1321HDG: 13/16" x 1-5/8", solid, 10'

• Part Number: G1321HDG
• UPC: 08153810100377
• Description: Hot-dipped Galvanized, 10'
• Finish: Hot Dip Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1322HDG: 13/16" x 1-5/8", solid, 20'

• Part Number: G1322HDG
• UPC: 08153810100414
• Description: Hot-dipped Galvanized, 20'
• Finish: Hot Dip Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1321PVC: 13/16" x 1-5/8", solid, 10'

• Part Number: G1321PVC
• Description: PVC Coated, 10'
• Finish: PVC
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1322PVC: 13/16" x 1-5/8", solid, 20'

• Part Number: G1322PVC
• Description: PVC Coated, 20'
• Finish: PVC
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H1YZ: 13/16" x 1-5/8", hole, 10'

• Part Number: G132H1YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 10'
• Finish: Yellow Zinc
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H2YZ: 13/16" x 1-5/8", hole, 20'

• Part Number: G132H2YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 20'
• Finish: Yellow Zinc
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS1YZ: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G132OS1YZ
• UPC: 08153810100582
• Description: Gregory Gold, Yellow Zinc Dichromate, 10'
• Finish: Yellow Zinc
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS2YZ: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G132OS2YZ
• UPC: 727431897879
• Description: Gregory Gold, Yellow Zinc Dichromate, 20'
• Finish: Yellow Zinc
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS1YZ: 13/16" x 1-5/8", long slot, 10'

• Part Number: G132LS1YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 10'
• Finish: Yellow Zinc
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS2YZ: 13/16" x 1-5/8", long slot, 20'

• Part Number: G132LS2YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 20'
• Finish: Yellow Zinc
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A1YZ: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G132A1YZ
• Description: Back-to-Back Welded, Yellow Zinc Dichromate, 10 ft.
• Finish: Yellow Zinc
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A2YZ: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G132A2YZ
• Description: Back-to-Back Welded, Yellow Zinc Dichromate, 20 ft.
• Finish: Yellow Zinc
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS1YZ: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G132AOS1YZ
• Description: Back-to-Back Welded, Yellow Zinc Dichromate, 10 ft.
• Finish: Yellow Zinc
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS2YZ: 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G132AOS2YZ
• Description: Back-to-Back Welded, Yellow Zinc Dichromate, 20 ft.
• Finish: Yellow Zinc
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO1YZ: 13/16" x 1-5/8", knock-out, 10'

• Part Number: G132KO1YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 10'
• Finish: Yellow Zinc
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO2YZ: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G132KO2YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 20'
• Finish: Yellow Zinc
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H1GN: 13/16" x 1-5/8", hole, 10'

• Part Number: G132H1GN
• Description: Galvannealed, WIZcoat, 10'
• Finish: Galvanneal
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H2GN: 13/16" x 1-5/8", hole, 20'

• Part Number: G132H2GN
• Description: Galvannealed, WIZcoat, 20'
• Finish: Galvanneal
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS1GN: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G132OS1GN
• UPC: 08153810100551
• Description: Galvannealed, WIZcoat, 10'
• Finish: Galvanneal
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS2GN: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G132OS2GN
• Description: Galvannealed, WIZcoat, 20'
• Finish: Galvanneal
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS1GN: 13/16" x 1-5/8", long slot, 10'

• Part Number: G132LS1GN
• UPC: 727431897749
• Description: Galvannealed, WIZcoat, 10'
• Finish: Galvanneal
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS2GN: 13/16" x 1-5/8", long slot, 20'

• Part Number: G132LS2GN
• Description: Galvannealed, WIZcoat, 20'
• Finish: Galvanneal
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A1GN: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G132A1GN
• Description: Back-to-Back Welded, Galvannealed WIZcoat, 10 ft.
• Finish: Galvanneal
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A2GN: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G132A2GN
• UPC: 727431897602
• Description: Back-to-Back Welded, Galvannealed WIZcoat, 20 ft.
• Finish: Galvanneal
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS1GN: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G132AOS1GN
• Description: Back-to-Back Welded, Galvannealed WIZcoat, 10 ft.
• Finish: Galvanneal
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS2GN: 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G132AOS2GN
• Description: Back-to-Back Welded, Galvannealed WIZcoat, 20 ft.
• Finish: Galvanneal
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO1GN: 13/16" x 1-5/8", knock-out, 10'

• Part Number: G132KO1GN
• Description: Galvannealed, WIZcoat, 10'
• Finish: Galvanneal
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO2GN: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G132KO2GN
• Description: Galvannealed, WIZcoat, 20'
• Finish: Galvanneal
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H1PO: 13/16" x 1-5/8", hole, 10'

• Part Number: G132H1PO
• UPC: 08153810100469
• Description: Plain, Pickled & Oiled, 10'
• Finish: Plain
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H2PO: 13/16" x 1-5/8", hole, 20'

• Part Number: G132H2PO
• Description: Plain, Pickled & Oiled, 20'
• Finish: Plain
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS1PO: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G132OS1PO
• UPC: 08153810100575
• Description: Plain, Pickled & Oiled, 10'
• Finish: Plain
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS2PO: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G132OS2PO
• UPC: 08153810100599
• Description: Plain, Pickled & Oiled, 20'
• Finish: Plain
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS1PO: 13/16" x 1-5/8", long slot, 10'

• Part Number: G132LS1PO
• UPC: 08153810100520
• Description: Plain, Pickled & Oiled, 10'
• Finish: Plain
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS2PO: 13/16" x 1-5/8", long slot, 20'

• Part Number: G132LS2PO
• UPC: 727431897756
• Description: Plain, Pickled & Oiled, 20'
• Finish: Plain
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A1PO: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G132A1PO
• Description: Back-to-Back Welded, Plain, Pickled and Oiled, 10 ft.
• Finish: Plain
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A2PO: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G132A2PO
• Description: Back-to-Back Welded, Plain, Pickled and Oiled, 20 ft.
• Finish: Plain
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS1PO: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G132AOS1PO
• Description: Back-to-Back Welded, Plain, Pickled and Oiled, 10 ft.
• Finish: Plain
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS2PO: 1-5/8" x 1-5/8", oval slot, 20'

• Part Number: G132AOS2PO
• Description: Back-to-Back Welded, Plain, Pickled and Oiled, 20 ft.
• Finish: Plain
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO1PO: 13/16" x 1-5/8", knock-out, 10'

• Part Number: G132KO1PO
• Description: Plain, Pickled & Oiled, 10'
• Finish: Plain
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO2PO: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G132KO2PO
• Description: Plain, Pickled & Oiled, 20'
• Finish: Plain
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H1HDG: 13/16" x 1-5/8", hole, 10'

• Part Number: G132H1HDG
• Description: Hot-dipped Galvanized, 10'
• Finish: Hot Dip Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H2HDG: 13/16" x 1-5/8", hole, 20'

• Part Number: G132H2HDG
• Description: Hot-dipped Galvanized, 20'
• Finish: Hot Dip Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS1HDG: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G132OS1HDG
• UPC: 08153810100568
• Description: Hot-dipped Galvanized, 10'
• Finish: Hot Dip Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS2HDG: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G132OS2HDG
• UPC: 727431897848
• Description: Hot-dipped Galvanized, 20'
• Finish: Hot Dip Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS1HDG: 13/16" x 1-5/8", long slot, 10'

• Part Number: G132LS1HDG
• Description: Hot-dipped Galvanized, 10'
• Finish: Hot Dip Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS2HDG: 13/16" x 1-5/8", long slot, 20'

• Part Number: G132LS2HDG
• Description: Hot-dipped Galvanized, 20'
• Finish: Hot Dip Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A1HDG: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G132A1HDG
• Description: Back-to-Back Welded, Hot-dipped Galvanized, 10 ft.
• Finish: Hot Dip Galvanized
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A2HDG: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G132A2HDG
• Description: Back-to-Back Welded, Hot-dipped Galvanized, 20 ft.
• Finish: Hot Dip Galvanized
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS1HDG: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G132AOS1HDG
• Description: Back-to-Back Welded, Hot-dipped Galvanized, 10 ft.
• Finish: Hot Dip Galvanized
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS2HDG: 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G132AOS2HDG
• Description: Back-to-Back Welded, Hot-dipped Galvanized, 20 ft.
• Finish: Hot Dip Galvanized
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO1HDG: 13/16" x 1-5/8", knock-out, 10'

• Part Number: G132KO1HDG
• Description: Hot-dipped Galvanized, 10'
• Finish: Hot Dip Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO2HDG: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G132KO2HDG
• Description: Hot-dipped Galvanized, 20'
• Finish: Hot Dip Galvanized
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1321AL: 13/16" x 1-5/8", solid, 10'

• Part Number: G1321AL
• UPC: 727431897473
• Description: Aluminum Extruded, 10'
• Finish: Aluminum
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1322AL: 13/16" x 1-5/8", solid, 20'

• Part Number: G1322AL
• Description: Aluminum Extruded, 20'
• Finish: Aluminum
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H1AL: 13/16" x 1-5/8", hole, 10'

• Part Number: G132H1AL
• UPC: 08153810100452
• Description: Aluminum Extruded, 10'
• Finish: Aluminum
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H2AL: 13/16" x 1-5/8", hole, 20'

• Part Number: G132H2AL
• Description: Aluminum Extruded, 20'
• Finish: Aluminum
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS1AL: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G132OS1AL
• UPC: 727431897800
• Description: Aluminum Extruded, 10'
• Finish: Aluminum
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS2AL: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G132OS2AL
• Description: Aluminum Extruded, 20'
• Finish: Aluminum
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS1AL: 13/16" x 1-5/8", long slot, 10'

• Part Number: G132LS1AL
• Description: Aluminum Extruded, 10'
• Finish: Aluminum
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS2AL: 13/16" x 1-5/8", long slot, 20'

• Part Number: G132LS2AL
• Description: Aluminum Extruded, 20'
• Finish: Aluminum
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A1AL: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G132A1AL
• Description: Back-to-Back Welded, Aluminum Extruded, 10 ft.
• Finish: Aluminum
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A2AL: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G132A2AL
• Description: Back-to-Back Welded, Aluminum Extruded, 20 ft.
• Finish: Aluminum
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS1AL: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G132AOS1AL
• Description: Back-to-Back Welded, Aluminum Extruded, 10 ft.
• Finish: Aluminum
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS2AL: 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G132AOS2AL
• Description: Back-to-Back Welded, Aluminum Extruded, 20 ft.
• Finish: Aluminum
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO1AL: 13/16" x 1-5/8", knock-out, 10'

• Part Number: G132KO1AL
• Description: Aluminum Extruded, 10'
• Finish: Aluminum
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO2AL: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G132KO2AL
• Description: Aluminum Extruded, 20'
• Finish: Aluminum
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H1PVC: 13/16" x 1-5/8", hole, 10'

• Part Number: G132H1PVC
• Description: PVC Coated, 10'
• Finish: PVC
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132H2PVC: 13/16" x 1-5/8", hole, 20'

• Part Number: G132H2PVC
• Description: PVC Coated, 20'
• Finish: PVC
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS1PVC: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G132OS1PVC
• Description: PVC Coated, 10'
• Finish: PVC
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132OS2PVC: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G132OS2PVC
• Description: PVC Coated, 20'
• Finish: PVC
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS1PVC: 13/16" x 1-5/8", long slot, 10'

• Part Number: G132LS1PVC
• Description: PVC Coated, 10'
• Finish: PVC
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132LS2PVC: 13/16" x 1-5/8", long slot, 20'

• Part Number: G132LS2PVC
• Description: PVC Coated, 20'
• Finish: PVC
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A1PVC: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G132A1PVC
• Description: Back-to-Back Welded, PVC Coated, 10 ft.
• Finish: PVC
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132A2PVC: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G132A2PVC
• Description: Back-to-Back Welded, PVC Coated, 20 ft.
• Finish: PVC
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS1PVC: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G132AOS1PVC
• Description: Back-to-Back Welded, PVC Coated, 10 ft.
• Finish: PVC
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132AOS2PVC: 1-5/8" x 1-5/8", B2B, oval slort, 20'

• Part Number: G132AOS2PVC
• Description: Back-to-Back Welded, PVC Coated, 20 ft.
• Finish: PVC
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO1PVC: 13/16" x 1-5/8", knock-out, 10'

• Part Number: G132KO1PVC
• Description: PVC Coated, 10'
• Finish: PVC
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO2PVC: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G132KO2PVC
• Description: PVC Coated, 20'
• Finish: PVC
• Gauge: 12 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request
