134 Series (14 Gauge)

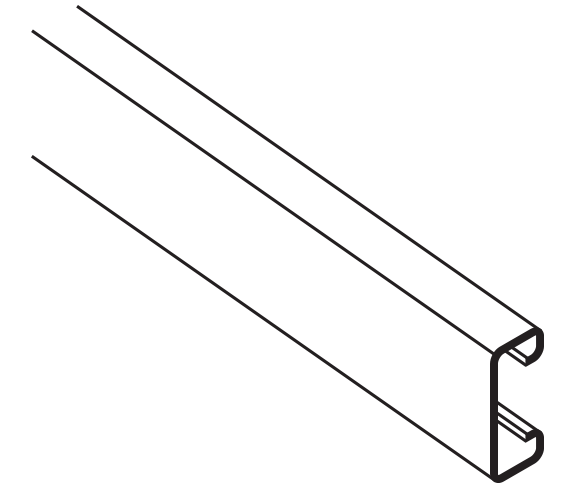

G1341: 13/16" x 1-5/8", solid, 10'

• Part Number: G1341
• UPC: 08153810100605
• Description: Solid, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1342: 13/16" x 1-5/8", solid, 20'

• Part Number: G1342
• UPC: 08153810100698
• Description: Solid, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

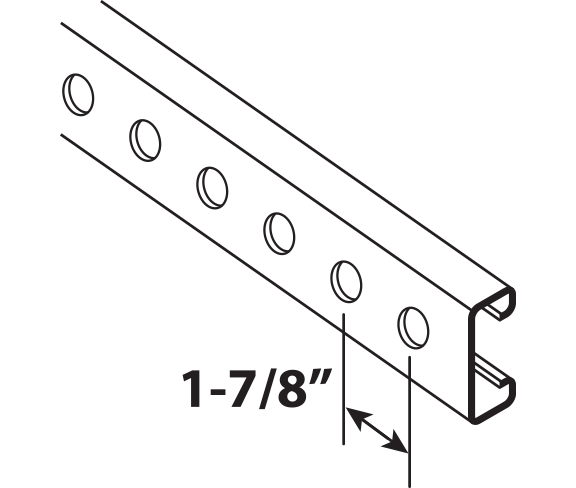

G134H1: 13/16" x 1-5/8", hole, 10'

• Part Number: G134H1
• UPC: 08153810100759
• Description: With 9/16 in. Hole, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134H2: 13/16" x 1-5/8", hole, 20'

• Part Number: G134H2
• UPC: 08153810100797
• Description: With 9/16 in. Hole, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

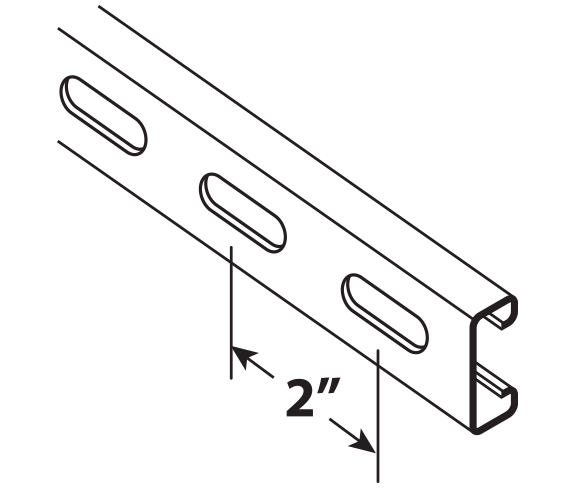

G134OS1: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G134OS1
• UPC: 08153810100056
• Description: With 9/16 in. x 1-1/8 in. Slot, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS2: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G134OS2
• UPC: 08153810100070
• Description: With 9/16 in. x 1-1/8 in. Slot, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

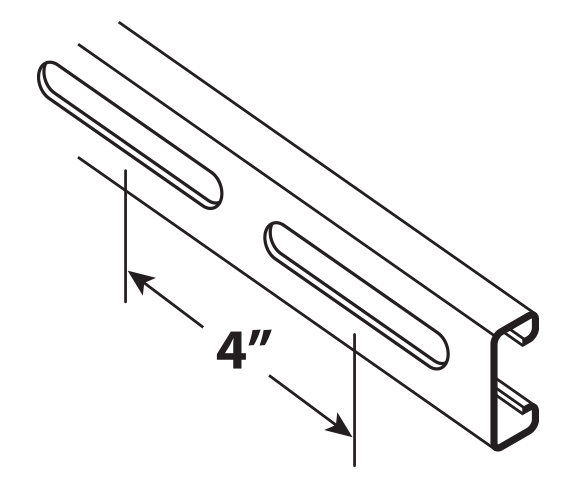

G134LS1: 13/16" x 1-5/8", long slot, 10'

• Part Number: G134LS1
• UPC: 08153810100803
• Description: With 13/32 in. x 3 in. Slot, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS2: 13/16" x 1-5/8", long slot, 20'

• Part Number: G134LS2
• UPC: 08153810100841
• Description: With 13/32 in. x 3 in. Slot, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A1: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G134A1
• UPC: 08153810101015
• Description: Back-to-Back Welded, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 202

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A2: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G134A2
• UPC: 08153810101022
• Description: Back-to-Back Welded, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 202

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS1: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G134AOS1
• UPC: 08153810101039
• Description: Back-to-Back Welded, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 202

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS2: 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G134AOS2
• UPC: 08153810101053
• Description: Back-to-Back Welded, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 202

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

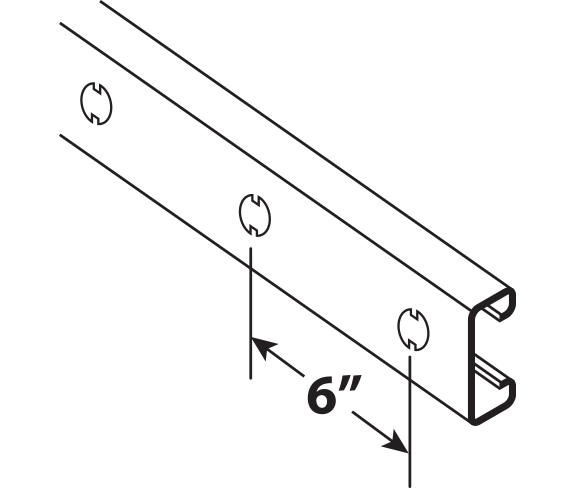

G134KO1: 13/16" x 1-5/8", knock-out, 10'

• Part Number: G134KO1
• Description: With 9/16 in. Knock-out, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO2: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G134KO2
• Description: With 9/16 in. Knock-out, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1341POP: 13/16" x 1-5/8", solid, 10'

• Part Number: G1341POP
• UPC: 08153810100650
• Description: Solid, 10 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1342POP: 13/16" x 1-5/8", solid, 20'

• Part Number: G1342POP
• UPC: 08153810100735
• Description: Solid, 20 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134H1POP: 13/16" x 1-5/8", hole, 10'

• Part Number: G134H1POP
• UPC: 08153810100773
• Description: With 9/16 in. Hole, 10 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134H2POP: 13/16" x 1-5/8", hole, 20'

• Part Number: G134H2POP
• Description: With 9/16 in. Hole, 20 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS1POP: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G134OS1POP
• UPC: 08153810100063
• Description: With 9/16 in. x 1-1/8 in. Slot, 10 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS2POP: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G134OS2POP
• UPC: 08153810100087
• Description: With 9/16 in. x 1-1/8 in. Slot, 20 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS1POP: 13/16" x 1-5/8", long slot, 10'

• Part Number: G134LS1POP
• UPC: 08153810100834
• Description: With 13/32 in. x 3 in. Slot, 10 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS2POP: 13/16" x 1-5/8", long slot, 20'

• Part Number: G134LS2POP
• UPC: 08153810100865
• Description: With 13/32 in. x 3 in. Slot, 20 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A1POP: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G134A1POP
• UPC: 727431898012
• Description: Back-to-Back Welded, 10 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 202

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A2POP: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G134A2POP
• UPC: 727431898043
• Description: Back-to-Back Welded, 20 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 202

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS1POP: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G134AOS1POP
• UPC: 08153810101046
• Description: Back-to-Back Welded, 10 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 202

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS2POP: 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G134AOS2POP
• UPC: 727431898111
• Description: Back-to-Back Welded, 20 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 202

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO1POP: 13/16" x 1-5/8", knock-out, 10'

• Part Number: G134KO1POP
• Description: With 7/8 in. Knock-out, 10 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G132KO2POP: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G134KO2POP
• Description: With 7/8 in. Knock-out, 20 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: 500
• Weight (per 100): 101

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1341SS: 13/16" x 1-5/8", solid , 10'

• Part Number: G1341SS
• UPC: 08153810100667
• Description: Stainless Steel (Grade 304 or 316), 10'
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1342SS: 13/16" x 1-5/8", solid, 20'

• Part Number: G1342SS
• UPC: 08153810100742
• Description: Stainless Steel, 20'
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134H1SS: 13/16" x 1-5/8", hole, 10'

• Part Number: G134H1SS
• Description: Stainless Steel, 10'
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134H2SS: 13/16" x 1-5/8", hole, 20'

• Part Number: G134H2SS
• Description: Stainless Steel, 20'
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"

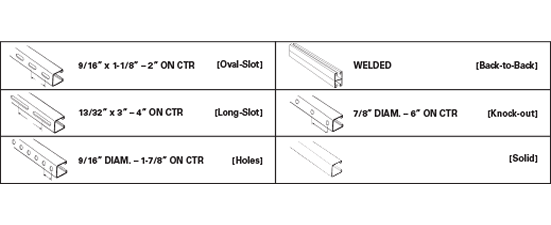

• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS1SS: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G134OS1SS
• UPC: 08153810100919
• Description: Stainless Steel, 10'
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS2SS: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G134OS2SS
• UPC: 08153810100988
• Description: Stainless Steel, 20'
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS1SS: 13/16" x 1-5/8", long slot, 10'

• Part Number: G134LS1SS
• UPC: 727431898180
• Description: Stainless Steel, 10'
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS2SS: 13/16" x 1-5/8", long slot, 20'

• Part Number: G134LS2SS
• Description: Stainless Steel, 20'
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A1SS: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G134A1SS
• UPC: 727431898029
• Description: Back-to-Back Welded, Stainless Steel, 10 ft.
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A2SS: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G134A2SS
• UPC: 727431898050
• Description: Back-to-Back Welded, Stainless Steel, 20 ft.
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS1SS: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G134AOS1SS
• Description: Back-to-Back Welded, Stainless Steel, 10 ft.
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS2SS: 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G134AOS2SS
• Description: Back-to-Back Welded, Stainless Steel, 20 ft.
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO1SS: 13/16" x 1-5/8", knock-out, 10'

• Part Number: G134KO1SS
• Description: Stainless Steel, 10'
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO2SS: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G134KO2SS
• Description: Stainless Steel, 20'
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1341SS(316): 13/16" x 1-5/8", solid, 10'

• Part Number: G1341SS(316)
• UPC: 08153810100674
• Description: Stainless Steel, 10'
• Finish: Grade 316
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1342SS(316): 13/16" x 1-5/8", solid, 20'

• Part Number: G1342SS(316)
• UPC: 727431897961
• Description: Stainless Steel, 20'
• Finish: Grade 316
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134H1SS(316): 13/16" x 1-5/8", hole, 10'

• Part Number: G134H1SS(316)
• Description: Stainless Steel, 10'
• Finish: Grade 316
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134H2SS(316): 13/16" x 1-5/8", hole, 20'

• Part Number: G134H2SS(316)
• Description: Stainless Steel, 20'
• Finish: Grade 316
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS1SS(316): 13/16" x 1-5/8", oval slot, 10'

• Part Number: G134OS1SS(316)
• UPC: 08153810100926
• Description: Stainless Steel, 10'
• Finish: Grade 316
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS2SS(316): 13/16" x 1-5/8", oval slot, 20'

• Part Number: G134OS2SS(316)
• UPC: 08153810100995
• Description: Stainless Steel, 20'
• Finish: Grade 316
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS1SS(316): 13/16" x 1-5/8", long slot, 10'

• Part Number: G134LS1SS(316)
• Description: Stainless Steel, 10'
• Finish: Grade 316
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS2SS(316): 13/16" x 1-5/8", long slot, 20'

• Part Number: G134LS2SS(316)
• Description: Stainless Steel, 20'
• Finish: Grade 316
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A1SS(316): 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G134A1SS(316)
• Description: Back-to-Back Welded, Stainless Steel, 10 ft.
• Finish: Grade 316
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A2SS(316): 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G134A2SS(316)
• Description: Back-to-Back Welded, Stainless Steel, 20 ft.
• Finish: Grade 316
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS1SS(316): 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G134AOS1SS(316)
• Description: Back-to-Back Welded, Stainless Steel, 10 ft.
• Finish: Grade 316
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS2SS(316): 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G134AOS2SS(316)
• Description: Back-to-Back Welded, Stainless Steel, 20 ft.
• Finish: Grade 316
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO1SS(316): 13/16" x 1-5/8", knock-out, 10'

• Part Number: G134KO1SS(316)
• Description: Stainless Steel, 10'
• Finish: Grade 316
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO2SS(316): 13/16" x 1-5/8", knock-out, 20'

• Part Number: G134KO2SS(316)
• Description: Stainless Steel, 20'
• Finish: Grade 316
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1341YZ: 13/16" x 1-5/8", solid, 10'

• Part Number: G1341YZ
• UPC: 08153810100681
• Description: Gregory Gold, Yellow Zinc Dichromate, 10'
• Finish: Yellow Zinc
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1342YZ: 13/16" x 1-5/8", solid, 20'

• Part Number: G1342YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 20'
• Finish: Yellow Zinc
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1341AL: 13/16" x 1-5/8", solid, 10'

• Part Number: G1341AL
• UPC: 08153810100612
• Description: Aluminum Extruded, 10'
• Finish: Aluminum
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1342AL: 13/16" x 1-5/8", solid, 20'

• Part Number: G1342AL
• UPC: 08153810100704
• Description: Aluminum Extruded, 20'
• Finish: Aluminum
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1341GN: 13/16" x 1-5/8", solid, 10'

• Part Number: G1341GN
• UPC: 08153810100629
• Description: Galvannealed (Wizcoat TM) 10'
• Finish: Galvanneal
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1342GN: 13/16" x 1-5/8", solid, 20'

• Part Number: G1342GN
• UPC: 08153810100711
• Description: Galvannealed (Wizcoat TM) 20'
• Finish: Galvanneal
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1341PO: 13/16" x 1-5/8", solid, 10'

• Part Number: G1341PO
• UPC: 08153810100643
• Description: Plain, Pickled & Oiled, 10'
• Finish: Plain
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1342PO: 13/16" x 1-5/8", solid, 20'

• Part Number: G1342PO
• UPC: 08153810100728
• Description: Plain, Pickled & Oiled, 20'
• Finish: Plain
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1341HDG: 13/16" x 1-5/8", solid, 10'

• Part Number: G1341HDG
• UPC: 08153810100636
• Description: Hot-dipped Galvanized, 10'
• Finish: Hot Dip Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1342HDG: 13/16" x 1-5/8", solid, 20'

• Part Number: G1342HDG
• Description: Hot-dipped Galvanized, 20'
• Finish: Hot Dip Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1341PVC: 13/16" x 1-5/8", solid, 10'

• Part Number: G1341PVC
• Description: PVC Coated (Galvanized or Black), 10'
• Finish: PVC
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1342PVC: 13/16" x 1-5/8", solid, 20'

• Part Number: G1342PVC
• Description: PVC Coated (Galvanized or Black), 20'
• Finish: PVC
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134H1YZ: 13/16" x 1-5/8", hole, 10'

• Part Number: G134H1YZ
• UPC: 08153810100780
• Description: Gregory Gold, Yellow Zinc Dichromate, 10'
• Finish: Yellow Zinc
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134H2YZ: 13/16" x 1-5/8", hole, 20'

• Part Number: G134H2YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 20'
• Finish: Yellow Zinc
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS1YZ: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G134OS1YZ
• UPC: 08153810100933
• Description: Gregory Gold, Yellow Zinc Dichromate, 10'
• Finish: Yellow Zinc
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS2YZ: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G134OS2YZ
• UPC: 08153810101008
• Description: Gregory Gold, Yellow Zinc Dichromate, 20'
• Finish: Yellow Zinc
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS1YZ: 13/16" x 1-5/8", long slot, 10'

• Part Number: G134LS1YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 10'
• Finish: Yellow Zinc
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS2YZ: 13/16" x 1-5/8", long slot, 20'

• Part Number: G134LS2YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 20'
• Finish: Yellow Zinc
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A1YZ: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G134A1YZ
• Description: Back-to-Back Welded, Yellow Zinc Dichromate, 10 ft.
• Finish: Yellow Zinc
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A2YZ: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G134A2YZ
• Description: Back-to-Back Welded, Yellow Zinc Dichromate, 20 ft.
• Finish: Yellow Zinc
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS1YZ: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G134AOS1YZ
• UPC: 727431898098
• Description: Back-to-Back Welded, Yellow Zinc Dichromate, 10 ft.
• Finish: Yellow Zinc
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS2YZ: 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G134AOS2YZ
• Description: Back-to-Back Welded, Yellow Zinc Dichromate, 20 ft.
• Finish: Yellow Zinc
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO1YZ: 13/16" x 1-5/8", knock-out, 10'

• Part Number: G134KO1YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 10'
• Finish: Yellow Zinc
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO2YZ: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G134KO2YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 20'
• Finish: Yellow Zinc
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134H1AL: 13/16" x 1-5/8", hole, 10'

• Part Number: G134H1AL
• UPC: 727431898159
• Description: Aluminum Extruded, 10'
• Finish: Aluminum
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134H2AL: 13/16" x 1-5/8", hole, 20'

• Part Number: G134H2AL
• Description: Aluminum Extruded, 20'
• Finish: Aluminum
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS1AL: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G134OS1AL
• UPC: 08153810100872
• Description: Aluminum Extruded, 10'
• Finish: Aluminum
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS2AL: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G134OS2AL
• UPC: 08153810100940
• Description: Aluminum Extruded, 20'
• Finish: Aluminum
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS1AL: 13/16" x 1-5/8", long slot, 10'

• Part Number: G134LS1AL
• UPC: 08153810100810
• Description: Aluminum Extruded, 10'
• Finish: Aluminum
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS2AL: 13/16" x 1-5/8", long slot, 20'

• Part Number: G134LS2AL
• Description: Aluminum Extruded, 20'
• Finish: Aluminum
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A1AL: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G134A1AL
• Description: Back-to-Back Welded, Aluminum Extruded, 10 ft.
• Finish: Aluminum
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A2AL: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G134A2AL
• Description: Back-to-Back Welded, Aluminum Extruded, 20 ft.
• Finish: Aluminum
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS1AL: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G134AOS1AL
• Description: Back-to-Back Welded, Aluminum Extruded, 10 ft.
• Finish: Aluminum
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS2AL: 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G134AOS2AL
• Description: Back-to-Back Welded, Aluminum Extruded, 20 ft.
• Finish: Aluminum
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO1AL: 13/16" x 1-5/8", knock-out, 10'

• Part Number: G134KO1AL
• Description: Aluminum Extruded, 10'
• Finish: Aluminum
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO2AL: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G134KO2AL
• Description: Aluminum Extruded, 20'
• Finish: Aluminum
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134H1GN: 13/16" x 1-5/8", hole, 10'

• Part Number: G134H1GN
• Description: Galvannealed, WIZcoat, 10'
• Finish: Galvanneal
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134H2GN: 13/16" x 1-5/8", hole, 20'

• Part Number: G134H2GN
• Description: Galvannealed, WIZcoat, 20'
• Finish: Galvanneal
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS1GN: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G134OS1GN
• UPC: 08153810100889
• Description: Galvannealed, WIZcoat, 10'
• Finish: Galvanneal
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS2GN: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G134OS2GN
• UPC: 08153810100957
• Description: Galvannealed, WIZcoat, 10'
• Finish: Galvanneal
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS1GN: 13/16" x 1-5/8", long slot, 10'

• Part Number: G134LS1GN
• Description: Galvannealed, WIZcoat, 10'
• Finish: Galvanneal
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS2GN: 13/16" x 1-5/8", long slot, 20'

• Part Number: G134LS2GN
• Description: Galvannealed, WIZcoat, 20'
• Finish: Galvanneal
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A1GN: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G134A1GN
• UPC: 727431897992
• Description: Back-to-Back Welded, Galvannealed WIZcoat, 10 ft.
• Finish: Galvanneal
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A2GN: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G134A2GN
• Description: Back-to-Back Welded, Galvannealed WIZcoat, 20 ft.
• Finish: Galvanneal
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS1GN: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G134AOS1GN
• Description: Back-to-Back Welded, Galvannealed WIZcoat, 10 ft.
• Finish: Galvanneal
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS2GN: 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G134AOS2GN
• Description: Back-to-Back Welded, Galvannealed WIZcoat, 20 ft.
• Finish: Galvanneal
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO1GN: 13/16" x 1-5/8", knock-out, 10'

• Part Number: G134KO1GN
• Description: Galvannealed, WIZcoat, 10'
• Finish: Galvanneal
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO2GN: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G134KO2GN
• Description: Galvannealed, WIZcoat, 20'
• Finish: Galvanneal
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134H1PO: 13/16" x 1-5/8", hole, 10'

• Part Number: G134H1PO
• UPC: 08153810100766
• Description: Plain, Pickled & Oiled, 10'
• Finish: Plain
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134H2PO: 13/16" x 1-5/8", hole, 20'

• Part Number: G134H2PO
• Description: Plain, Pickled & Oiled, 20'
• Finish: Plain
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS1PO: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G134OS1PO
• UPC: 08153810100902
• Description: Plain, Pickled & Oiled, 10'
• Finish: Plain
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS2PO: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G134OS2PO
• UPC: 08153810100964
• Description: Plain, Pickled & Oiled, 20'
• Finish: Plain
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS1PO: 13/16" x 1-5/8", long slot, 10'

• Part Number: G134LS1PO
• UPC: 08153810100827
• Description: Plain, Pickled & Oiled, 10'
• Finish: Plain
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS2PO: 13/16" x 1-5/8", long slot, 20'

• Part Number: G134LS2PO
• UPC: 08153810100858
• Description: Plain, Pickled & Oiled, 20'
• Finish: Plain
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A1PO: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G134A1PO
• UPC: 727431898005
• Description: Back-to-Back Welded, Plain, Pickled and Oiled, 10 ft.
• Finish: Plain
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A2PO: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G134A2PO
• UPC: 727431898036
• Description: Back-to-Back Welded, Plain, Pickled and Oiled, 20 ft.
• Finish: Plain
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS1PO: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G134AOS1PO
• UPC: 727431898081
• Description: Back-to-Back Welded, Plain, Pickled and Oiled, 10 ft.
• Finish: Plain
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS2PO: 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G134AOS2PO
• UPC: 727431898104
• Description: Plain, Pickled & Oiled, 20'
• Finish: Plain
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO1PO: 13/16" x 1-5/8", knock-out, 10'

• Part Number: G134KO1PO
• Description: Plain, Pickled & Oiled, 10'
• Finish: Plain
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO2PO: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G134KO2PO
• Description: Plain, Pickled & Oiled, 20'
• Finish: Plain
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134H1HDG: 13/16" x 1-5/8", hole, 10'

• Part Number: G134H1HDG
• Description: Hot-dipped Galvanized, 10'
• Finish: Hot Dip Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134H2HDG: 13/16" x 1-5/8", hole, 20'

• Part Number: G134H2HDG
• Description: Hot-dipped Galvanized, 20'
• Finish: Hot Dip Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS1HDG: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G134OS1HDG
• UPC: 08153810100896
• Description: Hot-dipped Galvanized, 10'
• Finish: Hot Dip Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS2HDG: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G134OS2HDG
• UPC: 727431898326
• Description: Hot-dipped Galvanized, 20'
• Finish: Hot Dip Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS1HDG: 13/16" x 1-5/8", long slot, 10'

• Part Number: G134LS1HDG
• UPC: 727431898173
• Description: Hot-dipped Galvanized, 10'
• Finish: Hot Dip Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS2HDG: 13/16" x 1-5/8", long slot, 20'

• Part Number: G134LS2HDG
• Description: Hot-dipped Galvanized, 20'
• Finish: Hot Dip Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A1HDG: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G134A1HDG
• Description: Back-to-Back Welded, Hot-dipped Galvanized, 10 ft.
• Finish: Hot Dip Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A2HDG: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G134A2HDG
• Description: Back-to-Back Welded, Hot-dipped Galvanized, 20 ft.
• Finish: Hot Dip Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS1HDG: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G134AOS1HDG
• UPC: 727431898074
• Description: Back-to-Back Welded, Hot-dipped Galvanized, 10 ft.
• Finish: Hot Dip Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS2HDG: 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G134AOS2HDG
• Description: Back-to-Back Welded, Hot-dipped Galvanized, 20 ft.
• Finish: Hot Dip Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO1HDG: 13/16" x 1-5/8", knock-out, 10'

• Part Number: G134KO1HDG
• Description: Hot-dipped Galvanized, 10'
• Finish: Hot Dip Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO2HDG: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G134KO2HDG
• Description: Hot-dipped Galvanized, 20'
• Finish: Hot Dip Galvanized
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1341PVC: 13/16" x 1-5/8", solid, 10'

• Part Number: G1341PVC
• Description: PVC Coated (Galvanized or Black), 10'
• Finish: PVC
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G1342PVC: 13/16" x 1-5/8", solid, 20'

• Part Number: G1342PVC
• Description: PVC Coated (Galvanized or Black), 20'
• Finish: PVC
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS1PVC: 13/16" x 1-5/8", oval slot, 10'

• Part Number: G134OS1PVC
• UPC: 727431898296
• Description: PVC Coated, 10'
• Finish: PVC
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134OS2PVC: 13/16" x 1-5/8", oval slot, 20'

• Part Number: G134OS2PVC
• UPC: 08153810100971
• Description: PVC Coated, 20'
• Finish: PVC
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS1PVC: 13/16" x 1-5/8", long slot, 10'

• Part Number: G134LS1PVC
• Description: PVC Coated, 10'
• Finish: PVC
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134LS2PVC: 13/16" x 1-5/8", long slot, 20'

• Part Number: G134LS2PVC
• Description: PVC Coated, 20'
• Finish: PVC
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A1PVC: 1-5/8" x 1-5/8", B2B, solid, 10'

• Part Number: G134A1PVC
• Description: Back-to-Back Welded, PVC Coated, 10 ft.
• Finish: PVC
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134A2PVC: 1-5/8" x 1-5/8", B2B, solid, 20'

• Part Number: G134A2PVC
• Description: Back-to-Back Welded, PVC Coated, 20 ft.
• Finish: PVC
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS1PVC: 1-5/8" x 1-5/8", B2B, oval slot, 10'

• Part Number: G134AOS1PVC
• Description: PVC Coated, 10'
• Finish: PVC
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134AOS2PVC: 1-5/8" x 1-5/8", B2B, oval slot, 20'

• Part Number: G134AOS2PVC
• Description: Back-to-Back Welded, PVC Coated, 20 ft.
• Finish: PVC
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO1PVC: 13/16" x1-5/8", knock-out, 10'

• Part Number: G134KO1PVC
• Description: PVC Coated, 10'
• Finish: PVC
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G134KO2PVC: 13/16" x 1-5/8", knock-out, 20'

• Part Number: G134KO2PVC
• Description: PVC Coated, 20'
• Finish: PVC
• Gauge: 14 g
• Dimensions: 13/16" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request
