584 Series (14 Gauge)

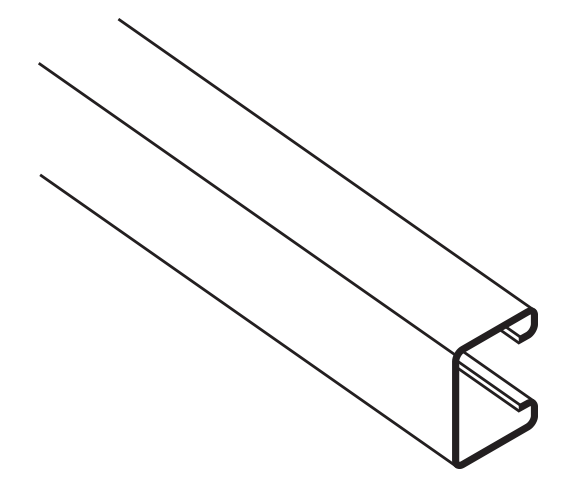

G5841: 1-5/8" x 1-5/8", solid, 10'

• Part Number: G5841
• UPC: 08153810103767
• Description: Solid, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G5842: 1-5/8" x 1-5/8", solid, 20'

• Part Number: G5842
• UPC: 08153810103798
• Description: Solid, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

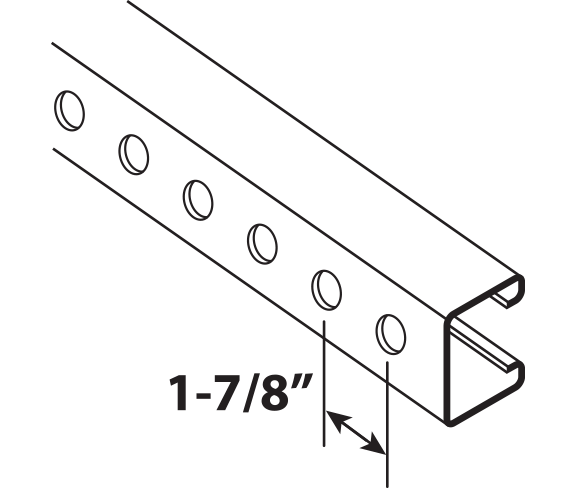

G584H1: 1-5/8" x 1-5/8", hole, 10'

• Part Number: G584H1
• UPC: 08153810103828
• Description: With 9/16 in. Hole, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584H2: 1-5/8" x 1-5/8", hole, 20'

• Part Number: G584H2
• UPC: 08153810103835
• Description: With 9/16 in. Hole, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

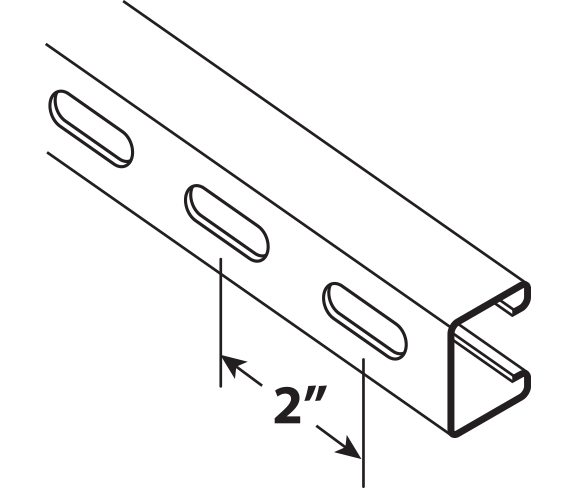

G584OS1: 1-5/8" x 1-5/8", oval slot, 10'

• Part Number: G584OS1
• UPC: 08153810100155
• Description: With 9/16 in. x 1-1/8 in. Slot, 10 ft
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584OS2: 1-5/8" x 1-5/8", oval slot, 20'

• Part Number: G584OS2
• UPC: 08153810100179
• Description: With 9/16 in. x 1-1/8 in. Slot, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

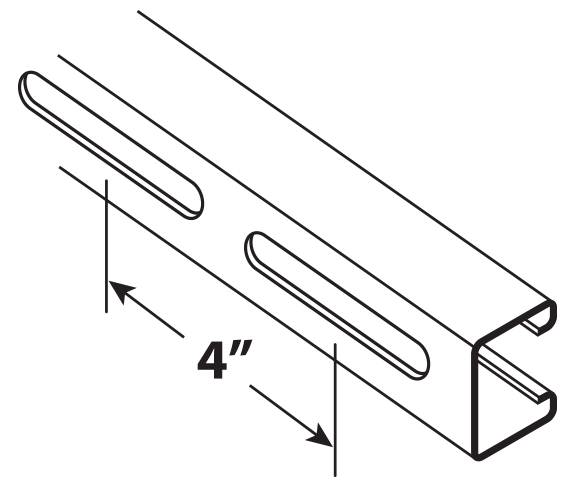

G584LS1: 1-5/8" x 1-5/8", long slot, 10'

• Part Number: G584LS1
• UPC: 08153810103842
• Description: With 13/32 in. x 3 in. Slot, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584LS2: 1-5/8" x 1-5/8", long slot, 20'

• Part Number: G584LS2
• UPC: 08153810103873
• Description: With 13/32 in. x 3 in. Slot, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

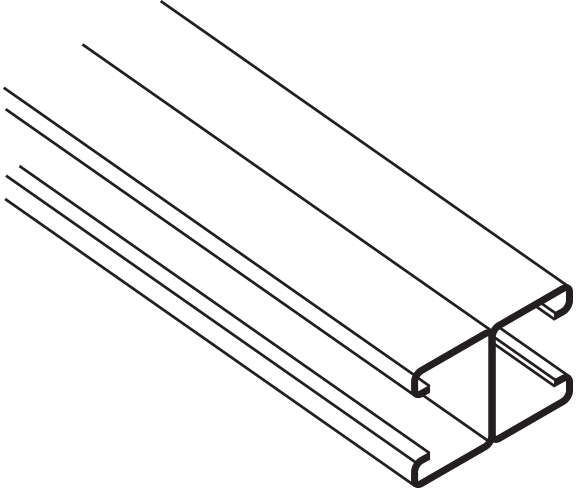

G584A1: 3-1/4" x 1-5/8", solid, B2B, 10'

• Part Number: G584A1
• UPC: 727431906014
• Description: Back-to-Back Welded, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 280

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584A2: 3-1/4" x 1-5/8", solid, B2B, 20'

• Part Number: G584A2
• UPC: 08153810103972
• Description: Back-to-Back Welded, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 280

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584AOS1: 3-1/4" x 1-5/8", B2B, oval slot, 10'

• Part Number: G584AOS1
• UPC: 08153810103989
• Description: Back-to-Back Welded, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 280

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584AOS2: 3-1/4" x 1-5/8", B2B, oval slot, 20'

• Part Number: G584AOS2
• UPC: 08153810103996
• Description: Back-to-Back Welded, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 280

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

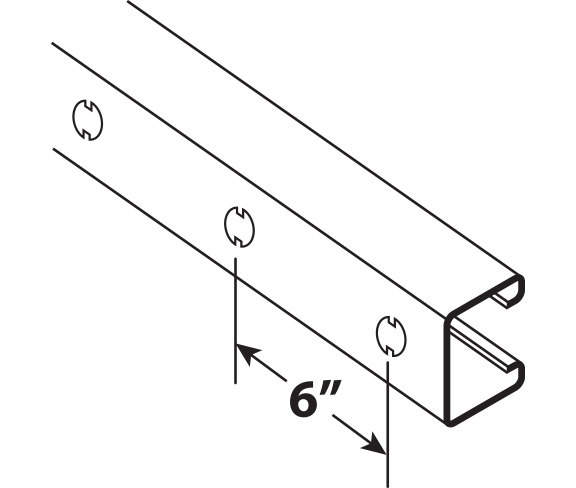

G584KO1: 1-5/8" x 1-5/8", knock-out, 10'

• Part Number: G584KO1
• Description: With 9/16 in. Knock-out, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584KO2: 1-5/8" x 1-5/8", knock-out, 20'

• Part Number: G584KO2
• UPC: 727431906168
• Description: With 9/16 in. Knock-out, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G5841POP: 1-5/8" x 1-5/8", solid, 10'

• Part Number: G5841POP
• UPC: 08153810103781
• Description: Solid, 10 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G5842POP: 1-5/8" x 1-5/8", solid, 20'

• Part Number: G5842POP
• UPC: 08153810103811
• Description: Solid, 20 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584H1POP: 1-5/8" x 1-5/8", hole, 10'

• Part Number: G584H1POP
• UPC: 727431906144
• Description: With 9/16 in. Hole, 10 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584H2POP: 1-5/8" x 1-5/8", hole, 20'

• Part Number: G584H2POP
• Description: With 9/16 in. Hole, 20 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584OS1POP: 1-5/8" x 1-5/8", oval slot, 10'

• Part Number: G584OS1POP
• UPC: 08153810100162
• Description: With 9/16 in. x 1-1/8 in. Slot, 10 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584OS2POP: 1-5/8" x 1-5/8", oval slot, 20'

• Part Number: G584OS2POP
• UPC: 08153810100186
• Description: With 9/16 in. x 1-1/8 in. Slot, 20 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584LS1POP: 1-5/8" x 1-5/8", long slot, 10'

• Part Number: G584LS1POP
• UPC: 08153810103866
• Description: With 13/32 in. x 3 in. Slot, 10 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584LS2POP: 1-5/8" x 1-5/8", long slot, 20'

• Part Number: G584LS2POP
• UPC: 08153810103897
• Description: With 13/32 in. x 3 in. Slot, 20 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584A1POP: 3-1/4" x 1-5/8", solid, B2B, 10'

• Part Number: G584A1POP
• UPC: 08153810103965
• Description: Back-to-Back Welded, 10 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 280

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584A2POP: 3-1/4" x 1-5/8", solid, B2B, 20'

• Part Number: G584A2POP
• UPC: 727431906069
• Description: Back-to-Back Welded, 20 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 500
• Weight (per 100): 280

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584KO1POP: 1-5/8" x 1-5/8", knock-out, 10'

• Part Number: G584KO1POP
• Description: With 7/8 in Knock-out, 10 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584KO2POP: 1-5/8" x 1-5/8", knock-out, 20'

• Part Number: G584KO2POP
• UPC: 727431906175
• Description: With 7/8 in Knock-out, 20 ft.
• Finish: Green
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: 500
• Weight (per 100): 140

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G5841SS: 1-5/8" x 1-5/8", solid, 10'

• Part Number: G5841SS
• UPC: 727431906007
• Description: Stainless Steel, 10'
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G5842SS: 1-5/8" x 1-5/8", solid, 20'

• Part Number: G5842SS
• Description: Stainless Steel, 20'
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584OS1SS: 1-5/8" x 1-5/8", oval slot, 10'

• Part Number: G584OS1SS
• UPC: 08153810108762
• Description: Stainless Steel, 10'
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G584OS2SS: 1-5/8" x 1-5/8", oval slot, 20'

• Part Number: G584OS2SS
• UPC: 727431906250
• Description: Stainless Steel, 20'
• Finish: Grade 304
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G5841YZ: 1-5/8" x 1-5/8"

• Part Number: G5841YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 10'
• Finish: Yellow Zinc
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Customer Choice
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G5842YZ: 1-5/8" x 1-5/8"

• Part Number: G5842YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 20'
• Finish: Yellow Zinc
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"

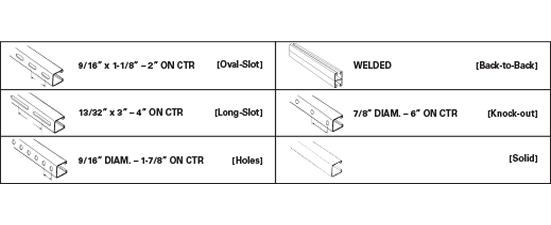

• Slot Type: Customer Choice
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G5841GN: 1-5/8" x 1-5/8"

• Part Number: G5841GN
• Description: Galvannealed, WIZcoat, 10'
• Finish: Galvanneal
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Customer Choice
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G5842GN: 1-5/8" x 1-5/8"

• Part Number: G5842GN
• Description: Galvannealed, WIZcoat, 20'
• Finish: Galvanneal
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Customer Choice
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G5841PO: 1-5/8" x 1-5/8"

• Part Number: G5841PO
• UPC: 08153810103774
• Description: Plan, Pickled & Oiled, 10'
• Finish: Plain
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Customer Choice
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G5842PO: 1-5/8" x 1-5/8"

• Part Number: G5842PO
• UPC: 08153810103804
• Description: Plan, Pickled & Oiled, 20'
• Finish: Plain
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Customer Choice
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G5841HDG: 1-5/8" x 1-5/8"

• Part Number: G5841HDG
• Description: Hot-dipped Galvanized, 10'
• Finish: Hot Dip Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Customer Choice
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G5842HDG: 1-5/8" x 1-5/8"

• Part Number: G5842HDG
• Description: Hot-dipped Galvanized, 20'
• Finish: Hot Dip Galvanized
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Customer Choice
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G5841PVC: 1-5/8" x 1-5/8"

• Part Number: G5841PVC
• Description: PVC Coated, 10'
• Finish: PVC
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Customer Choice
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G5842PVC: 1-5/8" x 1-5/8"

• Part Number: G5842PVC
• Description: PVC Coated, 20'
• Finish: PVC
• Gauge: 14 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: Customer Choice
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request
