712 dimensionsslotholes

Weight is pounds/100 pieces.

For a custom order or hard-to-find part, please request it through our contact form.

CONTACT US

Pre-Galvanized

PART # DESCRIPTION DIMENSION FINISH G. LIST
PRICE
DIST
PPD
DIST
1/4T
DIST
1/2T
DIST
FULL

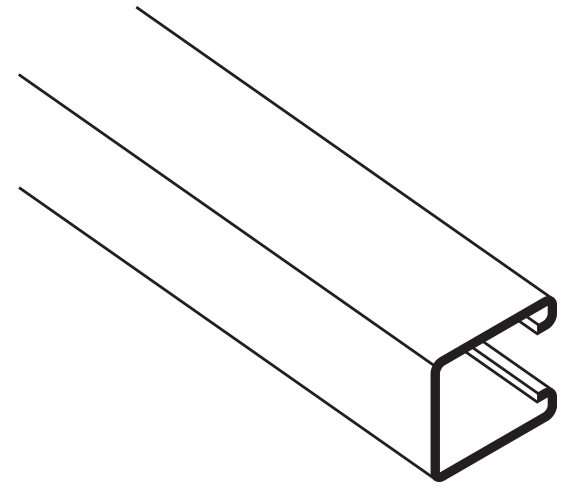

G7121 Solid, 10 ft. 2-7/16'' x 1-5/8'' Pre-Galvanized 12 g $1,000.00 N/A N/A N/A N/A
G7122 Solid, 20 ft. 2-7/16'' x 1-5/8'' Pre-Galvanized 12 g $1,000.00 N/A N/A N/A N/A

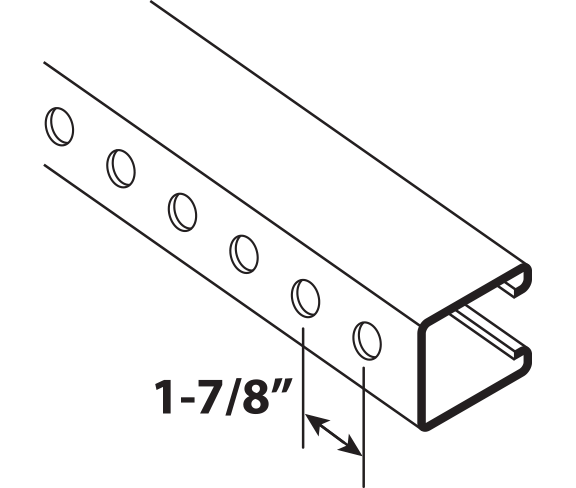

G712H1 With 9/16 in Hole, 10 ft. 2-7/16'' x 1-5/8'' Pre-Galvanized 12 g $1,000.00 N/A N/A N/A N/A
G712H2 With 9/16 in Hole, 20 ft. 2-7/16'' x 1-5/8'' Pre-Galvanized 12 g $1,000.00 N/A N/A N/A N/A

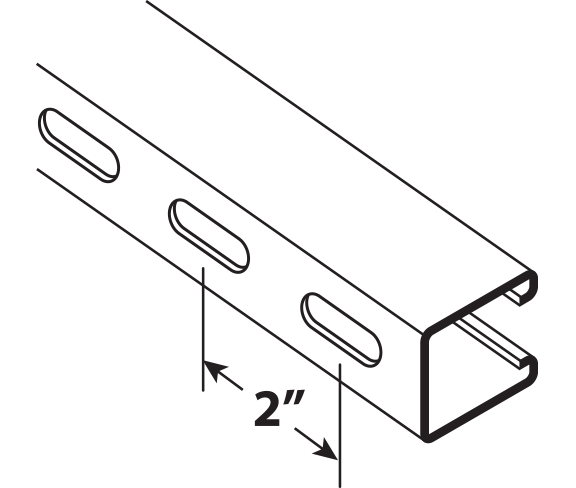

G712OS1 With 9/16 in x 1-1/8 in Slot, 10 ft 2-7/16'' x 1-5/8'' Pre-Galvanized 12 g $1,000.00 N/A N/A N/A N/A
G712OS2 With 9/16 in x 1-1/8 in Slot, 20 ft 2-7/16'' x 1-5/8'' Pre-Galvanized 12 g $1,000.00 N/A N/A N/A N/A

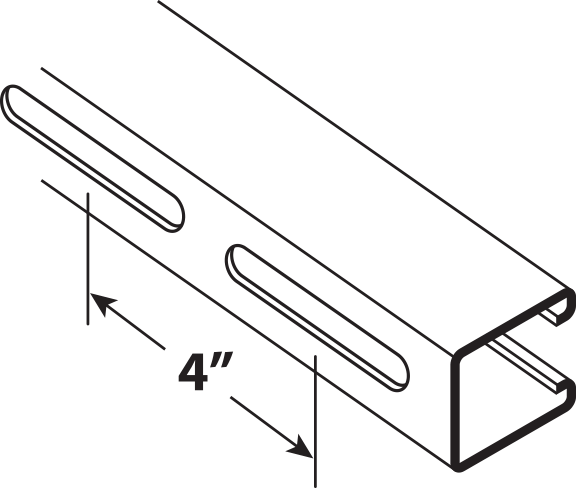

G712LS1 With 13/32 in x 3 in Slot, 10 ft. 2-7/16'' x 1-5/8'' Pre-Galvanized 12 g $1,000.00 N/A N/A N/A N/A
G712LS2 With 13/32 in x 3 in Slot, 20 ft. 2-7/16'' x 1-5/8'' Pre-Galvanized 12 g $1,000.00 N/A N/A N/A N/A
G712A1 Back-to-Back Welded, 10 ft. 4-7/8'' x 1-5/8'' Pre-Galvanized 12 g $2,050.00 N/A N/A N/A N/A
G712A2 Back-to-Back Welded, 20 ft. 4-7/8'' x 1-5/8'' Pre-Galvanized 12 g $2,050.00 N/A N/A N/A N/A

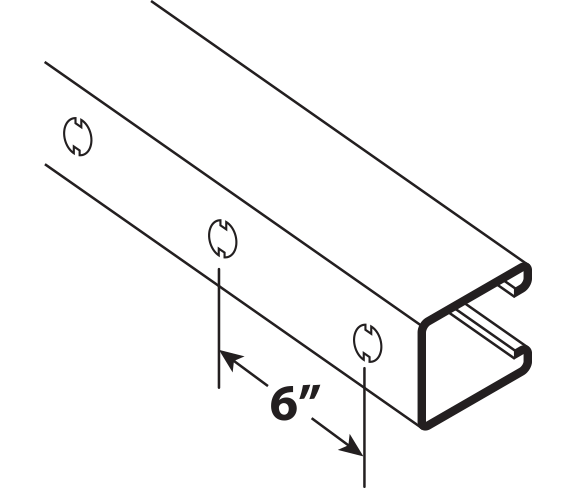

G712K01 With 9/16 in Knock-out, 10 ft. 2-7/16'' x 1-5/8'' Pre-Galvanized 12 g $1,500.00 N/A N/A N/A N/A
G712K02 With 9/16 in Knock-out, 20 ft. 2-7/16'' x 1-5/8'' Pre-Galvanized 12 g $1,500.00 N/A N/A N/A N/A
G712AOS1 Back-to-Back Welded, 10 ft. 4-7/8' x 1-5/8' Pre-Galvanized 12 g $0.00 N/A N/A N/A N/A
G712AOS2 Back-to-Back Welded, 20 ft. 4-7/8' x 1-5/8' Pre-Galvanized 12 g $0.00 N/A N/A N/A N/A

Green

PART #

DESCRIPTION

DIMENSION

FINISH

G.

LIST
PRICE

DIST
PPD

DIST
1/4T

DIST
1/2T

DIST
FULL

G7121POP Solid, 10 ft. 2-7/16'' x 1-5/8'' Green 12 g $1,150.00 N/A N/A N/A N/A
G7122POP Solid, 20 ft. 2-7/16'' x 1-5/8'' Green 12 g  $1,150.00 N/A N/A N/A N/A
G712H1POP With 9/16 in Hole, 10 ft. 2-7/16'' x 1-5/8'' Green 12 g  $1,150.00 N/A N/A N/A N/A
G712H2POP With 9/16 in Hole, 20 ft. 2-7/16'' x 1-5/8'' Green 12 g $1,150.00 N/A N/A N/A N/A
G712OS1POP With 9/16 in x 1-1/8 in Slot, 10 ft 2-7/16'' x 1-5/8'' Green 12 g $1,150.00 N/A N/A N/A N/A
G712OS2POP With 9/16 in x 1-1/8 in Slot, 20 ft 2-7/16'' x 1-5/8'' Green 12 g $1,150.00 N/A N/A N/A N/A
G712LS1POP With 13/32 in x 3 in Slot, 10 ft. 2-7/16'' x 1-5/8'' Green 12 g $1,150.00 N/A N/A N/A N/A
G712LS2POP With 13/32 in x 3 in Slot, 20 ft. 2-7/16'' x 1-5/8'' Green 12 g $1,150.00 N/A N/A N/A N/A
G712A1POP Back-to-Back Welded, 10 ft. 4-7/8'' x 1-5/8'' Green 12 g $2,200.00 N/A N/A N/A N/A
G712A2POP Back-to-Back Welded, 20 ft. 4-7/8'' x 1-5/8'' Green 12 g $2,200.00 N/A N/A N/A N/A
G712KO1POP With 7/8 in Knock-out, 10 ft. 2-7/16'' x 1-5/8'' Green 12 g $1,600.00 N/A N/A N/A N/A
G712KO2POP With 7/8 in Knock-out, 20 ft. 2-7/16'' x 1-5/8'' Green 12 g $1,600.00 N/A N/A N/A N/A
G712AOS1POP Back-to-Back Welded, 10 ft. 4-7/8' x 1-5/8' Green 12 g $0.00 N/A N/A N/A N/A
G712AOS2POP Back-to-Back Welded, 20 ft. 4-7/8' x 1-5/8' Green 12 g $0.00 N/A N/A N/A N/A

Special Finishes/Types

PART #

DESCRIPTION

DIMENSION

FINISH

G.

LIST
PRICE

DIST
PPD

DIST
1/4T

DIST
1/2T

DIST
FULL

G7121YZ Gregory Gold, Yellow Zinc Dichromate, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $1,300.00 N/A N/A N/A N/A
G7122YZ Gregory Gold, Yellow Zinc Dichromate, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $1,300.00 N/A N/A N/A N/A
G7121GN Galvannealed WIZcoat, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $1,075.00 N/A N/A N/A N/A
G7122GN Galvannealed WIZcoat, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $1,075.00 N/A N/A N/A N/A
G7121PO Plan, Pickled & Oiled, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $980.00 N/A N/A N/A N/A
G7122PO Plan, Pickled & Oiled, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $980.00 N/A N/A N/A N/A
G7121HDG Hot-dipped Galvanized, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $1,275.00 N/A N/A N/A N/A
G7122HDG Hot-dipped Galvanized, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $1,275.00 N/A N/A N/A N/A
G7121PVC PVC Coated, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $1,400.00 N/A N/A N/A N/A
G7122PVC PVC Coated, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $1,400.00 N/A N/A N/A N/A
G712H1YZ Gregory Gold, Yellow Zinc Dichromate, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712H2YZ Gregory Gold, Yellow Zinc Dichromate, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712OS1YZ Gregory Gold, Yellow Zinc Dichromate, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712OS2YZ Gregory Gold, Yellow Zinc Dichromate, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712LS1YZ Gregory Gold, Yellow Zinc Dichromate, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712LS2YZ Gregory Gold, Yellow Zinc Dichromate, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712A1YZ Back-to-Back Welded, Yellow Zinc Dichromate, 10 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712A2YZ Back-to-Back Welded, Yellow Zinc Dichromate, 20 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712AOS1YZ Back-to-Back Welded, Yellow Zinc Dichromate, 10 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712AOS2YZ Back-to-Back Welded, Yellow Zinc Dichromate, 20 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712KO1YZ Gregory Gold, Yellow Zinc Dichromate, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712KO2YZ Gregory Gold, Yellow Zinc Dichromate, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712H1GN Galvannealed WIZcoat, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712H2GN Galvannealed WIZcoat, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712OS1GN Galvannealed WIZcoat, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712OS1GN Galvannealed WIZcoat, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712LS1GN Galvannealed WIZcoat, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712LS2GN Galvannealed WIZcoat, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712A1GN Back-to-Back Welded, Galvannealed WIZcoat, 10 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712A2GN Back-to-Back Welded, Galvannealed WIZcoat, 20 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712AOS1GN Back-to-Back Welded, Galvannealed WIZcoat, 10 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712AOS2GN Back-to-Back Welded, Galvannealed WIZcoat, 20 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712H1PO Plan, Pickled & Oiled, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712H2PO Plan, Pickled & Oiled, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712OS1PO Plan, Pickled & Oiled, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712OS2PO Plan, Pickled & Oiled, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712LS1PO Plan, Pickled & Oiled, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712LS2PO Plan, Pickled & Oiled, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712A1PO Back-to-Back Welded, Plain, Pickled & Oiled, 10 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712A2PO Back-to-Back Welded, Plain, Pickled & Oiled, 20 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712AOS1PO Back-to-Back Welded, Plain, Pickled & Oiled, 10 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712AOS2PO Back-to-Back Welded, Plain, Pickled & Oiled, 20 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G7121SS Stainless Steel, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G7122SS Stainless Steel, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712H1SS Stainless Steel, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712H2SS Stainless Steel, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712OS1SS Stainless Steel, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712OS2SS Stainless Steel, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712LS1SS Stainless Steel, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712LS2SS Stainless Steel, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712A1SS Back-to-Back Welded, Stainless Steel, 10 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712A2SS Back-to-Back Welded, Stainless Steel, 20 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712AOS1SS Back-to-Back Welded, Stainless Steel, 10 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712AOS2SS Back-to-Back Welded, Stainless Steel, 20 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G7121SS(316) Stainless Steel, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G7122SS(316) Stainless Steel, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712H1SS(316) Stainless Steel, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712H2SS(316) Stainless Steel, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712OS1SS(316) Stainless Steel, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712OS2SS(316) Stainless Steel, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712LS1SS(316) Stainless Steel, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712LS2SS(316) Stainless Steel, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712A1SS(316) Back-to-Back Welded, Stainless Steel, 10 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712A2SS(316) Back-to-Back Welded, Stainless Steel, 20 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712AOS1SS(316) Back-to-Back Welded, Stainless Steel, 10 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712AOS2SS(316) Back-to-Back Welded, Stainless Steel, 20 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712H1HDG Hot-dipped Galvanized, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712H2HDG Hot-dipped Galvanized, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712OS1HDG Hot-dipped Galvanized, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712OS2HDG Hot-dipped Galvanized, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712LS1HDG Hot-dipped Galvanized, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712LS2HDG Hot-dipped Galvanized, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712A1HDG Back-to-Back Welded, Hot-dipped Galvanized, 10 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712A2HDG Back-to-Back Welded, Hot-dipped Galvanized, 20 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712AOS1HDG Back-to-Back Welded, Hot-dipped Galvanized, 10 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712AOS2HDG Back-to-Back Welded, Hot-dipped Galvanized, 20 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712H1PVC PVC Coated, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712H2PVC PVC Coated, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712OS1PVC PVC Coated, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712OS2PVC PVC Coated, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712LS1PVC PVC Coated, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712LS2PVC PVC Coated, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712A1PVC Back-to-Back Welded, PVC Coated, 10 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712A2PVC Back-to-Back Welded, PVC Coated, 20 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712AOS1PVC Back-to-Back Welded, PVC Coated, 10 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712AOS2PVC Back-to-Back Welded, PVC Coated, 20 ft. 4-7/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712AKO1GN Galvannealed WIZcoat, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712AKO2GN Galvannealed WIZcoat, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712KO1PO Plain, Pickled & Oiled, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712KO2PO Plain, Pickled & Oiled, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712KO1SS Stainless Steel, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712KO2SS Stainless Steel, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712K01SS(316) Stainless Steel, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712K02SS(316) Stainless Steel, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712KO1HDG Hot-dipped Galvanized, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712KO2HDG Hot-dipped Galvanized, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712KO1PVC PVC Coated, 10' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G712KO2PVC PVC Coated, 20' 2-7/16' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
