Flat Washer

FLAT WASHER - SERIES W815

CATEGORY PART # BOLT SIZE INSIDE SIZE A OUTSIDE SIZE F LBS PER 100PCS
FLAT WASHER
SERIES W815
W815102 1/4” 5/16” 3/4” 0.67
FLAT WASHER
SERIES W815
W815103 3/8” 7/16” 1” 1.5
FLAT WASHER
SERIES W815
W815104 1/2” 9/16” 1-3/8” 3.9
FLAT WASHER
SERIES W815
W815105 5/8” 11/16” 1-3/4” 7.8
FLAT WASHER
SERIES W815
W815106 3/4” 13/16” 2” 11
FLAT WASHER
SERIES W815
W815107 7/8” 15/16” 2-1/4” 15

Lock Washer

LOCK WASHER - SERIES W816

CATEGORY PART # ROD SIZE INSIDE  OUTSIDE LBS PER 100PCS
LOCK WASHER
SERIES W816
W816103 3/8” 7/16” 11/16” 0.7
LOCK WASHER
SERIES W816
W816104 1/2” 9/16” 7/8” 1.5
LOCK WASHER
SERIES W816
W816105 5/8” 11/16” 1-1/16” 2.6
LOCK WASHER
SERIES W816
W816106 3/4” 13/16” 1-1/4” 4.3

Fender Washer

FENDER WASHER SERIES W818

CATEGORY PART # ROD SIZE INSIDE OUTSIDE LBS PER 100PCS
FENDER WASHER
SERIES W818
W818203 3/8” 13/32” 1-1/2” 3
FENDER WASHER
SERIES W818
W818204 1/2” 17/32” 2” 3

Square Washer

SQUARE WASHER - SERIES W800

CATEGORY PART # ROD SIZE A LBS PER 100PCS MATERIAL SIZE
SQUARE WASHER
SERIES W800
W800103 3/8” 48 3 x 3 x 1/8
SQUARE WASHER
SERIES W800
W800104 1/2” 48 3 x 3 x 1/8
SQUARE WASHER
SERIES W800
W800105 5/8” 64 3 x 3 x 1/4
SQUARE WASHER
SERIES W800
W800106 3/4” 64 3 x 3 x 1/4
SQUARE WASHER
SERIES W800
W800107 7/8” 165 4 x 4 x 3/8

Bevel Washer

BEVEL WASHER SERIES W817

CATEGORY PART # ROD SIZE A SIZE B SIZE C SIZE D LBS PER 100PCS
BEVEL WASHER
SERIES W817
W817103 3/8” 1-1/4 11/32 5/32 9
BEVEL WASHER
SERIES W817
W817104 1/2” 1-1/4 11/32 5/32 9
BEVEL WASHER
SERIES W817
W817105 5/8” 1-3/4” 13/32 5/32 14
BEVEL WASHER
SERIES W817
W817106 3/4” 1-1/2 15/32 7/32 16
BEVEL WASHER
SERIES W817
W817107 7/8" 2 9/16 7/32 33

Rod Couplings

ROD COUPLINGS - SERIES W805 & W806

CATEGORY PART # ROD SIZE A SIZE D MAX REC LOAD LBS  LBS PER 100PCS P
ROD COUPLING SER W805 & W806 W805103 3/8” 1” 610 4
ROD COUPLING SER W805 & W806 W806103 3/8” 1-3/4” 610 13
ROD COUPLING SER W805 & W806 W805104 1/2” 1-3/4” 1130 15
ROD COUPLING SER W805 & W806 W805105 5/8” 2-1/4” 1810 18
ROD COUPLING SER W805 & W806 W805106 3/4” 2-1/4” 2710 33
ROD COUPLING SER W805 & W806 W805107 7/8” 2-1/2” 3770 72

Hex Nut

HEX NUT - SERIES W810 & W811

CATEGORY TYPE PART # ROD SIZE A LBS PER 100PCS
HEX NUT SER W810 & W811 Standard duty W810102 1/4” 0.74
HEX NUT SER W810 & W811 Standard duty W810103 3/8” 1.6
HEX NUT SER W810 & W811 Standard duty W810104 1/2” 3.75
HEX NUT SER W810 & W811 Standard duty W810105 5/8” 7.33
HEX NUT SER W810 & W811 Standard duty W810106 3/4” 11.9
HEX NUT SER W810 & W811 Standard duty W810107 7/8” 19
HEX NUT SER W810 & W811 Heavy duty W811102 1/4” 1.2
HEX NUT SER W810 & W811 Heavy duty W811103 3/8” 3.2
HEX NUT SER W810 & W811 Heavy duty W811104 1/2” 6.6
HEX NUT SER W810 & W811 Heavy duty W811105 5/8” 12
HEX NUT SER W810 & W811 Heavy duty W811106 3/4” 19
HEX NUT SER W810 & W811 Heavy duty W811107 7/8” 30

Flat End Lag Screw

FLAT END LAG SCREW - SERIES W821

CATEGORY PART # LAG SIZE A BOLT SIZE B SIZE D MAX REC LOAD LBS  LBS PER 100PCS
FLAT END LAG SCREW
SERIES W821
W82125300 1/4” 1/2” 3” 230 4
FLAT END LAG SCREW
SERIES W821
W82131300 5/16” 5/8” 3” 300 7
FLAT END LAG SCREW
SERIES W821
W82137400 3/8” 3/4” 4” 360 10

Wood Drive Screw

WOOD DRIVE SCREW - SERIES W825

CATEGORY SIZE PART # SIZE # OF SCREW LBS PER 100PCS
WOOD DRIVE SCREW SERIES W825 1-1/2” W82512125 12 1.4
WOOD DRIVE SCREW SERIES W825 1-1/2” W82514125 14 1.6
WOOD DRIVE SCREW SERIES W825 2” W82512200 13 1.5
WOOD DRIVE SCREW SERIES W825 2” W82514200 15 1.8
WOOD DRIVE SCREW SERIES W825 2” W82516200 17 2.5

Lag Screw

LAG SCREW - SERIES W820

CATEGORY SIZE  PART # DIA OF LAG SCREW LBS PER 100PCS
LAG SCREW SER W820 1” W82025100 1/4" 1.5
LAG SCREW SER W820 1” W82037200 3/8" 3.6
LAG SCREW SER W820 1-1/4” W82025125 1/4" 1.8
LAG SCREW SER W820 1-1/4” W82037125 3/8" 4.2
LAG SCREW SER W820 1-1/2” W82025150 1/4" 2
LAG SCREW SER W820 1-1/2” W82037150 3/8" 4.7
LAG SCREW SER W820 1-1/2” W82050150 1/2" 8.8
LAG SCREW SER W820 1-3/4” W82025175 1/4" 2.3
LAG SCREW SER W820 1-3/4” W82037175 3/8" 5.4
LAG SCREW SER W820 2” W82025200 1/4" 2.6
LAG SCREW SER W820 2” W82037200 3/8" 6.1
LAG SCREW SER W820 2” W82050200 1/2" 10.9
LAG SCREW SER W820 2” W82062200 5/8" 20.2
LAG SCREW SER W820 2-1/2” W82025250 1/4" 3
LAG SCREW SER W820 2-1/2” W82037250 3/8" 7.1
LAG SCREW SER W820 2-1/2” W82050250 1/2" 12.7
LAG SCREW SER W820 2-1/2” W82062250 5/8" 23.2
LAG SCREW SER W820 2-1/2” W82075250 3/4" 36.4
LAG SCREW SER W820 3” W82025300 1/4" 3.7
LAG SCREW SER W820 3” W82037300 3/8" 8.5
LAG SCREW SER W820 3” W82050300 1/2" 15.4
LAG SCREW SER W820 3” W82062300 5/8" 27.4
LAG SCREW SER W820 3” W82075300 3/4" 42.5
LAG SCREW SER W820 3-1/2” W82025350 1/4" 4.2
LAG SCREW SER W820 3-1/2” W82037350 3/8" 9.6
LAG SCREW SER W820 3-1/2” W82050350 1/2" 17.3
LAG SCREW SER W820 3-1/2” W82062350 5/8" 30.4
LAG SCREW SER W820 3-1/2” W82075350 3/4" 47
LAG SCREW SER W820 4” W82025400 1/4" 4.8
LAG SCREW SER W820 4” W82037400 3/8" 11.1
LAG SCREW SER W820 4” W82050400 1/2" 20.1
LAG SCREW SER W820 4” W82062400 5/8" 34.8
LAG SCREW SER W820 4” W82075400 3/4" 53.1
LAG SCREW SER W820 4-1/2” W82025450 1/4" 5.3
LAG SCREW SER W820 4-1/2” W82037450 3/8" 12.1
LAG SCREW SER W820 4-1/2” W82050450 1/2" 22.8
LAG SCREW SER W820 4-1/2” W82062450 5/8" 37.6
LAG SCREW SER W820 4-1/2” W82075450 3/4" 57.4
LAG SCREW SER W820 5” W82025500 1/4" 6
LAG SCREW SER W820 5” W82037500 3/8" 13.6
LAG SCREW SER W820 5” W82050500 1/2" 24.5
LAG SCREW SER W820 5” W82062500 5/8" 41.8
LAG SCREW SER W820 5” W82075500 3/4" 63.7

Hex Head Bolt

HEX HEAD BOLT – SERIES W835

CATEGORY SIZE PART # DIA OF HEX BOLT LBS PER 100PCS
HEX HEAD BOLT SER W835 2” W83537200 3/8" 7
HEX HEAD BOLT SER W835 2” W83550200 1/2" 14
HEX HEAD BOLT SER W835 2” W83562200 5/8" 23
HEX HEAD BOLT SER W835 2” W83575200 3/4" 35
HEX HEAD BOLT SER W835 2-1/4” W83537225 3/8" 8
HEX HEAD BOLT SER W835 2-1/4” W83550225 1/2" 15
HEX HEAD BOLT SER W835 2-1/4” W83562225 5/8" 25
HEX HEAD BOLT SER W835 2-1/4” W83575225 3/4" 39
HEX HEAD BOLT SER W835 2-1/2” W83537250 3/8" 9
HEX HEAD BOLT SER W835 2-1/2” W83550250 1/2" 17
HEX HEAD BOLT SER W835 2-1/2” W83562250 5/8" 27
HEX HEAD BOLT SER W835 2-1/2” W83575250 3/4" 42
HEX HEAD BOLT SER W835 2-1/2” W83587250 7/8" 60
HEX HEAD BOLT SER W835 2-3/4” W83537275 3/8" 10
HEX HEAD BOLT SER W835 2-3/4” W83550275 1/2" 18
HEX HEAD BOLT SER W835 2-3/4” W83562275 5/8" 29
HEX HEAD BOLT SER W835 2-3/4” W83575275 3/4" 45
HEX HEAD BOLT SER W835 2-3/4” W83587275 7/8" 64
HEX HEAD BOLT SER W835 3” W83537300 3/8" 10
HEX HEAD BOLT SER W835 3” W83550300 1/2" 20
HEX HEAD BOLT SER W835 3” W83562300 5/8" 32
HEX HEAD BOLT SER W835 3” W83575300 3/4" 48
HEX HEAD BOLT SER W835 3” W83587300 7/8" 68
HEX HEAD BOLT SER W835 3-1/4” W83537325 3/8" 11
HEX HEAD BOLT SER W835 3-1/4” W83550325 1/2" 21
HEX HEAD BOLT SER W835 3-1/4” W83562325 5/8" 34
HEX HEAD BOLT SER W835 3-1/4” W83575325 3/4" 51
HEX HEAD BOLT SER W835 3-1/4” W83587325 7/8" 72
HEX HEAD BOLT SER W835 3-1/2” W83537350 3/8" 12
HEX HEAD BOLT SER W835 3-1/2” W83550350 1/2" 22
HEX HEAD BOLT SER W835 3-1/2” W83562350 5/8" 36
HEX HEAD BOLT SER W835 3-1/2” W83575350 3/4" 54
HEX HEAD BOLT SER W835 3-1/2” W83587350 7/8" 76
HEX HEAD BOLT SER W835 3-3/4” W83537375 3/8" 13
HEX HEAD BOLT SER W835 3-3/4” W83550375 1/2" 24
HEX HEAD BOLT SER W835 3-3/4” W83562375 5/8" 38
HEX HEAD BOLT SER W835 3-3/4” W83575375 3/4" 57
HEX HEAD BOLT SER W835 3-3/4” W83587375 7/8" 80
HEX HEAD BOLT SER W835 4” W83537400 3/8" 13
HEX HEAD BOLT SER W835 4” W83550400 1/2" 25
HEX HEAD BOLT SER W835 4” W83562400 5/8" 40
HEX HEAD BOLT SER W835 4” W83575400 3/4" 60
HEX HEAD BOLT SER W835 4” W83587400 7/8" 85

HEX HEAD BOLT – SERIES W836

CATEGORY SIZE PART # DIA OF HEX BOLT LBS PER 100PCS
HEX HEAD BOLT SER W836 2” W83637200 3/8" 7
HEX HEAD BOLT SER W836 2” W83650200 1/2" 14
HEX HEAD BOLT SER W836 2” W83675200 5/8" 23
HEX HEAD BOLT SER W836 2” W83662200 3/4" 35
HEX HEAD BOLT SER W836 2-1/4” W83637225 3/8" 8
HEX HEAD BOLT SER W836 2-1/4” W83650225 1/2" 15
HEX HEAD BOLT SER W836 2-1/4” W83662225 5/8" 25
HEX HEAD BOLT SER W836 2-1/4” W83675225 3/4" 39
HEX HEAD BOLT SER W836 2-1/2” W83637250 3/8" 9
HEX HEAD BOLT SER W836 2-1/2” W83650250 1/2" 17
HEX HEAD BOLT SER W836 2-1/2” W83662250 5/8" 27
HEX HEAD BOLT SER W836 2-1/2” W83675250 3/4" 42
HEX HEAD BOLT SER W836 2-1/2” W83687250 7/8" 60
HEX HEAD BOLT SER W836 2-3/4” W83637275 3/8" 10
HEX HEAD BOLT SER W836 2-3/4” W83650275 1/2" 18
HEX HEAD BOLT SER W836 2-3/4” W83662275 5/8" 29
HEX HEAD BOLT SER W836 2-3/4” W83675275 3/4" 45
HEX HEAD BOLT SER W836 2-3/4” W83687275 7/8" 64
HEX HEAD BOLT SER W836 3” W83637300 3/8" 10
HEX HEAD BOLT SER W836 3” W83650300 1/2" 20
HEX HEAD BOLT SER W836 3” W83662300 5/8" 32
HEX HEAD BOLT SER W836 3” W83675300 3/4" 48
HEX HEAD BOLT SER W836 3” W83687300 7/8" 68
HEX HEAD BOLT SER W836 3-1/4” W83637325 3/8" 11
HEX HEAD BOLT SER W836 3-1/4” W83650325 1/2" 21
HEX HEAD BOLT SER W836 3-1/4” W83662325 5/8" 34
HEX HEAD BOLT SER W836 3-1/4” W83675325 3/4" 51
HEX HEAD BOLT SER W836 3-1/4” W83687325 7/8" 72
HEX HEAD BOLT SER W836 3-1/2” W83637350 3/8" 12
HEX HEAD BOLT SER W836 3-1/2” W83650350 1/2" 22
HEX HEAD BOLT SER W836 3-1/2” W83662350 5/8" 36
HEX HEAD BOLT SER W836 3-1/2” W83675350 3/4" 54
HEX HEAD BOLT SER W836 3-1/2” W83687350 7/8" 76
HEX HEAD BOLT SER W836 3-3/4” W83637375 3/8" 13
HEX HEAD BOLT SER W836 3-3/4” W83650375 1/2" 24
HEX HEAD BOLT SER W836 3-3/4” W83662375 5/8" 38
HEX HEAD BOLT SER W836 3-3/4” W83675375 3/4" 57
HEX HEAD BOLT SER W836 3-3/4” W83687375 7/8" 80
HEX HEAD BOLT SER W836 4” W83637400 3/8" 13
HEX HEAD BOLT SER W836 4” W83650400 1/2" 25
HEX HEAD BOLT SER W836 4” W83662400 5/8" 40
HEX HEAD BOLT SER W836 4” W83675400 3/4" 60
HEX HEAD BOLT SER W836 4” W83687400 7/8" 85

Anchor Drop-In

ANCHOR DROP-IN - SERIES W840

CATEGORY PART # ANCHOR SIZE A HOLE SIZE THREADS DEPTH CARTON QTY LBS PER 100PCS
ANCHOR DROP-IN SER W840 W840202 1/4” 3/8” 1/2” 100 2.88
ANCHOR DROP-IN SER W840 W840203 3/8” 1/2” 5/8” 100 6.32
ANCHOR DROP-IN SER W840 W840204 1/2” 5/8” 3/4” 50 11.56
ANCHOR DROP-IN SER W840 W840205 5/8” 7/8” 1” 25 37.8
ANCHOR DROP-IN SER W840 W840206 3/4” 1” 1-1/4” 25 48

Wedge Anchor

WEDGE ANCHOR - SERIES W842

CATEGORY PART # ROD SIZE A SIZE B MIN EMBEDMENT WT PER EA
WEDGE ANCHOR SER W842 W842203 3/8” 1-1/8” 1-5/8” 0.03
WEDGE ANCHOR SER W842 W842204 1/2” 1-1/4” 2-1/4” 0.06
WEDGE ANCHOR SER W842 W842205 5/8” 1-1/2” 2-3/4” 0.11

Self Drilling Snap-Off Flush

SELF DRILLING SNAP-OFF FLUSH – SERIES W841

CATEGORY PART # RODSIZE A OUTSIDE SIZE B THREAD DEPTH HOLE DEPTH
SELF DRILLING SNAP-OFF FLUSH SERI W841 W842203 3/8” 9/16” 9/16” 1-17/32”
SELF DRILLING SNAP-OFF FLUSH SERI W841 W842204 1/2” 11/16” 13/16” 2-1/32”
SELF DRILLING SNAP-OFF FLUSH SERI W841 W842205 5/8” 27/32” 15/16” 2-15/32”

Double Expansion Shield

DOUBLE EXPANSION SHIELD – SERIES W850

CATEGORY PART # INTERNAL DIAMETER HOLE SIZE ANCHOR LENGTH PSI  TENSILE STRENGTH SHEAR STRENGTH CARTON QTY LBS PER 100PCS
DOUBLE EXPANSION SHIELD SER W850 W850202 1/4” 1/2” 1” 3000 1850 lbs. 2780 lbs. 100 4
DOUBLE EXPANSION SHIELD SER W850 W850203 3/8” 3/4” 1-1/2” 3001 3900 lbs. 4485 lbs. 50 14
DOUBLE EXPANSION SHIELD SER W850 W850204 1/2” 7/8” 2” 3002 4600 lbs. 9300 lbs. 25 18
DOUBLE EXPANSION SHIELD SER W850 W850205 5/8” 1” 2-1/4” 3003 5950 lbs. 13250 lbs. 25 25
DOUBLE EXPANSION SHIELD SER W850 W850206 3/4” 1-1/4” 2-7/8” 3004 9350 lbs. 16200 lbs. 10 54

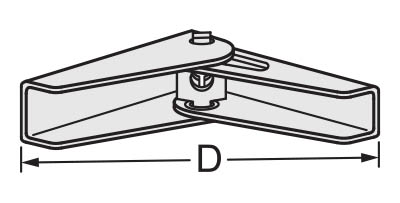

Wing Toggle

WING TOGGLE - SERIES W855

CATEGORY PART # ROD SIZE SIZE D HOLE SIZE LBS PER 100PCS
WING TOGGLE SER W855 W855203 3/8” 3” 1” 7
WING TOGGLE SER W855 W855204 1/2” 4-7/16” 1-1/4” 8

Offset Eye Socket

OFFSET EYE SOCKET – SERIES W830

CATEGORY PART # FINISH ROD SIZE A MAX PIPE SIZE LAG SCREW SIZE SIZE B SIZE D MAX REC LOAD LBS LBS PER 100PCS
OFFSET EYE SOCKET SER W830 W830103 PLAIN 3/8” 2" 3/8” X 2-1/2” 1” 2-5/8” 610 9
OFFSET EYE SOCKET SER W830 W830203 ELECTRO GALV 3/8” 2" 3/8” X 2-1/2” 1” 2-5/8” 610 9

Threaded Rod

THREADED ROD – SERIES W860

CATEGORY PART # ROD SIZE MAX REC LOAD LBS LBS PER 100PCS
THREADED ROD SER W860 W860102 1/4” 240 12
THREADED ROD SER W860 W860103 3/8” 610 30
THREADED ROD SER W860 W860104 1/2” 1130 54
THREADED ROD SER W860 W860105 5/8” 1810 85
THREADED ROD SER W860 W860106 3/4” 2710 120
THREADED ROD SER W860 W860107 7/8” 3770 170

Machine Thread Hanger Rod

MACHINE THREAD HANGER ROD – SERIES W853

CATEGORY PART # ROD SIZE A SIZE B MAX REC LOAD LBS 650 F MAX REC LOAD LBS 750 F LBS PER FT
MACHINE THREAD HANGER ROD SER W853 W863103 3/8” 2-1/2” 730 540 0.37
MACHINE THREAD HANGER ROD SER W853 W863104 1/2” 2-1/2” 1350 1010 0.72
MACHINE THREAD HANGER ROD SER W853 W863105 5/8” 2-1/2” 1810 1610 1.08
MACHINE THREAD HANGER ROD SER W853 W863106 3/4” 3” 2710 2420 1.56
MACHINE THREAD HANGER ROD SER W853 W863107 7/8” 3-1/2” 3770 3360 2.04
MACHINE THREAD HANGER ROD SER W853 W863110 1” 4” 4960 4420 2.64

MACHINE THREAD HANGER ROD – SERIES W854

CATEGORY PART # ROD SIZE A SIZE B MAX REC LOAD LBS 650 F MAX REC LOAD LBS 750 F LBS PER FT
MACHINE THREAD HANGER ROD SER W854 W864103 3/8” 2-1/2” 730 540 0.37
MACHINE THREAD HANGER ROD SER W854 W864104 1/2” 2-1/2” 1350 1010 0.72
MACHINE THREAD HANGER ROD SER W854 W864105 5/8” 2-1/2” 1810 1610 1.08
MACHINE THREAD HANGER ROD SER W854 W864106 3/4” 3” 2710 2420 1.56
MACHINE THREAD HANGER ROD SER W854 W864107 7/8” 3-1/2” 3770 3360 2.04
MACHINE THREAD HANGER ROD SER W854 W864110 1” 4” 4960 4420 2.64

Eye Rod

EYE ROD – SERIES W866

CATEGORY THREADS PART # ROD SIZE A SIZE B SIZE C MAX REC LOAD LBS 650 F WT EA IN LBS TOTAL LEN D 8" WT EA IN LBS TOTAL LEN D 10" WT EA IN LBS TOTAL LEN D 12" WT EA IN LBS TOTAL LEN D 14" WT EA IN LBS TOTAL LEN D 18" WT EA IN LBS TOTAL LEN D 24" WT EA IN LBS TOTAL LEN D 30" WT EA IN LBS TOTAL LEN D 36" WT EA IN LBS TOTAL LEN D 42" WT EA IN LBS TOTAL LEN D 48" WT EA IN LBS TOTAL LEN D 54" WT EA IN LBS TOTAL LEN D 60" WT EA IN LBS TOTAL LEN D 66" WT EA IN LBS TOTAL LEN D 72"
EYE ROD SER W866 right hand  W866103 3/8” 5/8” 2-1/2” 240 0.32 0.38 0.44 0.5 0.63 0.8 1 1.18 1.39 1.58 1.76 1.95 2.14 2.33
EYE ROD SER W866 right hand  W866104 1/2” 3/4” 2-1/2” 440 0.6 0.7 0.82 0.94 1.16 1.5 1.83 2.17 2.49 2.83 3.16 3.49 3.83 4.06
EYE ROD SER W866 right hand  W866105 5/8” 7/8” 2-1/2” 705 0.97 1.14 1.31 1.49 1.84 2.36 2.88 3.4 3.92 4.44 4.96 5.48 6 6.52
EYE ROD SER W866 right hand  W866106 3/4” 1” 3” 1050 1.44 1.68 1.94 2.19 2.68 3.44 4.17 4.94 5.7 6.45 7.2 7.95 8.7 9.45
EYE ROD SER W866 right hand  W866107 7/8” 1-1/8” 3-1/2” 1470 2.04 2.32 2.68 3.02 3.73 4.72 5.74 6.79 7.81 8.83 9.85 10.87 11.89 12.91
EYE ROD SER W866 right hand  W866110 1” 1-1/4” 4” 1940 2.67 3.11 3.56 4 4.89 6.78 8.18 8.89 10.48 11.87 13.19 14.51 15.91 17.25

EYE ROD – SERIES W867

CATEGORY THREADS PART # ROD SIZE A SIZE B SIZE C MAX REC LOAD LBS 650 F WT EA IN LBS TOTAL LEN D 8" WT EA IN LBS TOTAL LEN D 10" WT EA IN LBS TOTAL LEN D 12" WT EA IN LBS TOTAL LEN D 14" WT EA IN LBS TOTAL LEN D 18" WT EA IN LBS TOTAL LEN D 24" WT EA IN LBS TOTAL LEN D 30" WT EA IN LBS TOTAL LEN D 36" WT EA IN LBS TOTAL LEN D 42" WT EA IN LBS TOTAL LEN D 48" WT EA IN LBS TOTAL LEN D 54" WT EA IN LBS TOTAL LEN D 60" WT EA IN LBS TOTAL LEN D 66" WT EA IN LBS TOTAL LEN D 72"
EYE ROD SER W867 left hand W867103 3/8” 3/8” 2-1/2” 240 0.32 0.38 0.44 0.5 0.63 0.8 1 1.18 1.39 1.58 1.76 1.95 2.14 2.33
EYE ROD SER W867 left hand W867104 1/2” 1/2” 2-1/2” 440 0.6 0.7 0.82 0.94 1.16 1.5 1.83 2.17 2.49 2.83 3.16 3.49 3.83 4.06
EYE ROD SER W867 left hand W867105 5/8” 5/8” 2-1/2” 705 0.97 1.14 1.31 1.49 1.84 2.36 2.88 3.4 3.92 4.44 4.96 5.48 6 6.52
EYE ROD SER W867 left hand W867106 3/4” 3/4” 3” 1050 1.44 1.68 1.94 2.19 2.68 3.44 4.17 4.94 5.7 6.45 7.2 7.95 8.7 9.45
EYE ROD SER W867 left hand W867107 7/8” 7/8” 3-1/2” 1470 2.04 2.32 2.68 3.02 3.73 4.72 5.74 6.79 7.81 8.83 9.85 10.87 11.89 12.91
EYE ROD SER W867 left hand W867110 1” 1” 4” 1940 2.67 3.11 3.56 4 4.89 6.78 8.18 8.89 10.48 11.87 13.19 14.51 15.91 17.25

Welded Eye Rod

WELDED EYE ROD – SERIES W868

CATEGORY  THREADS PART # ROD SIZE A SIZE B SIZE C MAX REC LOAD LBS 650 F MAX REC LOAD LBS 750 F WT EA IN LBS TOTAL LEN D 8" WT EA IN LBS TOTAL LEN D 10" WT EA IN LBS TOTAL LEN D 12" WT EA IN LBS TOTAL LEN D 14" WT EA IN LBS TOTAL LEN D 18" WT EA IN LBS TOTAL LEN D 24" WT EA IN LBS TOTAL LEN D 30" WT EA IN LBS TOTAL LEN D 36" WT EA IN LBS TOTAL LEN D 42" WT EA IN LBS TOTAL LEN D 48" WT EA IN LBS TOTAL LEN D 54" WT EA IN LBS TOTAL LEN D 60" WT EA IN LBS TOTAL LEN D 66" WT EA IN LBS TOTAL LEN D 72"
WELDED EYE ROD SER W868 right hand W868103 3/8” 3/8” 2-1/2” 730 540 0.32 0.38 0.44 0.5 0.63 0.8 1 1.18 1.39 1.58 1.76 1.95 2.14 2.33
WELDED EYE ROD SER W868 right hand W868104 1/2” 1/2” 2-1/2” 1350 1010 0.6 0.7 0.82 0.94 1.16 1.5 1.83 2.17 2.49 2.83 3.16 3.49 3.83 4.06
WELDED EYE ROD SER W868 right hand W868105 5/8” 5/8” 2-1/2” 1810 1610 0.97 1.14 1.31 1.49 1.84 2.36 2.88 3.4 3.92 4.44 4.96 5.48 6 6.52
WELDED EYE ROD SER W868 right hand W868106 3/4” 3/4” 3” 2710 2420 1.44 1.68 1.94 2.19 2.68 3.44 4.17 4.94 5.7 6.45 7.2 7.95 8.7 9.45
WELDED EYE ROD SER W868 right hand W868107 7/8” 7/8” 3-1/2” 3770 3360 2.04 2.32 2.68 3.02 3.73 4.72 5.74 6.79 7.81 8.83 9.85 10.87 11.89 12.91
WELDED EYE ROD SER W868 right hand W868110 1” 1” 4” 4960 4420 2.67 3.11 3.56 4 4.89 6.78 8.18 8.89 10.48 11.87 13.19 14.51 15.91 17.25

WELDED EYE ROD – SERIES W869

CATEGORY  THREADS PART # ROD SIZE A SIZE B SIZE C MAX REC LOAD LBS 650 F MAX REC LOAD LBS 750 F WT EA IN LBS TOTAL LEN D 8" WT EA IN LBS TOTAL LEN D 10" WT EA IN LBS TOTAL LEN D 12" WT EA IN LBS TOTAL LEN D 14" WT EA IN LBS TOTAL LEN D 18" WT EA IN LBS TOTAL LEN D 24" WT EA IN LBS TOTAL LEN D 30" WT EA IN LBS TOTAL LEN D 36" WT EA IN LBS TOTAL LEN D 42" WT EA IN LBS TOTAL LEN D 48" WT EA IN LBS TOTAL LEN D 54" WT EA IN LBS TOTAL LEN D 60" WT EA IN LBS TOTAL LEN D 66" WT EA IN LBS TOTAL LEN D 72"
WELDED EYE ROD SER W869 left hand W869103 3/8” 3/8” 2-1/2” 730 540 0.32 0.38 0.44 0.5 0.63 0.8 1 1.18 1.39 1.58 1.76 1.95 2.14 2.33
WELDED EYE ROD SER W869 left hand W869104 1/2” 1/2” 2-1/2” 1350 1010 0.6 0.7 0.82 0.94 1.16 1.5 1.83 2.17 2.49 2.83 3.16 3.49 3.83 4.06
WELDED EYE ROD SER W869 left hand W869105 5/8” 5/8” 2-1/2” 1810 1610 0.97 1.14 1.31 1.49 1.84 2.36 2.88 3.4 3.92 4.44 4.96 5.48 6 6.52
WELDED EYE ROD SER W869 left hand W869106 3/4” 3/4” 3” 2710 2420 1.44 1.68 1.94 2.19 2.68 3.44 4.17 4.94 5.7 6.45 7.2 7.95 8.7 9.45
WELDED EYE ROD SER W869 left hand W869107 7/8” 7/8” 3-1/2” 3770 3360 2.04 2.32 2.68 3.02 3.73 4.72 5.74 6.79 7.81 8.83 9.85 10.87 11.89 12.91
WELDED EYE ROD SER W869 left hand W869110 1” 1” 4” 4960 4420 2.67 3.11 3.56 4 4.89 6.78 8.18 8.89 10.48 11.87 13.19 14.51 15.91 17.25

U-Bolt

U-BOLT – SERIES W870

CATEGORY  PART # PIPE SIZE SIZE A SIZE B SIZE C SIZE D SIZE E SIZE F CARTON QTY MAX REC LOAD LBS 650 F MAX REC LOAD LBS 750 F LBS PER 100PCS
U-BOLT SER W870 W870104 1/2” 1/4” 1-1/8” 1” 3-1/4” 2-3/8” 2-3/4” 100 1220 1090 23
U-BOLT SER W870 W870106 3/4” 1/4” 1-3/8” 1-1/8” 3-1/4” 2-3/8” 2-3/4” 100 1220 1090 24
U-BOLT SER W870 W870110 1” 1/4” 1-5/8” 1-3/8” 3-1/2” 2-3/8” 2-3/4” 100 1220 1090 26
U-BOLT SER W870 W870112 1-1/4” 3/8” 2” 1-5/8” 3-3/4” 2-3/8” 2-7/8” 100 1220 1090 28
U-BOLT SER W870 W870114 1-1/2” 3/8” 2-3/8” 2” 4” 2-1/2” 3” 100 1220 1090 29
U-BOLT SER W870 W870120 2” 3/8” 2-3/4” 2-1/2” 4-1/2” 2-1/2” 3-1/4” 100 1220 1090 32
U-BOLT SER W870 W870124 2-1/2” 1/2” 3-1/2” 3” 5-1/4” 3” 3-3/4” 50 2260 2020 68
U-BOLT SER W870 W870130 3” 1/2” 4” 3-1/2” 5-3/4” 3” 4” 50 2260 2020 77
U-BOLT SER W870 W870134 3-1/2” 1/2” 4-1/2” 4” 6-1/4” 3” 4-1/4” 50 2260 2020 82
U-BOLT SER W870 W870140 4” 1/2” 5” 4-1/2” 6-3/4” 3” 4-1/2” 50 2260 2020 88
U-BOLT SER W870 W870150 5” 1/2” 6-1/8” 5-5/8” 7-3/4” 3” 5” 50 2260 2020 93
U-BOLT SER W870 W870160 6” 5/8” 7-3/8” 6-3/4” 9-1/2” 3-3/4” 6-1/8” 25 3620 3230 194
U-BOLT SER W870 W870180 8” 5/8” 9-3/8” 8-3/4” 11-1/2” 3-3/4” 7-1/8” 20 3620 3230 236
U-BOLT SER W870 W8701100 10” 3/4” 11-5/8” 10-7/8” 13-3/4” 4” 8-3/8” 10 5420 4830 489
U-BOLT SER W870 W8701120 12” 7/8” 13-3/4” 12-7/8” 16” 4-1/4” 9-5/8” 5 7540 6730 776
U-BOLT SER W870 W8701140 14” 7/8” 15” 14-1/8” 17-1/4” 4-1/4” 10-1/4” 5 7540 6730 832
U-BOLT SER W870 W8701160 16” 7/8” 17” 16-1/8” 19-1/4” 4-1/4” 11-1/4” 2 7540 6730 919
U-BOLT SER W870 W8701180 18” 1” 19-1/8” 18-1/8” 21-5/8” 4-3/4” 12-5/8” 2 9920 8850 1067
U-BOLT SER W870 W8701200 20” 1” 21-1/8” 20-1/8” 23-5/8” 4-3/4” 13-5/8” 1 9920 8850 1474
U-BOLT SER W870 W8701240 24” 1” 25-1/8” 24-1/8” 27-5/8” 4-3/4” 15-5/8” 1 9920 8850 1708

Coach Screw Rod

COACH SCREW ROD – SERIES W865

CATEGORY  PART # ROD SIZE A SIZE B SIZE C  MAX REC LOAD LBS WT EA IN LBS TOTAL LEN D 4"  WT EA IN LBS TOTAL LEN D 6" WT EA IN LBS TOTAL LEN D 8" WT EA IN LBS TOTAL LEN D 10" WT EA IN LBS TOTAL LEN D 12"
COACH SCREW ROD SER W865 W865103 3/8” 2” 2” 390 0.12 0.19 0.25 0.31 0.37
COACH SCREW ROD SER W865 W865104 1/2” 2” 2-1/2” 460 0.22 0.34 0.44 0.56 0.67

U-Hook

U-HOOK – SERIES W873

CATEGORY  PART # PIPE SIZE A SIZE C MAX REC LOADS LBS WT EA IN LBS TOTAL LEN D 6" WT EA IN LBS TOTAL LEN D 8" WT EA IN LBS TOTAL LEN D 10" WT EA IN LBS TOTAL LEN D 12" WT EA IN LBS TOTAL LEN D 14" WT EA IN LBS TOTAL LEN D 16" WT EA IN LBS TOTAL LEN D 18" WT EA IN LBS TOTAL LEN D 20" WT EA IN LBS TOTAL LEN D 24"
U-HOOK SER W873 W873106 3/4” 5/16” 250 0.36 0.45 0.54 0.62 0.71 0.8 0.81 0.96 1.08
U-HOOK SER W873 W873110 1” 5/16” 250 0.37 0.46 0.55 0.62 0.72 0.81 0.82 0.98 1.16
U-HOOK SER W873 W873112 1-1/4” 5/16” 250 0.37 0.47 0.55 0.64 0.73 0.82 0.9 0.99 1.16
U-HOOK SER W873 W873114 1-1/2” 5/16” 250 0.38 0.47 0.56 0.65 0.73 0.83 0.92 1 1.17
U-HOOK SER W873 W873120 2” 5/16” 250 0.41 0.49 0.58 0.67 0.76 0.85 0.93 1.02 1.19
U-HOOK SER W873 W873124 2-1/2” 3/8” 320 0.59 0.72 0.84 0.97 1.09 1.22 1.34 1.47 1.73
U-HOOK SER W873 W873130 3” 3/8” 320 0.6 0.73 0.85 0.98 1.1 1.23 1.35 1.48 1.73
U-HOOK SER W873 W873134 3-1/2” 1/2” 560 1.14 1.36 1.59 1.81 2.03 2.25 2.48 2.7 3.15
U-HOOK SER W873 W873140 4” 1/2” 560 1.17 1.39 1.61 1.84 2.06 2.28 2.5 2.73 3.17

J-Beam Bolt

J-BEAM BOLT – SERIES W871

CATEGORY PART # ROD SIZE A SIZE B SIZE C MAX REC LOAD LBS WT EA IN LBS TOTAL LEN D 4" WT EA IN LBS TOTAL LEN D 5" WT EA IN LBS TOTAL LEN D 6" WT EA IN LBS TOTAL LEN D 7" WT EA IN LBS TOTAL LEN D 8" WT EA IN LBS TOTAL LEN D 10" WT EA IN LBS TOTAL LEN D 11"
J-BEAM BOLT SER W871 W871103 3/8” 2” 1/2” 240 0.19 0.22 0.25 0.28 0.32 0.38 0.44
J-BEAM BOLT SER W871 W871104 1/2” 2” 5/8” 440 0.33 0.39 0.45 0.5 0.56 0.67 0.78
J-BEAM BOLT SER W871 W871105 5/8” 2-1/2” 3/4” 705 0.52 0.6 0.7 0.78 0.87 1 1.2
J-BEAM BOLT SER W871 W871106 3/4” 2-1/2” 7/8” 1050 0.75 0.88 1 1.1 1.26 1.5 1.75
J-BEAM BOLT SER W871 W871107 7/8” 2-1/2” 1” 1500 1.02 1.2 1.35 1.53 1.7 2 2.4

Anchor Bolt

ANCHOR BOLT – SERIES W872

CATEGORY PART # ROD SIZE A SIZE B SIZE C WT EA IN LBS TOTAL LEN 6" WT EA IN LBS TOTAL LEN 8" WT EA IN LBS TOTAL LEN 10" WT EA IN LBS TOTAL LEN 12"
ANCHOR BOLT SER W872 W872103 3/8” 2” 2” 0.28 0.34 0.4 0.46
ANCHOR BOLT SER W872 W872104 1/2” 2” 2” 0.52 0.63 0.75 0.58
ANCHOR BOLT SER W872 W872105 5/8” 2-1/2” 2-1/2” 0.81 0.99 1.16 1.34
ANCHOR BOLT SER W872 W872106 3/4” 2-3/4” 2-1/2” 1.18 1.44 1.69 1.94
ANCHOR BOLT SER W872 W872107 7/8” 3” 2-1/2” 1.69 2 2.39 2.7
ANCHOR BOLT SER W872 W872110 1” 3-1/2” 3” 2.5 3 3.47 4.3
