102 Series (12 Gauge)

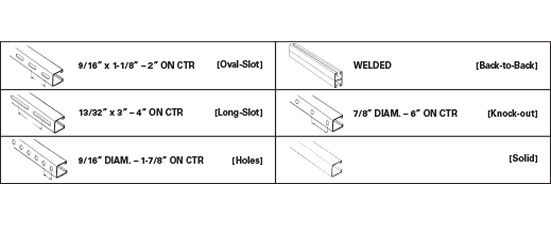

102 channel     102 channel slotholes

Weight is pounds/100 pieces.

For a custom order or hard-to-find part, please request it through our contact form.

CONTACT US

Pre-Galvanized

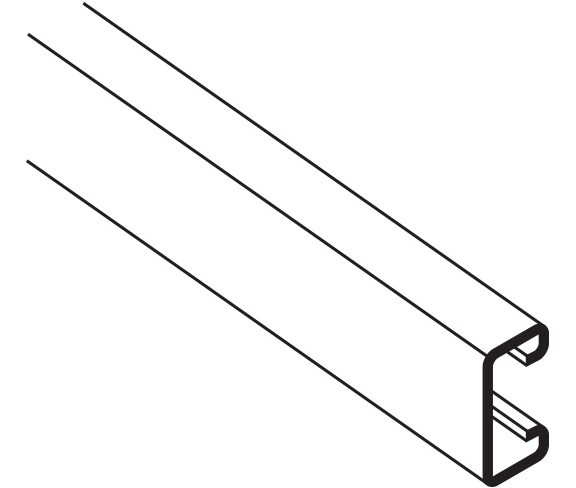

  • Part Number: G1021
  • Description: Solid, 10 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G1022
  • Description: Solid, 20 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote

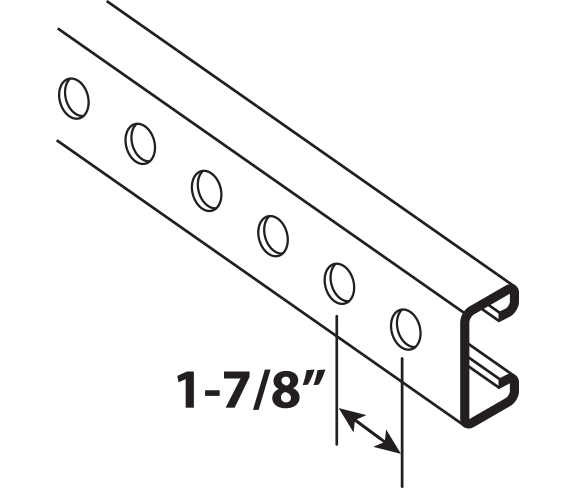

  • Part Number: G102H1
  • Description: With 9/16 in. Hole, 10 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102H2
  • Description: With 9/16 in. Hole, 20 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote

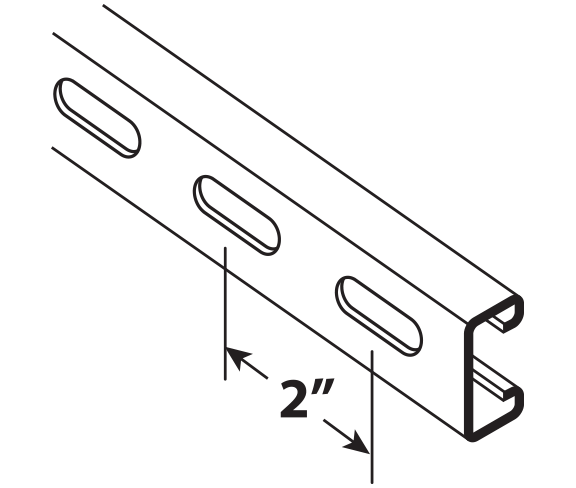

  • Part Number: G102OS1
  • Description: With 9/16 in. x 1-1/8 in. Slot, 10 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102OS2
  • Description: With 9/16 in. x 1-1/8 in. Slot, 20 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote

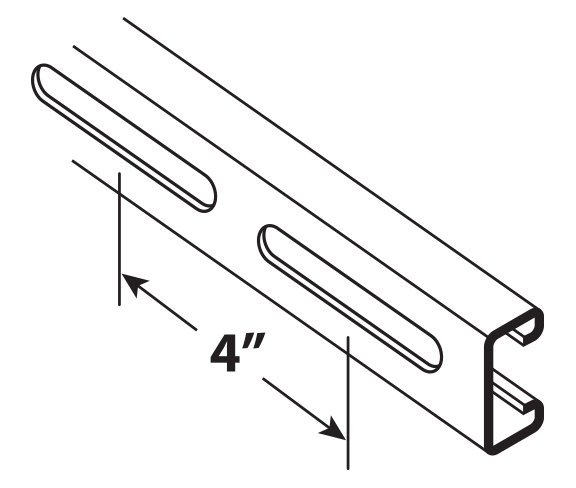

  • Part Number: G102LS1
  • Description: With 13/32 in. x 3 in. Slot, 10 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102LS2
  • Description: With 13/32 in. x 3 in. Slot, 20 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102A1
  • Description: Back-to-Back Welded, 10 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 2" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): 282
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102A2
  • Description: Back-to-Back Welded, 20 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 2" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): 282
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102AOS1
  • Description: Back-to-Back Welded, 10 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 2" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 282
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102AOS2
  • Description: Back-to-Back Welded, 20 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 2" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 282
View Engineering Specs and Submittal Form Request a Quote

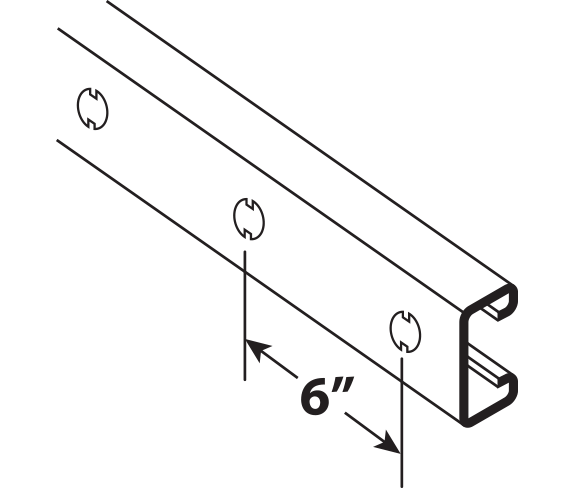

  • Part Number: G102KO1
  • Description: With 9/16 in. Knock-out, 10 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102KO2
  • Description: With 9/16 in. Knock-out, 20 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote

Green

  • Part Number: G1021POP
  • Description: Solid, 10 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G1022POP
  • Description: Solid, 20 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102H1POP
  • Description: With 9/16 in. Hole, 10 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102H2POP
  • Description: With 9/16 in. Hole, 20 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102OS1POP
  • Description: With 9/16 in. x 1-1/8 in. Slot, 10 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102OS2POP
  • Description: With 9/16 in. x 1-1/8 in. Slot, 20 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102LS1POP
  • Description: With 13/32 in. x 3 in. Slot, 10 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102LS2POP
  • Description: With 13/32 in. x 3 in. Slot, 20 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102A1POP
  • Description: Back-to-Back Welded, 10 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 2" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): 282
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102A2POP
  • Description: Back-to-Back Welded, 20 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 2" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): 282
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102AOS1POP
  • Description: Back-to-Back Welded, 10 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 2" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 282
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102AOS2POP
  • Description: Back-to-Back Welded, 20 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 2" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 282
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102KO1POP
  • Description: With 7/8 in. Knock-out, 10 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G102KO2POP
  • Description: With 7/8 in. Knock-out, 20 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 141
View Engineering Specs and Submittal Form Request a Quote

Special Finishes/Types

  • Part Number: G1021YZ
  • Description: Gregory Gold, Yellow Zinc Dichromate, 10'
  • Finish: Yellow Zinc
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: Customer Choice
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G1022YZ
  • Description: Gregory Gold, Yellow Zinc Dichromate, 20'
  • Finish: Yellow Zinc
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: Customer Choice
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G1021GN
  • Description: Galvannealed, WIZcoat, 10'
  • Finish: Galvanneal
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: Customer Choice
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G1022GN
  • Description: Galvannealed, WIZcoat, 20'
  • Finish: Galvanneal
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: Customer Choice
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G1021PO
  • Description: Plain, Pickled & Oiled, 10'
  • Finish: Plain
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: Customer Choice
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G1022PO
  • Description: Plain, Pickled & Oiled, 20'
  • Finish: Plain
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: Customer Choice
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G1021HDG
  • Description: Hot-dipped Galvanized, 10'
  • Finish: Hot Dip Galvanized
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: Customer Choice
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G1022HDG
  • Description: Hot-dipped Galvanized, 20'
  • Finish: Hot Dip Galvanized
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: Customer Choice
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G1021PVC
  • Description: PVC Coated, 10'
  • Finish: PVC
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: Customer Choice
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G1022PVC
  • Description: PVC Coated, 20'
  • Finish: PVC
  • Gauge: 12 g
  • Dimensions: 1" x 1-5/8"
  • Slot Type: Customer Choice
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
