382 channel dimensions     382 channels

Weight is pounds/100 pieces.

For a custom order or hard-to-find part, please request it through our contact form.

CONTACT US

Pre-Galvanized

PART # DESCRIPTION DIMENSION FINISH G. LIST
PRICE
DIST
PPD
DIST
1/4T
DIST
1/2T
DIST
FULL

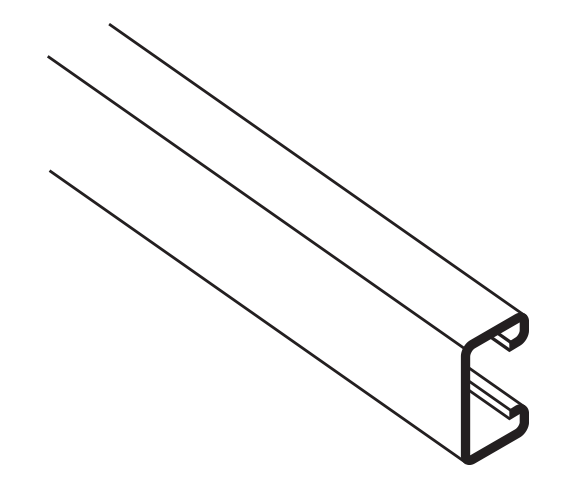

G3821 Solid, 10 ft. 1-3/8'' x 1-5/8'' Pre-Galvanized 12 g $550.00 N/A N/A N/A N/A
G3822 Solid, 20 ft. 1-3/8'' x 1-5/8'' Pre-Galvanized 12 g $550.00 N/A N/A N/A N/A

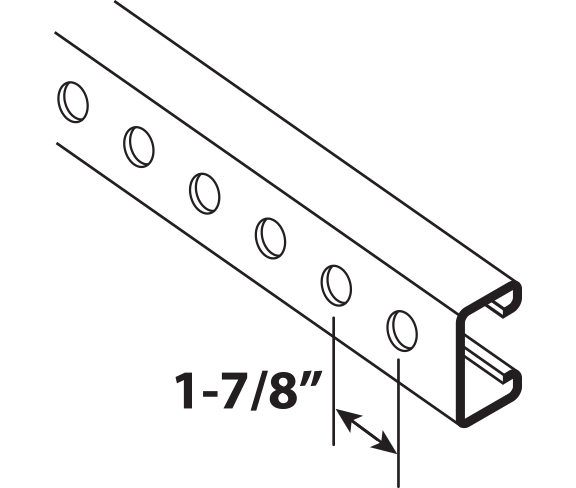

G382H1 With 9/16 in Hole, 10 ft. 1-3/8'' x 1-5/8'' Pre-Galvanized 12 g $550.00 N/A N/A N/A N/A

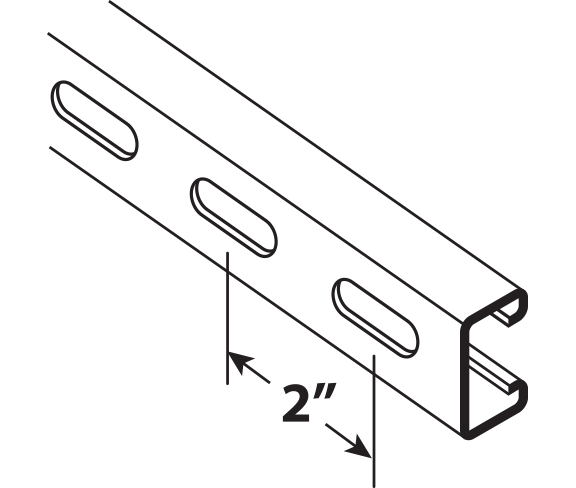

G382OS1 With 9/16 in x 1-1/8 in Slot, 10 ft 1-3/8' x 1-5/8' Pre-Galvanized 12 g $550.00 N/A N/A N/A N/A
G382OS2 With 9/16 in x 1-1/8 in Slot, 20 ft 1-3/8'' x 1-5/8'' Pre-Galvanized 12 g $550.00 N/A N/A N/A N/A

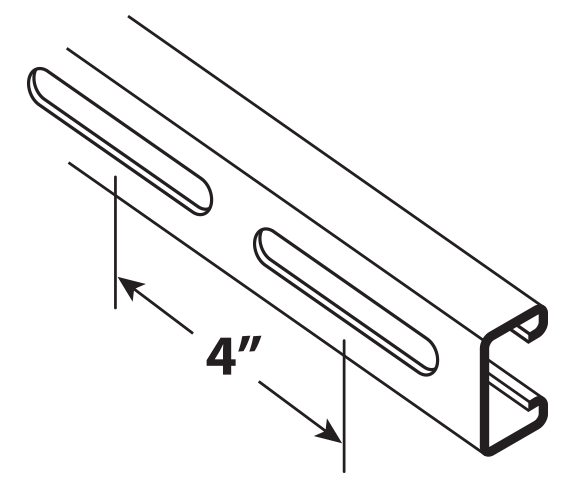

G382LS1 With 13/32 in x 3 in Slot, 10 ft. 1-3/8'' x 1-5/8'' Pre-Galvanized 12 g $550.00 N/A N/A N/A N/A
G382LS2 With 13/32 in x 3 in Slot, 20 ft. 1-3/8'' x 1-5/8'' Pre-Galvanized 12 g $550.00 N/A N/A N/A N/A
G382A1 Back-to-Back Welded, 10 ft. 2-3/4'' x 1-5/8'' Pre-Galvanized 12 g $1,550.00 N/A N/A N/A N/A
G382A2 Back-to-Back Welded, 20 ft. 2-3/4'' x 1-5/8'' Pre-Galvanized 12 g $1,550.00 N/A N/A N/A N/A

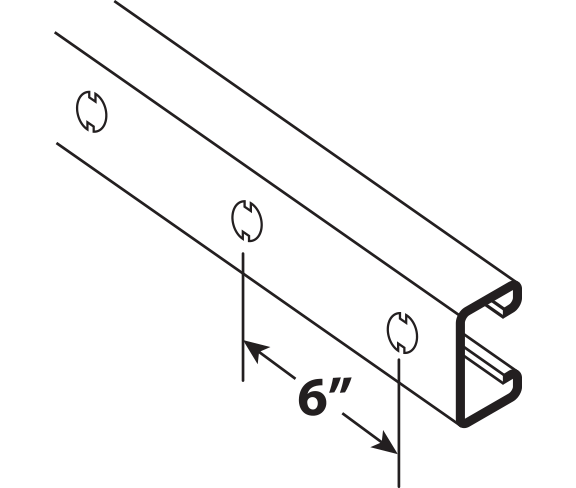

G382KO1 With 9/16 in Knock-out, 10 ft. 1-3/8'' x 1-5/8'' Pre-Galvanized 12 g $600.00 N/A N/A N/A N/A
G382KO2 With 9/16 in Knock-out, 20 ft. 1-3/8'' x 1-5/8'' Pre-Galvanized 12 g $600.00 N/A N/A N/A N/A
G382H2 With 9/16 in Hole, 20 ft. 1-3/8' x 1-5/8' Pre-Galvanized 12 g $550.00 N/A N/A N/A N/A
G382AOS1 Back-to-Back Welded, 10 ft. 2-3/4' x 1-5/8' Pre-Galvanized 12 g $0.00 N/A N/A N/A N/A
G382AOS2 Back-to-Back Welded, 20 ft. 1-3/8' x 1-5/8' Pre-Galvanized 12 g $0.00 N/A N/A N/A N/A

Green

PART # DESCRIPTION DIMENSION FINISH G. LIST
PRICE
DIST
PPD
DIST
1/4T
DIST
1/2T
DIST
FULL
G3821POP Solid, 10 ft. 1-3/8'' x 1-5/8'' Green 12 g $575.00 N/A N/A N/A N/A
G3822POP Solid, 20 ft. 1-3/8'' x 1-5/8'' Green 12 g $575.00 N/A N/A N/A N/A
G382H1POP With 9/16 in Hole, 10 ft. 1-3/8'' x 1-5/8'' Green 12 g $575.00 N/A N/A N/A N/A
G382H2POP With 9/16 in Hole, 20 ft. 1-3/8'' x 1-5/8'' Green 12 g $575.00 N/A N/A N/A N/A
G382OS1POP With 9/16 in x 1-1/8 in Slot, 10 ft 1-3/8'' x 1-5/8'' Green 12 g $575.00 N/A N/A N/A N/A
G382OS2POP With 9/16 in x 1-1/8 in Slot, 20 ft 1-3/8'' x 1-5/8'' Green 12 g $575.00 N/A N/A N/A N/A
G382LS1POP With 13/32 in x 3 in Slot, 10 ft. 1-3/8'' x 1-5/8'' Green 12 g $575.00 N/A N/A N/A N/A
G382LS2POP With 13/32 in x 3 in Slot, 20 ft. 1-3/8'' x 1-5/8'' Green 12 g $575.00 N/A N/A N/A N/A
G382A1POP Back-to-Back Welded, 10 ft. 2-3/4' x 1-5/8' Green 12 g $2,200.00 N/A N/A N/A N/A
G382A2POP Back-to-Back Welded, 20 ft. 2-3/4'' x 1-5/8'' Green 12 g $2,200.00 N/A N/A N/A N/A
G382KO1POP With 7/8 in Knock-out, 10 ft 1-3/8'' x 1-5/8'' Green 12 g $675.00 N/A N/A N/A N/A
G382KO2POP With 7/8 in Knock-out, 20 ft 1-3/8'' x 1-5/8'' Green 12 g $675.00 N/A N/A N/A N/A
G382AOS1POP Back-to-Back Welded, 10 ft. 2-3/4' x 1-5/8' Green 12 g $0.00 N/A N/A N/A N/A
G382AOS1POP Back-to-Back Welded, 20 ft. 2-3/4' x 1-5/8' Green 12 g $0.00 N/A N/A N/A N/A

Special Finishes / Types

PART # DESCRIPTION DIMENSION FINISH G. LIST
PRICE
DIST
PPD
DIST
1/4T
DIST
1/2T
DIST
FULL
G3821YZ Gregory Gold, Yellow Zinc Dichromate, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $625.00 N/A N/A N/A N/A
G3822YZ Gregory Gold, Yellow Zinc Dichromate, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $625.00 N/A N/A N/A N/A
G3821GN Galvannealed WIZcoat, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $565.00 N/A N/A N/A N/A
G3822GN Galvannealed WIZcoat, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $565.00 N/A N/A N/A N/A
G3821PO Plan, Pickled & Oiled, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $530.00 N/A N/A N/A N/A
G3822PO Plan, Pickled & Oiled, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $530.00 N/A N/A N/A N/A
G3821HDG Hot-dipped Galvanized, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $825.00 N/A N/A N/A N/A
G3822HDG Hot-dipped Galvanized, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $825.00 N/A N/A N/A N/A
G3821PVC PVC Coated, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $1,600.00 N/A N/A N/A N/A
G3822PVC PVC Coated, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $1,600.00 N/A N/A N/A N/A
G382H1YZ Gregory Gold, Yellow Zinc Dichromate, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382H2YZ Gregory Gold, Yellow Zinc Dichromate, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382OS1YZ Gregory Gold, Yellow Zinc Dichromate, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382OS2YZ Gregory Gold, Yellow Zinc Dichromate, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382LS1YZ Gregory Gold, Yellow Zinc Dichromate, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382LS2YZ Gregory Gold, Yellow Zinc Dichromate, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382A1YZ Back-to-Back Welded, Yellow Zinc Dichromate, 10 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382A2YZ Back-to-Back Welded, Yellow Zinc Dichromate, 20 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382AOS1YZ Back-to-Back Welded, Yellow Zinc Dichromate, 10 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382AOS2YZ Back-to-Back Welded, Yellow Zinc Dichromate, 20 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382KO1YZ Gregory Gold, Yellow Zinc Dichromate, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382KO2YZ Gregory Gold, Yellow Zinc Dichromate, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382H1GN Galvannealed WIZcoat, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382H2GN Galvannealed WIZcoat, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382OS1GN Galvannealed WIZcoat, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382OS2GN Galvannealed WIZcoat, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382LS1GN Galvannealed WIZcoat, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382LS2GN Galvannealed WIZcoat, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382A1GN Back-to-Back Welded, Galvannealed WIZcoat, 10 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382A2GN Back-to-Back Welded, Galvannealed WIZcoat, 20 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382AOS1GN Back-to-Back Welded, Galvannealed WIZcoat, 10 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382AOS2GN Back-to-Back Welded, Galvannealed WIZcoat, 20 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382KO1GN Galvannealed WIZcoat, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382KO2GN Galvannealed WIZcoat, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382H1PO Plain, Pickled & Oiled, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382H2PO Plain, Pickled & Oiled, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382OS1PO Plain, Pickled & Oiled, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382OS2PO Plain, Pickled & Oiled, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382LS1PO Plain, Pickled & Oiled, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382LS2PO Plain, Pickled & Oiled, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382A1PO Back-to-Back Welded, Plain, Pickled & Oiled, 10 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382A2PO Back-to-Back Welded, Plain, Pickled & Oiled, 20 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382AOS1PO Back-to-Back Welded, Plain, Pickled & Oiled, 10 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382AOS2PO Back-to-Back Welded, Plain, Pickled & Oiled, 20 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382KO1PO Plain, Pickled & Oiled, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382KO2PO Plain, Pickled & Oiled, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382H1HDG Hot-dipped Galvanized, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382H2HDG Hot-dipped Galvanized, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382OS1HDG Hot-dipped Galvanized, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382OS2HDG Hot-dipped Galvanized, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382LS1HDG Hot-dipped Galvanized, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382LS2HDG Hot-dipped Galvanized, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382A1HDG Back-to-Back Welded, Hot-dipped Galvanized, 10 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382A2HDG Back-to-Back Welded, Hot-dipped Galvanized, 20 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382AOS1HDG Back-to-Back Welded, Hot-dipped Galvanized, 10 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382AOS2HDG Back-to-Back Welded, Hot-dipped Galvanized, 20 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382KO1HDG Hot-dipped Galvanized, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382KO2HDG Hot-dipped Galvanized, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382H1PVC PVC Coated, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382H2PVC PVC Coated, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382OS1PVC PVC Coated, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382OS2PVC PVC Coated, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382LS1PVC PVC Coated, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382LS2PVC PVC Coated, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382A1PVC Back-to-Back Welded, PVC Coated, 10 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382A2PVC Back-to-Back Welded, PVC Coated, 20 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382AOS1PVC Back-to-Back Welded, PVC Coated, 10 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382AOS2PVC Back-to-Back Welded, PVC Coated, 20 ft. 2-3/4' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382KO1PVC PVC Coated, 10' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
G382KO2PVC PVC Coated, 20' 1-3/8' x 1-5/8' Special Finishes / Types 12 g $0.00 N/A N/A N/A N/A
