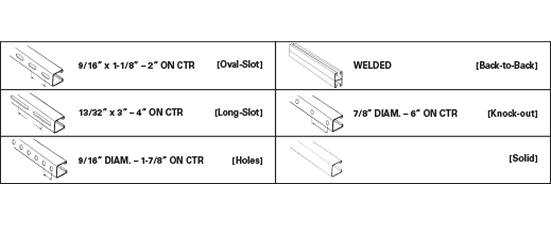

channel dimensions     channel slotholes

Weight is pounds/100 pieces.

For a custom order or hard-to-find part, please request it through our contact form.

CONTACT US

Pre-Galvanized

  • Part Number: G5821
  • UPC: 08153810102869
  • Description: Solid, 10 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"

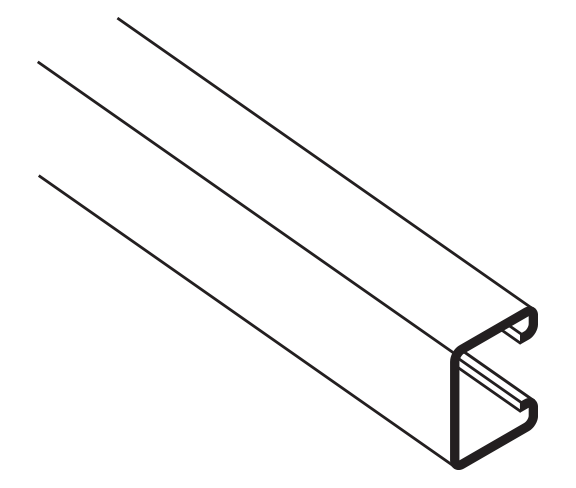

  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G5822
  • UPC: 08153810102951
  • Description: Solid, 20 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582H1
  • UPC: 08153810103040
  • Description: With 9/16 in. Hole, 10 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"

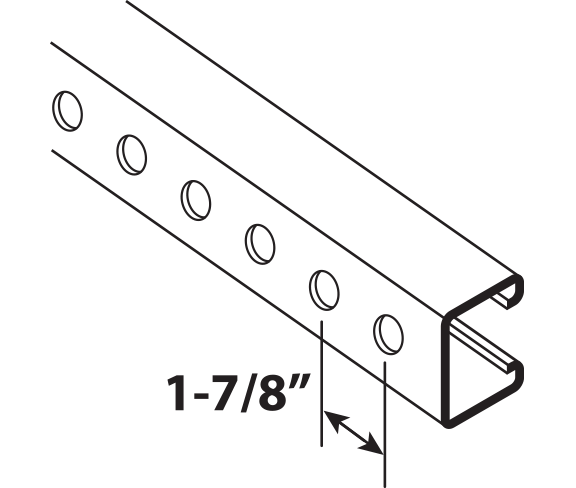

  • Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582H2
  • UPC: 08153810103118
  • Description: With 9/16 in. Hole 20 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582OS1
  • UPC: 08153810100094
  • Description: With 9/16 in. x 1-1/8 in Slot, 10'
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"

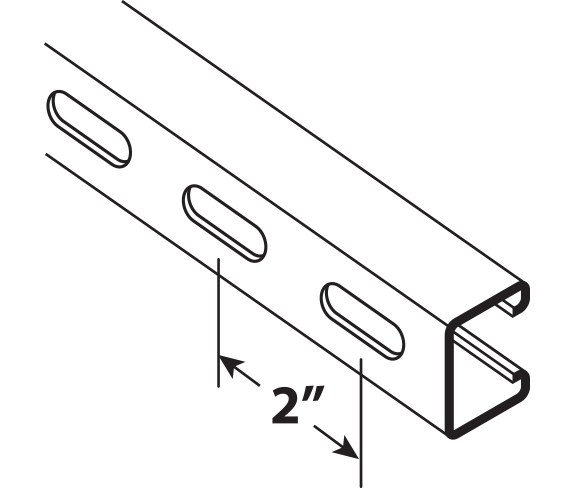

  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582OS2
  • UPC: 08153810100117
  • Description: With 9/16 in. x 1-1/8 in Slot, 20'
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582LS1
  • UPC: 08153810103163
  • Description: With 13/32 in. x 3 in. Slot, 10 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"

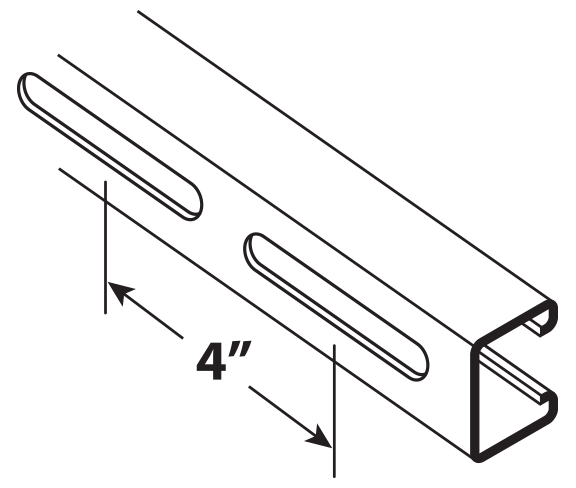

  • Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582LS2
  • UPC: 08153810103200
  • Description: With 13/32 in. x 3 in. Slot, 20 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582A1
  • UPC: 08153810103385
  • Description: Back-to-Back Welded, 10 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): 360
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582A2
  • UPC: 08153810103477
  • Description: Back-to-Back Welded, 20 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): 360
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582AOS1
  • UPC: 08153810100131
  • Description: 3-1/4" x 1-5/8", B2B, oval slot, 10'
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 360
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582AOS2
  • UPC: 08153810100148
  • Description: 3-1/4" x 1-5/8", B2B, oval slot, 20'
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 360
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582KO1
  • UPC: 727431905246
  • Description: With 9/16 in. Knock-out, 10 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"

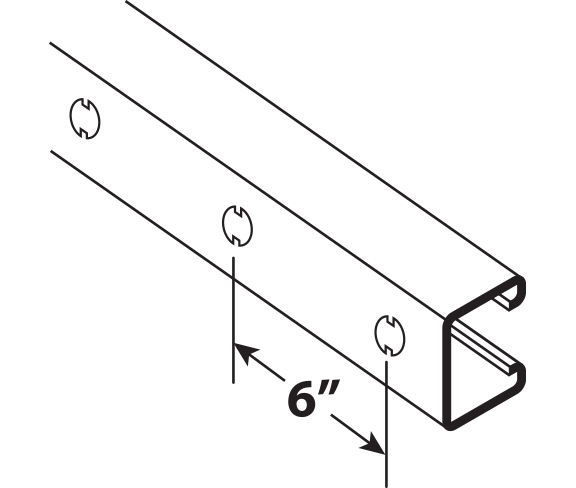

  • Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582KO2
  • UPC: 727431905277
  • Description: With 9/16 in. Knock-out, 20 ft.
  • Finish: Pre-Galvanized
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote

Green

  • Part Number: G5821POP
  • UPC: 08153810102913
  • Description: Solid, 10 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G5822POP
  • UPC: 08153810103019
  • Description: Solid, 20 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582H1POP
  • UPC: 08153810103088
  • Description: With 9/16 in. Hole, 10 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582H2POP
  • UPC: 08153810103132
  • Description: With 9/16 in. Hole, 20 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582OS1POP
  • UPC: 08153810100100
  • Description: With 13/32 in. x 3 in. Slot, 10 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582OS2POP
  • UPC: 08153810100124
  • Description: With 13/32 in. x 3 in. Slot, 20 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582LS1POP
  • UPC: 08153810103194
  • Description: With 13/32 in. x 3 in. Slot, 10 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582LS2POP
  • UPC: 08153810103224
  • Description: With 13/32 in. x 3 in. Slot, 20 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582A1POP
  • UPC: 08153810103439
  • Description: Back-to-Back Welded, 10 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): 360
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582A2POP
  • UPC: 08153810103507
  • Description: Back-to-Back Welded, 20 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): 360
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582AOS1POP
  • UPC: 08153810103590
  • Description: Back-to-Back Welded, 10 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582AOS2POP
  • UPC: 08153810103644
  • Description: Back-to-Back Welded, 20 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582KO1POP
  • UPC: 727431905260
  • Description: With 7/8 in Knock-out, 10 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582KO2POP
  • UPC: 727431905284
  • Description: With 7/8 in Knock-out, 20 ft.
  • Finish: Green
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
  • Standard Bundle: 500
  • Weight (per 100): 180
View Engineering Specs and Submittal Form Request a Quote

Stainless Steel

  • Part Number: G5821SS
  • UPC: 08153810102920
  • Description: Stainless Steel, 10'
  • Finish: Grade 304
  • Gauge: 10 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G5822SS
  • Description: Stainless Steel, 20'
  • Finish: Grade 304
  • Gauge: 11 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582H1SS
  • UPC: 727431904683
  • Description: Stainless Steel, 10'
  • Finish: Grade 304
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582H2SS
  • Description: Stainless Steel, 20'
  • Finish: Grade 304
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582OS1SS
  • UPC: 08153810103286
  • Description: Stainless Steel, 10'
  • Finish: Grade 304
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582OS2SS
  • UPC: 08153810103354
  • Description: Stainless Steel, 20'
  • Finish: Grade 304
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582LS1SS
  • UPC: 727431905338
  • Description: Stainless Steel, 10'
  • Finish: Grade 304
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582LS2SS
  • Description: Stainless Steel, 20'
  • Finish: Grade 304
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582A1SS
  • UPC: 08153810103446
  • Description: Stainless Steel, 10'
  • Finish: Grade 304
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582A2SS
  • UPC: 08153810103521
  • Description: Stainless Steel, 20'
  • Finish: Grade 304
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582AOS1SS
  • UPC: 08153810103606
  • Description: Stainless Steel, 10'
  • Finish: Grade 304
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582AOS2SS
  • UPC: 08153810103651
  • Description: Stainless Steel, 20'
  • Finish: Grade 304
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582KO1SS
  • Description: Stainless Steel, 10'
  • Finish: Grade 304
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582KO2SS
  • Description: Stainless Steel, 20'
  • Finish: Grade 304
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G5821SS(316)
  • UPC: 08153810102937
  • Description: Stainless Steel, 10'
  • Finish: Grade 316
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G5822SS(316)
  • UPC: 08153810103026
  • Description: Stainless Steel, 20'
  • Finish: Grade 316
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582H1SS(316)
  • Description: Stainless Steel, 10'
  • Finish: Grade 316
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582H2SS(316)
  • Description: Stainless Steel, 20'
  • Finish: Grade 316
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582OS1SS(316)
  • UPC: 08153810103293
  • Description: Stainless Steel, 10'
  • Finish: Grade 316
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582OS2SS(316)
  • UPC: 08153810103361
  • Description: Stainless Steel, 20'
  • Finish: Grade 316
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582LS1SS(316)
  • Description: Stainless Steel, 10'
  • Finish: Grade 316
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582LS2SS(316)
  • Description: Stainless Steel, 20'
  • Finish: Grade 316
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582A1SS(316)
  • UPC: 08153810103453
  • Description: Stainless Steel, 10'
  • Finish: Grade 316
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582A2SS(316)
  • UPC: 08153810103538
  • Description: Stainless Steel, 20'
  • Finish: Grade 316
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582AOS1SS(316)
  • UPC: 08153810103613
  • Description: Stainless Steel, 10'
  • Finish: Grade 316
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582AOS2SS(316)
  • UPC: 08153810103668
  • Description: Stainless Steel, 20'
  • Finish: Grade 316
  • Gauge: 12 g
  • Dimensions: 3-1/4" x 1-5/8"
  • Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582KO1SS(316)
  • Description: Stainless Steel, 10'
  • Finish: Grade 316
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582KO2SS(316)
  • Description: Stainless Steel, 20'
  • Finish: Grade 316
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote

Special Finishes/Types

  • Part Number: G5821YZ
  • UPC: 08153810102944
  • Description: Gregory Gold, Yellow Zinc Dichromate, 10'
  • Finish: Yellow Zinc
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G5822YZ
  • UPC: 08153810103033
  • Description: Gregory Gold, Yellow Zinc Dichromate, 20'
  • Finish: Yellow Zinc
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G5821AL
  • UPC: 08153810102876
  • Description: Aluminum Extruded, 10'
  • Finish: Aluminum
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G5822AL
  • UPC: 08153810102968
  • Description: Aluminum Extruded, 20'
  • Finish: Aluminum
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G5821GN
  • UPC: 08153810102883
  • Description: Galvannealed, WIZcoat, 10'
  • Finish: Galvanneal
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G5822GN
  • UPC: 08153810102975
  • Description: Galvannealed, WIZcoat, 20'
  • Finish: Galvanneal
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G5821PO
  • UPC: 08153810102906
  • Description: Plan, Pickled & Oiled, 10'
  • Finish: Plain
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G5822PO
  • UPC: 08153810102999
  • Description: Plan, Pickled & Oiled, 20'
  • Finish: Plain
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G5821HDG
  • UPC: 08153810102890
  • Description: Hot-dipped Galvanized, 10'
  • Finish: Hot Dip Galvanized
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G5822HDG
  • UPC: 08153810102982
  • Description: Hot-dipped Galvanized, 20'
  • Finish: Hot Dip Galvanized
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G5821PVC
  • Description: PVC Coated (Galvanized or Black), 10'
  • Finish: PVC
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G5822PVC
  • Description: PVC Coated (Galvanized or Black), 20'
  • Finish: PVC
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: Solid
  • Standard Bundle: 500
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
  • Part Number: G582H1AL
  • UPC: 08153810103057
  • Description: Aluminum Extruded, 10'
  • Finish: Aluminum
  • Gauge: 12 g
  • Dimensions: 1-5/8" x 1-5/8"
  • Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
  • Standard Bundle: Consult Factory
  • Weight (per 100): Consult Factory
View Engineering Specs and Submittal Form Request a Quote
