812 SERIES (12 GAUGE)

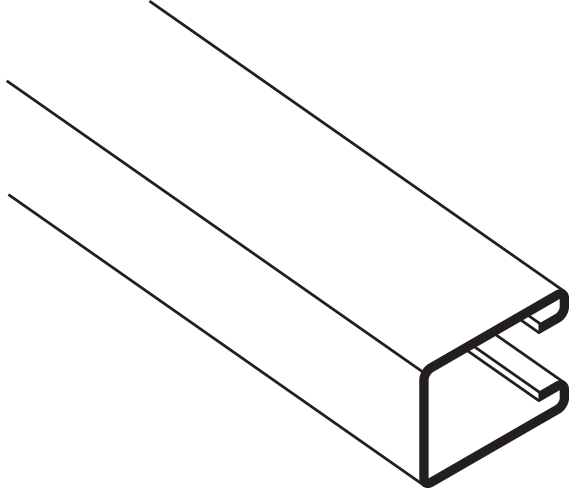

G8121: 3-1/4" x 1-5/8", solid, 10'

• Part Number: G8121
• UPC: 08153810104832
• Description: Solid, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8122: 3-1/4" x 1-5/8", solid, 20'

• Part Number: G8122
• UPC: 08153810104863
• Description: Solid, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

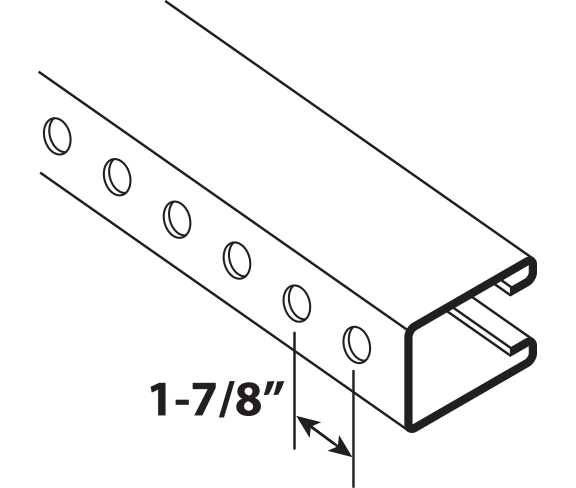

G812H1: 3-1/4" x 1-5/8", hole, 10'

• Part Number: G812H1
• Description: With 9/16 in. Hole, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812H2: 3-1/4" x 1-5/8", hole, 20'

• Part Number: G812H2
• UPC: 727431908841
• Description: With 9/16 in. Hole, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

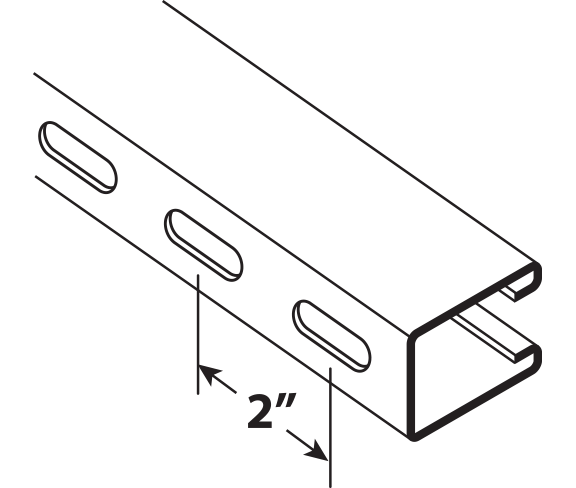

G812OS1: 3-1/4" x 1-5/8", oval slot, 10'

• Part Number: G812OS1
• UPC: 08153810104948
• Description: With 9/16 in. x 1-1/8 in. Slot, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812OS2: 3-1/4" x 1-5/8", oval slot, 20'

• Part Number: G812OS2
• UPC: 08153810104962
• Description: With 9/16 in. x 1-1/8 in. Slot, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

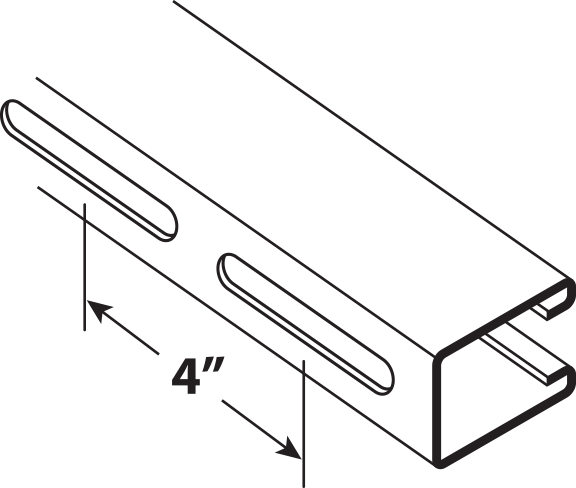

G812LS1: 3-1/4" x 1-5/8", long slot, 10'

• Part Number: G812LS1
• UPC: 08153810104917
• Description: With 13/32 in. x 3 in. Slot, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812LS2: 3-1/4" x 1-5/8", long slot, 20'

• Part Number: G812LS2
• UPC: 08153810104931
• Description: With 13/32 in. x 3 in. Slot, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A1: 6-1/2" x 1-5/8", solid, B2B, 10'

• Part Number: G812A1
• UPC: 727431908681
• Description: Back-to-Back Welded, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 300
• Weight (per 100): 626

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A2: 6-1/2" x 1-5/8", solid, B2B, 20'

• Part Number: G812A2
• UPC: 08153810104993
• Description: Back-to-Back Welded, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 300
• Weight (per 100): 626

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS1: 6-1/2" x 1-5/8", oval slot, B2B, 10'

• Part Number: G812AOS1
• UPC: 08153810105013
• Description: Back-to-Back Welded, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 300
• Weight (per 100): 626

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS2: 6-1/2" x 1-5/8", oval slot, B2B, 20'

• Part Number: G812AOS2
• UPC: 08153810105020
• Description: Back-to-Back Welded, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 300
• Weight (per 100): 626

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

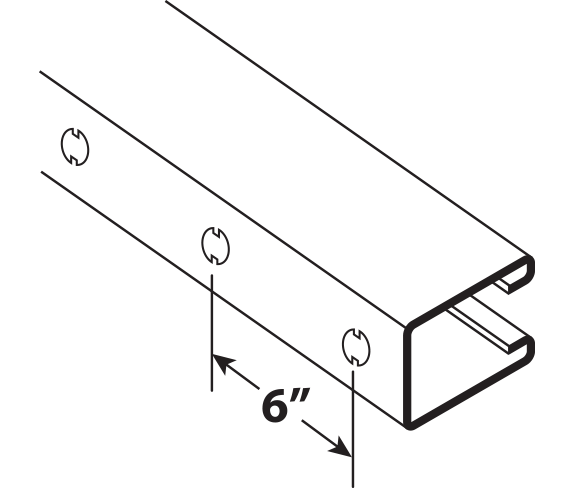

G812KO1: 3-1/4" x 1-5/8", knock-out, 10'

• Part Number: G812KO1
• UPC: 727431908858
• Description: With 9/16 in. Knock-out, 10 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

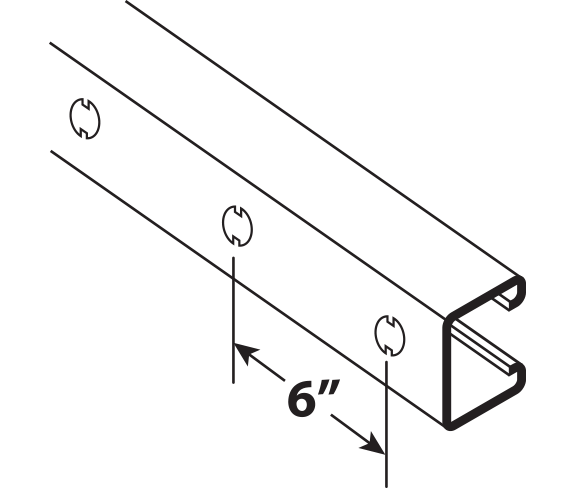

G582KO2: 1-5/8" x 1-5/8", knock-out, 20'

• Part Number: G582KO2
• UPC: 727431905277
• Description: With 9/16 in. Knock-out, 20 ft.
• Finish: Pre-Galvanized
• Gauge: 12 g
• Dimensions: 1-5/8" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: 500
• Weight (per 100): 180

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8121POP: 3-1/4" x 1-5/8", solid, 10'

• Part Number: G8121POP
• UPC: 08153810104856
• Description: Solid, 10 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8122POP: 3-1/4" x 1-5/8", solid, 20'

• Part Number: G8122POP
• UPC: 08153810104894
• Description: Solid, 20 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812H1POP: 3-1/4" x 1-5/8", hole, 10'

• Part Number: G812H1POP
• Description: With 9/16 in. Hole, 10 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812H2POP: 3-1/4" x 1-5/8", hole, 20'

• Part Number: G812H2POP
• Description: With 9/16 in. Hole, 20 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812OS1POP: 3-1/4" x 1-5/8", oval slot, 10'

• Part Number: G812OS1POP
• UPC: 08153810104955
• Description: With 9/16 in. x 1-1/8 in. Slot, 10 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812OS2POP: 3-1/4" x 1-5/8", oval slot, 20'

• Part Number: G812OS2POP
• UPC: 08153810104979
• Description: With 9/16 in. x 1-1/8 in. Slot, 20 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812LS1POP: 3-1/4" x 1-5/8", long slot, 10'

• Part Number: G812LS1POP
• UPC: 08153810104924
• Description: With 13/32 in. x 3 in. Slot, 10 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812LS2POP: 3-1/4" x 1-5/8", long slot, 20'

• Part Number: G812LS2POP
• Description: With 13/32 in. x 3 in. Slot, 20 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A1POP: 6-1/2" x 1-5/8", solid, B2B, 10'

• Part Number: G812A1POP
• UPC: 727431908711
• Description: Back-to-Back Welded, 10 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 300
• Weight (per 100): 626

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A2POP: 6-1/2" x 1-5/8", solid, B2B, 20'

• Part Number: G812A2POP
• UPC: 08153810105006
• Description: Back-to-Back Welded, 20 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: 300
• Weight (per 100): 626

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS1POP: 6-1/2" x 1-5/8", oval slot, B2B, 10'

• Part Number: G812AOS1POP
• Description: Back-to-Back Welded, 10 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 300
• Weight (per 100): 626

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS2POP: 6-1/2" x 1-5/8", oval slot, B2B, 20'

• Part Number: G812AOS2POP
• UPC: 08153810105037
• Description: Back-to-Back Welded, 20 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: 300
• Weight (per 100): 626

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812KO1POP: 3-1/4" x 1-5/8", knock-out, 10'

• Part Number: G812KO1POP
• Description: With 7/8 in Knock-out, 10 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812KO2POP: 3-1/4" x 1-5/8", knock-out, 20'

• Part Number: G812KO2POP
• Description: With 7/8 in Knock-out, 20 ft.
• Finish: Green
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: 300
• Weight (per 100): 313

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8121SS: 3-1/4" x 1-5/8", solid, 10'

• Part Number: G8121SS
• UPC: 727431908636
• Description: Stainless Steel, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8122SS: 3-1/4" x 1-5/8", solid, 20'

• Part Number: G8122SS
• UPC: 727431908650
• Description: Stainless Steel, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812H1SS: 3-1/4" x 1-5/8", hole, 10'

• Part Number: G812H1SS
• Description: Stainless Steel, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812H2SS: 3-1/4" x 1-5/8", hole, 20'

• Part Number: G812H2SS
• Description: Stainless Steel, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"

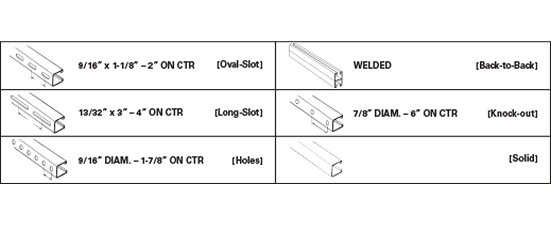

• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812OS1SS: 3-1/4" x 1-5/8", oval slot, 10'

• Part Number: G812OS1SS
• UPC: 727431908957
• Description: Stainless Steel, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812OS2SS: 3-1/4" x 1-5/8", oval slot, 20'

• Part Number: G812OS2SS
• UPC: 727431908995
• Description: Stainless Steel, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812LS1SS: 3-1/4" x 1-5/8", long slot, 10'

• Part Number: G812LS1SS
• Description: Stainless Steel, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812LS2SS: 3-1/4" x 1-5/8", long slot, 20'

• Part Number: G812LS2SS
• Description: Stainless Steel, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A1SS: 6-1/2" x 1-5/8", solid, B2B, 10'

• Part Number: G812A1SS
• Description: Back-to-Back Welded, Stainless Steel, 10 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A2SS: 6-1/2" x 1-5/8", solid, B2B, 20'

• Part Number: G812A2SS
• Description: Back-to-Back Welded, Stainless Steel, 20 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS1SS: 6-1/2" x 1-5/8", oval slot, B2B, 10'

• Part Number: G812AOS1SS
• Description: Back-to-Back Welded, Stainless Steel, 10 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS2SS: 6-1/2" x 1-5/8", oval slot, B2B, 20'

• Part Number: G812AOS2SS
• Description: Back-to-Back Welded, Stainless Steel, 20 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812KO1SS: 3-1/4" x 1-5/8", knock-out, 10'

• Part Number: G812KO1SS
• Description: Stainless Steel, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812KO2SS: 3-1/4" x 1-5/8", knock-out, 20'

• Part Number: G812KO2SS
• Description: Stainless Steel, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8121SS(316): 3-1/4" x 1-5/8", solid, 10'

• Part Number: G8121SS(316)
• Description: Stainless Steel, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8122SS(316): 3-1/4" x 1-5/8", solid, 20'

• Part Number: G8122SS(316)
• Description: Stainless Steel, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812H1SS(316): 3-1/4" x 1-5/8", hole, 10'

• Part Number: G812H1SS(316)
• Description: Stainless Steel, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812H2SS(316): 3-1/4" x 1-5/8", hole, 20'

• Part Number: G812H2SS(316)
• Description: Stainless Steel, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812OS1SS(316): 3-1/4" x 1-5/8", oval slot, 10'

• Part Number: G812OS1SS(316)
• UPC: 727431908964
• Description: Stainless Steel, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812OS2SS(316): 3-1/4" x 1-5/8", oval slot, 20'

• Part Number: G812OS2SS(316)
• UPC: 727431909008
• Description: Stainless Steel, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812LS1SS(316): 3-1/4" x 1-5/8", long slot, 10'

• Part Number: G812LS1SS(316)
• Description: Stainless Steel, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812LS2SS(316): 3-1/4" x 1-5/8", long slot, 20'

• Part Number: G812LS2SS(316)
• Description: Stainless Steel, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A1SS(316): 6-1/2" x 1-5/8", solid, B2B, 10'

• Part Number: G812A1SS(316)
• Description: Back-to-Back Welded, Stainless Steel, 10 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A2SS(316): 6-1/2" x 1-5/8", solid, B2B, 20'

• Part Number: G812A2SS(316)
• Description: Back-to-Back Welded, Stainless Steel, 20 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS1SS(316): 6-1/2" x 1-5/8", oval slot, B2B, 10'

• Part Number: G812AOS1SS(316)
• Description: Back-to-Back Welded, Stainless Steel, 10 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS2SS(316): 6-1/2" x 1-5/8", oval slot, B2B, 20'

• Part Number: G812AOS2SS(316)
• Description: Back-to-Back Welded, Stainless Steel, 20 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812KO1SS(316): 3-1/4" x 1-5/8", knock-out, 10'

• Part Number: G812KO1SS(316)
• Description: Stainless Steel, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812KO2SS(316): 3-1/4" x 1-5/8", knock-out, 20'

• Part Number: G812KO2SS(316)
• Description: Stainless Steel, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8121YZ: 3-1/4" x 1-5/8", solid, 10'

• Part Number: G8121YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8122YZ: 3-1/4" x 1-5/8", solid, 20'

• Part Number: G8122YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8121GN: 3-1/4" x 1-5/8", solid, 10'

• Part Number: G8121GN
• Description: Galvannealed, WIZcoat, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8122GN: 3-1/4" x 1-5/8", solid, 20'

• Part Number: G8122GN
• Description: Galvannealed, WIZcoat, 20'
• Finish: Special Finishes / Types
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8121PO: 3-1/4" x 1-5/8", solid, 10'

• Part Number: G8121PO
• UPC: 08153810104849
• Description: Plan, Pickled & Oiled, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8122PO: 3-1/4" x 1-5/8", solid, 20'

• Part Number: G8122PO
• UPC: 08153810104887
• Description: Plan, Pickled & Oiled, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8121HDG: 3-1/4" x 1-5/8", solid, 10'

• Part Number: G8121HDG
• UPC: 727431908629
• Description: Hot-dipped Galvanized, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8122HDG: 3-1/4" x 1-5/8", solid, 20'

• Part Number: G8122HDG
• UPC: 08153810104870
• Description: Hot-dipped Galvanized, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8121PVC: 3-1/4" x 1-5/8", solid, 10'

• Part Number: G8121PVC
• Description: PVC Coated, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8122PVC: 3-1/4" x 1-5/8", solid, 20'

• Part Number: G8122PVC
• Description: PVC Coated, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812H1YZ: 3-1/4" x 1-5/8", hole, 10'

• Part Number: G812H1YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812H2YZ: 3-1/4" x 1-5/8", hole, 20'

• Part Number: G812H2YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812OS1YZ: 3-1/4" x 1-5/8", oval slot, 10'

• Part Number: G812OS1YZ
• UPC: 727431908971
• Description: Gregory Gold, Yellow Zinc Dichromate, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812OS2YZ: 3-1/4" x 1-5/8", oval slot, 20'

• Part Number: G812OS2YZ
• UPC: 727431909015
• Description: Gregory Gold, Yellow Zinc Dichromate, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812LS1YZ: 3-1/4" x 1-5/8", long slot, 10'

• Part Number: G812LS1YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812LS2YZ: 3-1/4" x 1-5/8", long slot, 20'

• Part Number: G812LS2YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A1YZ: 6-1/2" x 1-5/8", solid, B2B, 10'

• Part Number: G812A1YZ
• Description: Back-to-Back Welded, Yellow Zinc Dichromate, 10 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A2YZ: 6-1/2" x 1-5/8", solid, B2B, 20'

• Part Number: G812A2YZ
• Description: Back-to-Back Welded, Yellow Zinc Dichromate, 20 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS1YZ: 6-1/2" x 1-5/8", solid, B2B, 10'

• Part Number: G812AOS1YZ
• Description: Back-to-Back Welded, Yellow Zinc Dichromate, 10 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS2YZ: 6-1/2" x 1-5/8", B2B, oval slot, 20'

• Part Number: G812AOS2YZ
• Description: Back-to-Back Welded, Yellow Zinc Dichromate, 20 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812KO1YZ: 3-1/4" x 1-5/8", knock-out, 10'

• Part Number: G812KO1YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812KO2YZ: 3-1/4" x 1-5/8", knock-out, 20'

• Part Number: G812KO2YZ
• Description: Gregory Gold, Yellow Zinc Dichromate, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812H1PO: 3-1/4" x 1-5/8", hole, 10'

• Part Number: G812H1PO
• Description: Plan, Pickled & Oiled, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812H2PO: 3-1/4" x 1-5/8", hole, 20'

• Part Number: G812H2PO
• Description: Plan, Pickled & Oiled, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812OS1PO: 3-1/4" x 1-5/8", oval slot, 10'

• Part Number: G812OS1PO
• UPC: 727431908940
• Description: Plan, Pickled & Oiled, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812OS2PO: 3-1/4" x 1-5/8", oval slot, 20'

• Part Number: G812OS2PO
• UPC: 727431908988
• Description: Plan, Pickled & Oiled, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812LS1PO: 3-1/4" x 1-5/8", long slot, 10'

• Part Number: G812LS1PO
• UPC: 727431908865
• Description: Plan, Pickled & Oiled, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812LS2PO: 3-1/4" x 1-5/8", long slot, 20'

• Part Number: G812LS2PO
• Description: Plan, Pickled & Oiled, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A1PO: 6-1/2" x 1-5/8", solid, B2B, 10'

• Part Number: G812A1PO
• UPC: 727431908704
• Description: Back-to-Back Welded, Plain, Pickled and Oiled, 10 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A2PO: 6-1/2" x 1-5/8", solid, B2B, 20'

• Part Number: G812A2PO
• UPC: 727431908735
• Description: Back-to-Back Welded, Plain, Pickled and Oiled, 20 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS1PO: 6-1/2" x 1-5/8", solid, B2B, 10'

• Part Number: G812AOS1PO
• Description: Back-to-Back Welded, Plain, Pickled and Oiled, 10 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS2PO: 6-1/2" x 1-5/8", B2B, oval slot, 20'

• Part Number: G812AOS2PO
• UPC: 727431908797
• Description: Back-to-Back Welded, Plain, Pickled and Oiled, 20 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812KO1PO: 3-1/4" x 1-5/8", knock-out, 10'

• Part Number: G812KO1PO
• Description: Plan, Pickled & Oiled, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812KO2PO: 3-1/4" x 1-5/8", knock-out, 20'

• Part Number: G812KO2PO
• Description: Plan, Pickled & Oiled, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812H1HDG: 3-1/4" x 1-5/8", hole, 10'

• Part Number: G812H1HDG
• Description: Hot-dipped Galvanized, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812H2HDG: 3-1/4" x 1-5/8", hole, 20'

• Part Number: G812H2HDG
• Description: Hot-dipped Galvanized, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812OS1HDG: 3-1/4" x 1-5/8", oval slot, 10'

• Part Number: G812OS1HDG
• UPC: 727431908933
• Description: Hot-dipped Galvanized, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812OS2HDG: 3-1/4" x 1-5/8", oval slot, 20'

• Part Number: G812OS2HDG
• Description: Hot-dipped Galvanized, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812LS1HDG: 3-1/4" x 1-5/8", long slot, 10'

• Part Number: G812LS1HDG
• Description: Hot-dipped Galvanized, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812LS2HDG: 3-1/4" x 1-5/8", long slot, 20'

• Part Number: G812LS2HDG
• Description: Hot-dipped Galvanized, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A1HDG: 6-1/2" x 1-5/8", solid, B2B, 10'

• Part Number: G812A1HDG
• Description: Back-to-Back Welded, Hot-dipped Galvanized, 10 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A2HDG: 6-1/2" x 1-5/8", solid, B2B, 20'

• Part Number: G812A2HDG
• UPC: 727431908728
• Description: Back-to-Back Welded, Hot-dipped Galvanized, 20 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS1HDG: 6-1/2" x 1-5/8", solid, B2B, 10'

• Part Number: G812AOS1HDG
• Description: Back-to-Back Welded, Hot-dipped Galvanized, 10 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS2HDG: 6-1/2" x 1-5/8", B2B, oval slot, 20'

• Part Number: G812AOS2HDG
• UPC: 727431908780
• Description: Back-to-Back Welded, Hot-dipped Galvanized, 20 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812KO1HDG: 3-1/4" x 1-5/8", knock-out, 10'

• Part Number: G812KO1HDG
• Description: Hot-dipped Galvanized, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812KO2HDG: 3-1/4" x 1-5/8", knock-out, 20'

• Part Number: G812KO2HDG
• Description: Hot-dipped Galvanized, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8121AL: 3-1/4" x 1-5/8", solid, 10'

• Part Number: G8121AL
• Description: Aluminum Extruded, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G8122AL: 3-1/4" x 1-5/8", solid, 20'

• Part Number: G8122AL
• Description: Aluminum Extruded, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812H1AL: 3-1/4" x 1-5/8", hole, 10'

• Part Number: G812H1AL
• Description: Aluminum Extruded, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812H2AL: 3-1/4" x 1-5/8", hole, 20'

• Part Number: G812H2AL
• Description: Aluminum Extruded, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812OS1AL: 3-1/4" x 1-5/8", oval slot, 10'

• Part Number: G812OS1AL
• UPC: 727431908926
• Description: Aluminum Extruded, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812OS2AL: 3-1/4" x 1-5/8", oval slot, 20'

• Part Number: G812OS2AL
• Description: Aluminum Extruded, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812LS1AL: 3-1/4" x 1-5/8", long slot, 10'

• Part Number: G812LS1AL
• Description: Aluminum Extruded, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812LS2AL: 3-1/4" x 1-5/8", long slot, 20'

• Part Number: G812LS2AL
• Description: Aluminum Extruded, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A1AL: 6-1/2" x 1-5/8", solid, B2B, 10'

• Part Number: G812A1AL
• Description: Back-to-Back Welded, Aluminum Extruded, 10 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A2AL: 6-1/2" x 1-5/8", solid, B2B, 20'

• Part Number: G812A2AL
• Description: Back-to-Back Welded, Aluminum Extruded, 20 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS1AL: 6-1/2" x 1-5/8", solid, B2B, 10'

• Part Number: G812AOS1AL
• Description: Back-to-Back Welded, Aluminum Extruded, 10 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS2AL: 6-1/2" x 1-5/8", B2B, oval slot, 20'

• Part Number: G812AOS2AL
• Description: Back-to-Back Welded, Aluminum Extruded, 20 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812KO1AL: 3-1/4" x 1-5/8", knock-out, 10'

• Part Number: G812KO1AL
• Description: Aluminum Extruded, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812KO2AL: 3-1/4" x 1-5/8", knock-out, 20'

• Part Number: G812KO2AL
• Description: Aluminum Extruded, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812H1PVC: 3-1/4" x 1-5/8", hole, 10'

• Part Number: G812H1PVC
• Description: PVC Coated, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812H2PVC: 3-1/4" x 1-5/8", hole, 20'

• Part Number: G812H2PVC
• Description: PVC Coated, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: H (Holes) 9/16" diam. 1-7/8" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812OS1PVC: 3-1/4" x 1-5/8", oval slot, 10'

• Part Number: G812OS1PVC
• Description: PVC Coated, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812OS2PVC: 3-1/4" x 1-5/8", oval slot, 20'

• Part Number: G812OS2PVC
• UPC: 08153810104986
• Description: PVC Coated, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812LS1PVC: 3-1/4" x 1-5/8", long slot, 10'

• Part Number: G812LS1PVC
• Description: PVC Coated, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812LS2PVC: 3-1/4" x 1-5/8", long slot, 20'

• Part Number: G812LS2PVC
• Description: PVC Coated, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: LS (Long Slot) 13/32" x 3"-4" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A1PVC: 6-1/2" x 1-5/8", solid, B2B, 10'

• Part Number: G812A1PVC
• Description: Back-to-Back Welded, PVC Coated, 10 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812A2PVC: 6-1/2" x 1-5/8", solid, B2B, 20'

• Part Number: G812A2PVC
• Description: Back-to-Back Welded, PVC Coated, 20 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: Solid
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS1PVC: 6-1/2" x 1-5/8", oval slot, B2B, 10'

• Part Number: G812AOS1PVC
• Description: Back-to-Back Welded, PVC Coated, 10 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812AOS2PVC: 6-1/2" x 1-5/8", B2B, oval slot, 20'

• Part Number: G812AOS2PVC
• Description: Back-to-Back Welded, PVC Coated, 20 ft.
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 6-1/2" x 1-5/8"
• Slot Type: OS(oval slot) 9/16" x 1-1/8"-2" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812KO1PVC: 3-1/4" x 1-5/8", knock-out, 10'

• Part Number: G812KO1PVC
• Description: PVC Coated, 10'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request

G812KO2PVC: 3-1/4" x 1-5/8", knock-out, 20'

• Part Number: G812KO2PVC
• Description: PVC Coated, 20'
• Finish: Special Finishes / Types
• Gauge: 12 g
• Dimensions: 3-1/4" x 1-5/8"
• Slot Type: KO (Knock-out) 7/8" diam. 6" on CTR
• Standard Bundle: Consult Factory
• Weight (per 100): Consult Factory

View Engineering Specs and Submittal Form Request a Quote Add to Submittal Request
