Beam Clamps

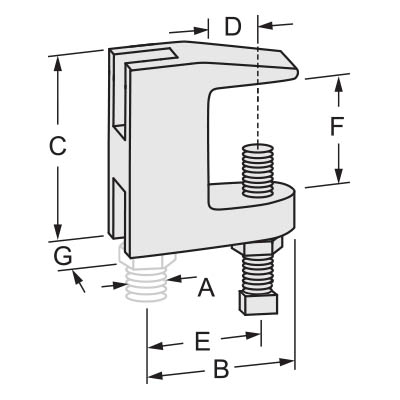

UNIVERSAL (JUNIOR/TOP/MALLEABLE/SMALL MOUTH) BEAM CLAMP – SERIES W100

CATEGORY PART # ROD SIZE A SIZE B HIGH C SIZE D SIZE E SIZE F SIZE G MAX REC LOAD LBS CARTON QTY LBS PER 100PCS
UNIVERSAL BEAM CLAMP SER W100 W100103 3/8 1” 1-1/2” 1/2” 1/2” 3/4” 7/8” 400 100 33
UNIVERSAL BEAM CLAMP SER W100 W100104 1/2 1” 1-1/2” 1/2” 1/2” 3/4” 7/8” 500 100 33
UNIVERSAL BEAM CLAMP SER W100 W100105 5/8 1-1/2” 1-1/2” 1/2” 1/2” 3/4” 1” 600 50 22
UNIVERSAL BEAM CLAMP SER W100 W100106 3/4 1-7/8” 1-3/4” 5/8” 5/8” 1” 1-1/4” 800 50 88
UNIVERSAL BEAM CLAMP SER W100 W100107 7/8 2” 1-3/4” 5/8” 5/8” 1” 1-1/4” 1200 25 79

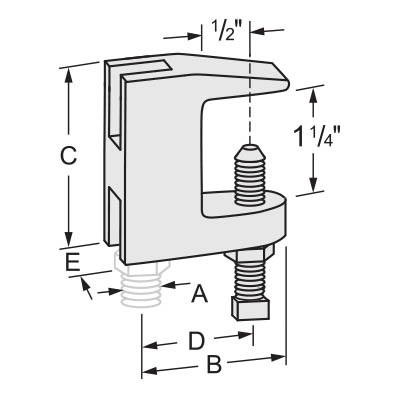

WIDE THROAT BEAM CLAMP – SERIES W110

CATEGORY PART # ROD SIZE A SIZE B HIGH C SIZE D SIZE E MAX REC LOAD LBS CARTON QTY LBS PER 100PCS
WIDE THROAT BEAM CLAMP SER W110 W110103 3/8 1-5/8” 2” 1” 7/8” 400 50 28
WIDE THROAT BEAM CLAMP SER W110 W110104 1/2 1-5/8” 2” 1” 7/8” 500 50 34
WIDE THROAT BEAM CLAMP SER W110 W110105 5/8 1-3/4” 2-1/4” 1-1/4” 1” 600 50 66
WIDE THROAT BEAM CLAMP SER W110 W110106 3/4 1-7/8” 2-3/8” 1-3/8” 1-1/4” 800 50 83

Purlin Clamp - Series W140

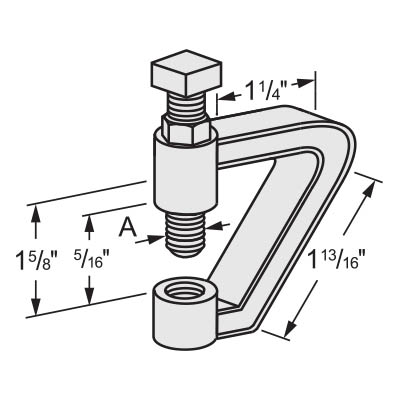

PURLIN CLAMP – SERIES W140

CATEGORY PART # FINISH ROD SIZE A MAX PIPE MAX REC LOAD LBS CARTON QTY LBS PER 100PCS
PURLIN CLAMP SER W140 W140103 PLAIN 3/8 4” 400 25 82
PURLIN CLAMP SER W140 W140203 ELECTROGALV 3/8 4” 400 25 82

Rod Insulator

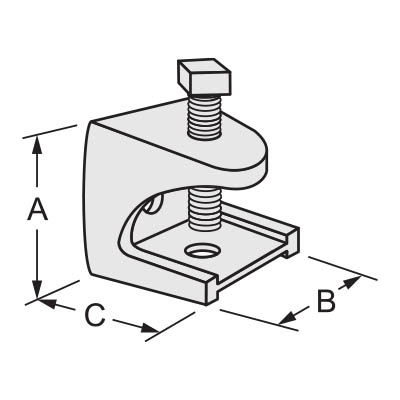

ROD INSULATOR – SERIES W130

CATEGORY PART # ROD SIZE HIGH A WIDE B DEEP C CARTON QTY LBS PER 100PCS
ROD INSULATOR SER W130 W130202 1/4 1-1/8” 1-3/8” 1-3/8” 25 25
ROD INSULATOR SER W130 W130203 3/8 1-3/16” 1-3/8” 1-3/8” 10 95
ROD INSULATOR SER W130 W130L203 3/8 Large body 2” 2” 2” 10 195

Pipe Alignment Guides

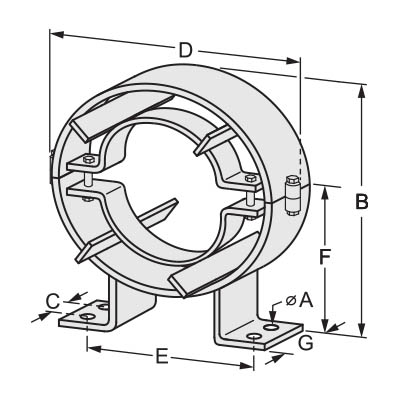

PIPE ALIGNMENT GUIDE – SERIES W120

CATEGORY PART # GUIDE SIZE PIPE SIZE INSULATION THICKNESS SIZE B SIZE C SIZE D SIZE E SIZE F SIZE G LBS PER 100PCS
PIPE ALIGNMENT GUIDE – SERIES W120 W120110 1 1” 1” 5-3/4” 1-3/4” 5-7/8” 4-1/4” 3-1/2” 3” 60
PIPE ALIGNMENT GUIDE – SERIES W120 W120120 2 1-1/4” to 2” 1” 6-3/4” 1-3/4” 7” 4-1/2” 4” 3” 80
PIPE ALIGNMENT GUIDE – SERIES W120 W120121 2 1-1/4” to 2” 1-1/2” 6-3/4” 1-3/4” 7” 4-1/2” 4” 3” 80
PIPE ALIGNMENT GUIDE – SERIES W120 W120130 3 2-1/2” 1” 7-5/8” 1-3/4” 8” 5-1/4” 4-3/8” 3” 100
PIPE ALIGNMENT GUIDE – SERIES W120 W120131 3 1-1/4” to 2” 1-1/2” 7-5/8” 1-3/4” 8” 5-1/4” 4-3/8” 3” 100
PIPE ALIGNMENT GUIDE – SERIES W120 W120132 3 1” 2” 7-5/8” 1-3/4” 8” 5-1/4” 4-3/8” 3” 100
PIPE ALIGNMENT GUIDE – SERIES W120 W120140 4 3” to 4” 1” 9-1/2” 1-3/4” 10-3/8” 6-1/4” 5-1/4” 3” 130
PIPE ALIGNMENT GUIDE – SERIES W120 W120141 4 2-1/2” to 3-1/2” 1-1/2” 9-1/2” 1-3/4” 10-3/8” 6-1/4” 5-1/4” 3” 130
PIPE ALIGNMENT GUIDE – SERIES W120 W120142 4 1-1/4” to 2-1/2” 2” 9-1/2” 1-3/4” 10-3/8” 6-1/4” 5-1/4” 3” 130
PIPE ALIGNMENT GUIDE – SERIES W120 W120143 4 1” to 2” 2-1/2” 9-1/2” 1-3/4” 10-3/8” 6-1/4” 5-1/4” 3” 130
PIPE ALIGNMENT GUIDE – SERIES W120 W120144 4 1” 3” 9-1/2” 1-3/4” 10-3/8” 6-1/4” 5-1/4” 3” 130
PIPE ALIGNMENT GUIDE – SERIES W120 W120150 5 5” to 6” 1” 11-5/8” 2-3/4” 12-1/2” 7-1/4” 6-1/4” 3” 200
PIPE ALIGNMENT GUIDE – SERIES W120 W120151 5 4” to 5” 1-1/2” 11-5/8” 2-3/4” 12-1/2” 7-1/4” 6-1/4” 3” 200
PIPE ALIGNMENT GUIDE – SERIES W120 W120152 5 3” to 4” 2” 11-5/8” 2-3/4” 12-1/2” 7-1/4” 6-1/4” 3” 200
PIPE ALIGNMENT GUIDE – SERIES W120 W120153 5 2-1/2” to 3-1/2” 2-1/2” 11-5/8” 2-3/4” 12-1/2” 7-1/4” 6-1/4” 3” 200
PIPE ALIGNMENT GUIDE – SERIES W120 W120154 5 1-1/4” to 2-1/2” 3” 11-5/8” 2-3/4” 12-1/2” 7-1/4” 6-1/4” 3” 200
PIPE ALIGNMENT GUIDE – SERIES W120 W120155 5 1” 4” 11-5/8” 2-3/4” 12-1/2” 7-1/4” 6-1/4” 3” 200
PIPE ALIGNMENT GUIDE – SERIES W120 W120160 6 6” 1-1/2” 13-5/8” 2-3/4” 14-1/2” 8-1/4” 7-1/4” 4” 225
PIPE ALIGNMENT GUIDE – SERIES W120 W120161 6 5” to 6” 2” 13-5/8” 2-3/4” 14-1/2” 8-1/4” 7-1/4” 4” 225
PIPE ALIGNMENT GUIDE – SERIES W120 W120162 6 4” to 5” 2-1/2” 13-5/8” 2-3/4” 14-1/2” 8-1/4” 7-1/4” 4” 225
PIPE ALIGNMENT GUIDE – SERIES W120 W120163 6 3” to 4” 3” 13-5/8” 2-3/4” 14-1/2” 8-1/4” 7-1/4” 4” 225
PIPE ALIGNMENT GUIDE – SERIES W120 W120164 6 1-1/4” to 2-1/2” 4” 13-5/8” 2-3/4” 14-1/2” 8-1/4” 7-1/4” 4” 225
PIPE ALIGNMENT GUIDE – SERIES W120 W120170 7 8” 1-1/2” 15” 4” 15-3/4” 10” 8” 4” 400
PIPE ALIGNMENT GUIDE – SERIES W120 W120171 7 8” 2” 15” 4” 15-3/4” 10” 8” 4” 400
PIPE ALIGNMENT GUIDE – SERIES W120 W120172 7 6” 2-1/2” 15” 4” 15-3/4” 10” 8” 4” 400
PIPE ALIGNMENT GUIDE – SERIES W120 W120173 7 5” to 6” 3” 15” 4” 15-3/4” 10” 8” 4” 400
PIPE ALIGNMENT GUIDE – SERIES W120 W120174 7 3” to 4” 4” 15” 4” 15-3/4” 10” 8” 4” 400
PIPE ALIGNMENT GUIDE – SERIES W120 W120180 8 10” 1-1/2” 17” 4” 17-3/4” 11” 9” 6” 450
PIPE ALIGNMENT GUIDE – SERIES W120 W120181 8 10” 2” 17” 4” 17-3/4” 11” 9” 6” 450
PIPE ALIGNMENT GUIDE – SERIES W120 W120182 8 8” 2-1/2” 17” 4” 17-3/4” 11” 9” 6” 450
PIPE ALIGNMENT GUIDE – SERIES W120 W120183 8 8” 3” 17” 4” 17-3/4” 11” 9” 6” 450
PIPE ALIGNMENT GUIDE – SERIES W120 W120184 8 5” to 6” 4” 17” 4” 17-3/4” 11” 9” 6” 450
PIPE ALIGNMENT GUIDE – SERIES W120 W120190 9 12” 1-1/2” 18-3/4” 4” 20-1/8” 12” 9-3/4” 6” 550
PIPE ALIGNMENT GUIDE – SERIES W120 W120191 9 12” 2” 18-3/4” 4” 20-1/8” 12” 9-3/4” 6” 550
PIPE ALIGNMENT GUIDE – SERIES W120 W120192 9 10” 2-1/2” 18-3/4” 4” 20-1/8” 12” 9-3/4” 6” 550
PIPE ALIGNMENT GUIDE – SERIES W120 W120193 9 10” 3” 18-3/4” 4” 20-1/8” 12” 9-3/4” 6” 550
PIPE ALIGNMENT GUIDE – SERIES W120 W120194 9 8” 4” 18-3/4” 4” 20-1/8” 12” 9-3/4” 6” 550
PIPE ALIGNMENT GUIDE – SERIES W120 W1201100 10 14” 2” 21-1/8” 4” 22-1/8” 11-1/2” 10-7/8” 6” 650
PIPE ALIGNMENT GUIDE – SERIES W120 W1201101 10 12” to 14” 2-1/2” 21-1/8” 4” 22-1/8” 11-1/2” 10-7/8” 6” 650
PIPE ALIGNMENT GUIDE – SERIES W120 W1201102 10 12” 3” 21-1/8” 4” 22-1/8” 11-1/2” 10-7/8” 6” 650
PIPE ALIGNMENT GUIDE – SERIES W120 W1201103 10 10” 4” 21-1/8” 4” 22-1/8” 11-1/2” 10-7/8” 6” 650
PIPE ALIGNMENT GUIDE – SERIES W120 W1201110 11 16” 2” 23-1/8” 6” 24-1/8” 14-1/2” 12-1/8” 8” 950
PIPE ALIGNMENT GUIDE – SERIES W120 W1201111 11 16” 2-1/2” 23-1/8” 6” 24-1/8” 14-1/2” 12-1/8” 8” 950
PIPE ALIGNMENT GUIDE – SERIES W120 W1201112 11 14” 3” 23-1/8” 6” 24-1/8” 14-1/2” 12-1/8” 8” 950
PIPE ALIGNMENT GUIDE – SERIES W120 W1201113 11 12” 4” 23-1/8” 6” 24-1/8” 14-1/2” 12-1/8” 8” 950
PIPE ALIGNMENT GUIDE SER W120 W1201120 12 16” 3” 25” 6” 26-5/8” 15-1/2” 13” 8” 1115
PIPE ALIGNMENT GUIDE SER W120 W1201121 12 14” to 16” 4” 25” 6” 26-5/8” 15-1/2” 13” 8” 1115

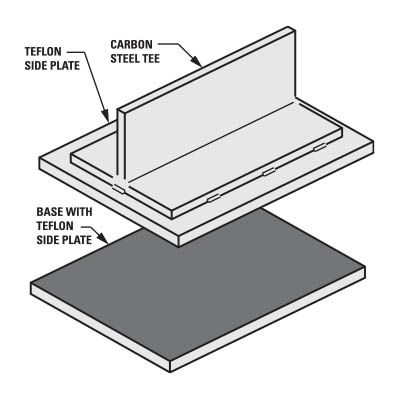

PIPE SLIDE ASSEMBLY – SERIES W121 to W127

CATEGORY TRAVEL PIPE SIZE MAX REC LOAD LBS SIZE A SIZE B SER W121 & W124 SIZE B SER W122 & W123 SIZE B SER W125 & W126 SIZE B SER W127 SIZE C SER W121 & W124 SIZE C SER W122, W123, W125 & W126 SIZE C SER W127
PIPE SLIDE ASSEMBLY SER W121 to W127 5 Up to 8 7000 3-15/16” 3-1/2” 6” 9-3/4” 5” 3-3/4” 4-1/4” 4-3/4”
PIPE SLIDE ASSEMBLY SER W121 to W127 10 Up to 8 7000 3-15/16” 3-1/2” 6” 9-3/4” 5” 3-3/4” 4-1/4” 4-3/4”
PIPE SLIDE ASSEMBLY SER W121 to W127 15 Up to 8 7000 3-15/16” 3-1/2” 6” 9-3/4” 5” 3-3/4” 4-1/4” 4-3/4”
PIPE SLIDE ASSEMBLY SER W121 to W127 20 Up to 8 7000 3-15/16” 3-1/2” 6” 9-3/4” 5” 3-3/4” 4-1/4” 4-3/4”
PIPE SLIDE ASSEMBLY SER W121 to W127 5 10 to 24 13500 5-7/16” 4-1/2” 7” 10-3/4” 6-1/2” 3-3/4” 4-1/4” 5-3/4”
PIPE SLIDE ASSEMBLY SER W121 to W127 10 10 to 24 13500 5-7/16” 4-1/2” 7” 10-3/4” 6-1/2” 3-3/4” 4-1/4” 5-3/4”
PIPE SLIDE ASSEMBLY SER W121 to W127 15 10 to 24 13500 5-7/16” 4-1/2” 7” 10-3/4” 6-1/2” 3-3/4” 4-1/4” 5-3/4”
PIPE SLIDE ASSEMBLY SER W121 to W127 20 10 to 24 13500 5-7/16” 4-1/2” 7” 10-3/4” 6-1/2” 3-3/4” 4-1/4” 5-3/4”



CATEGORY TRAVEL PIPE SIZE MAX REC LOAD LBS SIZE D SER W121 & W126 SIZE D SER W127 SIZE E SIZE F SER W121 & W123 SIZE F SER W124 & W126 WT EA IN LBS SER W121 WT EA IN LBS SER W122 WT EA IN LBS SER W123  WT EA IN LBS SER W124 WT EA IN LBS SER W125 WT EA IN LBS SER W126 WT EA IN LBS SER W127
PIPE SLIDE ASSEMBLY SER W121 to W127 5 Up to 8 7000 9 10 4” 3-1/2 5-1/2 9.5 14.5 15.5 11 18 19.6 27
PIPE SLIDE ASSEMBLY SER W121 to W127 10 Up to 8 7000 13-1/2 10 4” 3-1/2 5-1/2 13.5 18.5 19.5 15.7 22.6 24.3 27
PIPE SLIDE ASSEMBLY SER W121 to W127 15 Up to 8 7000 18” 10 4” 3-1/2 5-1/2 17.6 22.6 23.6 20.5 27.4 29.1 27
PIPE SLIDE ASSEMBLY SER W121 to W127 20 Up to 8 7000 27 10 4” 3-1/2 5-1/2 21.6 26.6 27.6 25.5 32.1 33.8 27
PIPE SLIDE ASSEMBLY SER W121 to W127 5 10 to 24 13500 11 11-1/2 6” 4-1/2 6-1/2 16 23.5 24.3 17.5 28.4 30 38
PIPE SLIDE ASSEMBLY SER W121 to W127 10 10 to 24 13500 16-1/2” 11-1/2 6” 4-1/2 6-1/2 21.4 38.9 29.7 23.6 34.5 36 38
PIPE SLIDE ASSEMBLY SER W121 to W127 15 10 to 24 13500 22 11-1/2 6” 4-1/2 6-1/2 26.9 34.4 35.1 29.8 40.7 42.2 38
PIPE SLIDE ASSEMBLY SER W121 to W127 20 10 to 24 13500 33” 11-1/2 6” 4-1/2 6-1/2 32.2 39.8 40.5 35.9 46.8 48.3 38

Retaining Straps

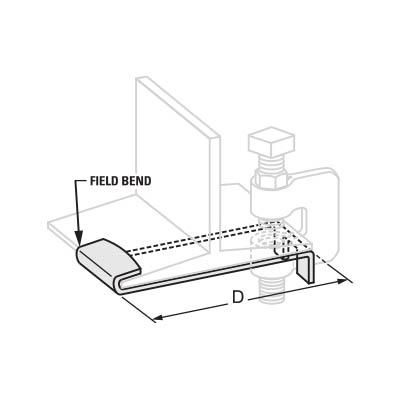

RETAINING STRAP – SERIES W115

CATEGORY SIZE PART # PRE-BENT STRAP LEN D MATERIAL SIZE LBS PER 100PCS
RETAINING STRAP SER W115 4-1/2” x 1" (pre-bent strap length) W115144 4-1/2” 11ga. x 1” 15
RETAINING STRAP SER W115 6” x 1" (pre-bent strap length) W115160 6” 11ga. x 1” 22
RETAINING STRAP SER W115 8” x 1" (pre-bent strap length) W115180 8” 11ga. x 1” 33
RETAINING STRAP SER W115 10” x 1" (pre-bent strap length) W1151100 10” 11ga. x 1” 36
RETAINING STRAP SER W115 14” x 1" (pre-bent strap length) W1151140 14” 11ga. x 1” 50

RETAINING STRAP – SERIES W116

CATEGORY SIZE PART # PRE-BENT STRAP LEN D MATERIAL SIZE LBS PER 100PCS
RETAINING STRAP SER W116 4-1/2” x 1-1/4" (pre-bent strap length) W116144 4-1/2” 11ga. x 1-1/4” 21
RETAINING STRAP SER W116 6” x 1-1/4" (pre-bent strap length) W116160 6” 11ga. x 1-1/4” 28
RETAINING STRAP SER W116 8” x 1-1/4" (pre-bent strap length) W116180 8” 11ga. x 1-1/4” 36
RETAINING STRAP SER W116 10” x 1-1/4" (pre-bent strap length) W1161100 10” 11ga. x 1-1/4” 45
RETAINING STRAP SER W116 14” x 1-1/4" (pre-bent strap length) W1161140 14” 11ga. x 1-1/4” 59

RETAINING STRAP – SERIES W117

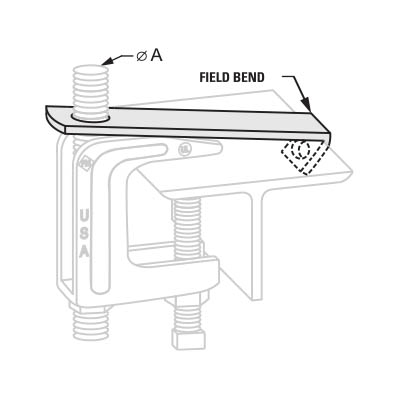

CATEGORY SIZE PART # ROD SIZE A MATERIAL SIZE TOTAL PRE-BENT LEN OF STRAP IN 4-1/2" WT EA IN LBS TOTAL PRE-BENT LEN OF STRAP IN 6" WT EA IN LBS TOTAL PRE-BENT LEN OF STRAP IN 8" WT EA IN LBS TOTAL PRE-BENT LEN OF STRAP IN 10" WT EA IN LBS TOTAL PRE-BENT LEN OF STRAP IN 14" WT EA IN LBS
RETAINING STRAP SER W117 3/8” rod size  W117203 3/8” 14ga. x 1” 0.15 0.21 0.28 0.35 0.49
RETAINING STRAP SER W117 1/2” rod size W117204 1/2” 14ga. x 1” 0.15 0.21 0.28 0.35 0.49
RETAINING STRAP SER W117 5/8” rod size W117205 5/8” 14ga. x 1” 0.2 0.26 0.35 0.44 0.62
RETAINING STRAP SER W117 3/4” rod size W117206 3/4” 14ga. x 1” 0.2 0.26 0.35 0.44 0.62
RETAINING STRAP SER W117 7/8” rod size W117207 7/8” 14ga. x 1” 0.31 0.42 0.56 0.7 0.98

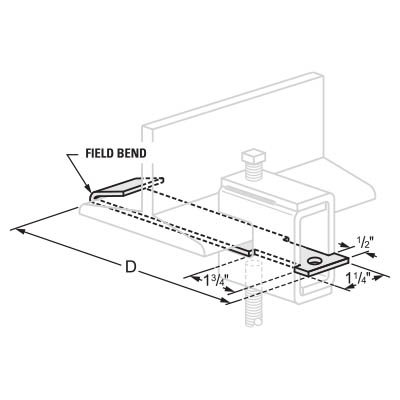

RETAINING STRAP – SERIES W118

CATEGORY SIZE PART # PRE-BENT STRAP LEN D FLANGE WIDTH LBS PER 100PCS
RETAINING STRAP SER W118 6” pre-bent strap length; 6" flange W118260 6” 6” 22
RETAINING STRAP SER W118 9” pre-bent strap length; 9" flange W118290 9” 9” 30
RETAINING STRAP SER W118 12” pre-bent strap length; 12" flange W1182120 12” 12” 40
RETAINING STRAP SER W118 18” pre-bent strap length; 18" flange W1182180 18” 15” 49

C-Clamps

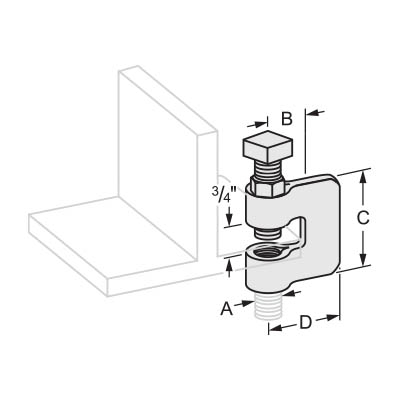

STEEL C-CLAMP – SERIES W200 & W201

CATEGORY  SIZE PART # LOCKNUT INCLUDED SIZE B HIGH C SIZE D MAX REC LOAD LBS CARTON QTY LBS PER 100PCS
STEEL C-CLAMP – SERIES W200 & W201 3/8 x 1, no locknut W200103 NO 1” 2-3/8” 2-5/16” 400 100 41
STEEL C-CLAMP – SERIES W200 & W201 3/8 x 1, with locknut W201103 YES 1” 2-3/8” 2-5/16” 400 100 45
STEEL C-CLAMP – SERIES W200 & W201 1/2 x 1-1/16, no locknut W200104 NO 1-1/16” 2-3/8” 2-5/16” 500 100 43
STEEL C-CLAMP – SERIES W200 & W201 1/2 x 1-1/16, with locknut W201104 YES 1-1/16” 2-3/8” 2-5/16” 500 100 46
STEEL C-CLAMP – SERIES W200 & W201 5/8 x 7/8, no locknut W200105 NO 7/8” 2-3/8” 2-1/4” 550 50 58
STEEL C-CLAMP – SERIES W200 & W201 5/8 x 7/8, with locknut W201105 YES 7/8” 2-3/8” 2-1/4” 550 50 66
STEEL C-CLAMP – SERIES W200 & W201 3/4 x 3/4, no locknut W200106 NO 3/4” 2-3/8” 2-1/4” 600 50 66
STEEL C-CLAMP – SERIES W200 & W201 3/4 x 3/4, with locknut W201106 YES 3/4” 2-3/8” 2-1/4” 600 50 80
STEEL C-CLAMP – SERIES W200 & W201 7/8 x 1-1/4, no locknut W200107 NO 1-1/4” 3” 3-1/4” 900 25 168
STEEL C-CLAMP – SERIES W200 & W201 7/8 x 1-1/4, with locknut W201107 YES 1-1/4” 3” 3-1/4” 900 25 176

MALLEABLE C-CLAMP – SERIES W210 & W211

CATEGORY  SIZE PART # LOCKNUT INCLUDED SIZE B HIGH C MAX REC LOAD LBS CARTON QTY LBS PER 100PCS
MALLEABLE C-CLAMP SER W210 & W211 3/8 x 3/4, no locknut W210103 NO 3/4” 1-3/4” 400 100 26
MALLEABLE C-CLAMP SER W210 & W211 3/8 x 3/4, with locknut W211103 YES 3/4” 1-3/4” 400 100 26
MALLEABLE C-CLAMP SER W210 & W211 1/2 x 3/4, no locknut W210104 NO 3/4” 1-3/4” 500 100 29
MALLEABLE C-CLAMP SER W210 & W211 1/2 x 3/4, with locknut W211104 YES 3/4” 1-3/4” 500 100 29



CATEGORY  SIZE PART # LOCKNUT INCLUDED ROD SIZE A SIZE B HIGH C MAX REC LOAD LBS CARTON QTY LBS PER 100PCS
MALLEABLE C-CLAMP SER W210 & W211 5/8 x 5/8, no locknut W210105 NO 5/8 5/8” 2” 550 BULK 72
MALLEABLE C-CLAMP SER W210 & W211 5/8 x 5/8, with locknut W211105 YES 5/8 5/8” 2” 550 BULK 72
MALLEABLE C-CLAMP SER W210 & W211 3/4 x 9/16, no locknut W210106 NO 3/4 9/16” 2” 600 BULK 98
MALLEABLE C-CLAMP SER W210 & W211 3/4 x 9/16, with locknut W211106 YES 3/4 9/16” 2” 600 BULK 98

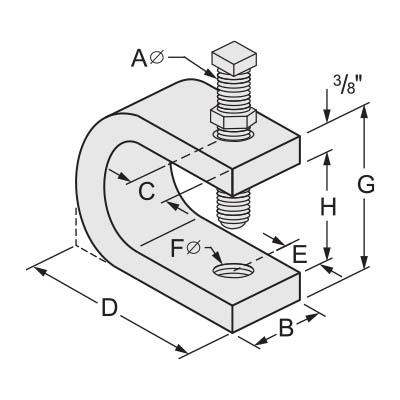

STEEL C-TYPE CLAMP – SERIES W215 - W217

CATEGORY  SIZE PART # ROD SIZE A MAX PIPE SIZE SIZE B SIZE C SIZE D SIZE E SIZE F SIZE G SIZE H MAX REC LOAD LBS
STEEL C-TYPE CLAMP SER W215 - W217 3/8 rod, 4" max pipe, 5/8 opening W215203 3/8” 4” 3/4” 5/16” 1-9/16” 5/16” 3/8” 1-3/8” 5/8” 1500
STEEL C-TYPE CLAMP SER W215 - W217 3/8 rod, 8" max pipe, 5/8 opening W216203 3/8” 8” 1-1/4” 5/16” 1-5/8” 3/8” 1/2” 1-3/8” 5/8” 4050
STEEL C-TYPE CLAMP SER W215 - W217 3/8 rod, 4" max pipe, 7/8 opening W217203 3/8” 4” 3/4” 5/16” 1-1/2” 5/16” 3/8” 1-5/8” 7/8” 1500
STEEL C-TYPE CLAMP SER W215 - W217 3/8 rod, 8" max pipe, 7/8 opening W215204 1/2” 8” 1-1/2” 7/16” 1-9/16” 7/16” 1/2” 1-5/8” 7/8” 4050

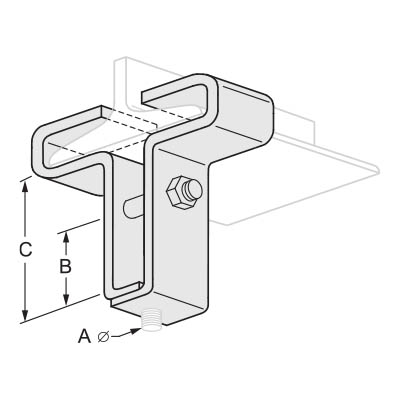

STEEL C-TYPE CLAMP – SERIES W227

CATEGORY  SIZE PART # SIZE A SIZE B SIZE C MATERIAL SIZE MAX REC LOAD LBS WT EA IN LBS FLANGE WIDTH IN 4" WT EA IN LBS FLANGE WIDTH IN 5" WT EA IN LBS FLANGE WIDTH IN 6" WT EA IN LBS FLANGE WIDTH IN 7" WT EA IN LBS FLANGE WIDTH IN 8"
STEEL C-TYPE CLAMP SER W227 3/8" rod x 3 x 4 W227103 3/8” 3” 4” 3ga. x 1-1/4” 550 1.68 1.81 1.93 2.05 2.14
STEEL C-TYPE CLAMP SER W227 1/2" rod x 3 x 4 W227104 1/2” 3” 4” 3ga. x 1-1/2” 850 2.01 2.17 2.31 2.46 2.56
STEEL C-TYPE CLAMP SER W227 5/8" rod x 3-1/4 x 4-1/2 W227105 5/8” 3-1/4” 4-1/2” 3/8” x 1-1/2” 1100 3.28 3.52 3.73 3.95 4.11
STEEL C-TYPE CLAMP SER W227 3/4" rod x 3-1/4 x 4-1/2 W227106 3/4” 3-1/4” 4-1/2” 3/8” x 2” 1500 4.34 4.66 4.95 5.25 5.46
STEEL C-TYPE CLAMP SER W227 7/8" rod x 3-1/2 x 5 W227107 7/8” 3-1/2” 5” 1/2” x 2” 2600 6.57 6.67 7.05 7.44 7.73
STEEL C-TYPE CLAMP SER W227 1" rod x 3-1/2 x 5 W227110 1” 3-1/2” 5” 1/2” x 2-1/2” 4300 7.97 8.24 8.77 9.26 9.62
STEEL C-TYPE CLAMP SER W227 1-1/8" rod x 3-1/2 x 5-1/2 W227111 1-1/8” 3-1/2” 5-1/2” 5/8” x 3” 6100 14.46 13.69 13.74 15.07 15.6
STEEL C-TYPE CLAMP SER W227 1-1/4" rod x 3-1/2 x 5-1/2 W227112 1-1/4” 3-1/2” 5-1/2” 5/8” x 4” 8000 18.76 18.17 18.45 19.82 20.36

Malleable Beam Clamps

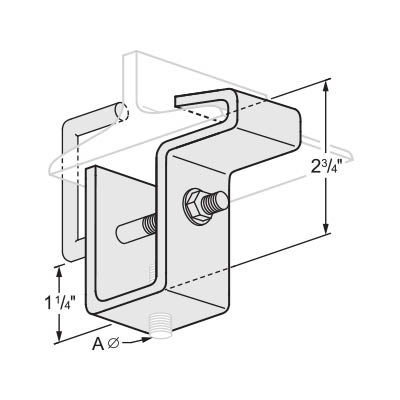

ADJUSTABLE STEEL BEAM CLAMP – SERIES W226

CATEGORY SIZE PART # ROD SIZE A FLANGE WIDTH IN MIN FLANGE WIDTH IN MAX MATERIAL SIZE MAX REC LOAD LBS LBS PER 100PCS
ADJUSTABLE STEEL BEAM CLAMP SER W226 3/8" rod, 3-1/2" - 8" min/max flange W226103 3/8" 3-1/2" 8" 3 ga. x 1-1/4” 300 118
ADJUSTABLE STEEL BEAM CLAMP SER W226 1/2" rod, 3-1/2" - 8" min/max flange W226104 1/2" 3-1/2" 8" 3 ga. x 1-1/4” 700 162
ADJUSTABLE STEEL BEAM CLAMP SER W226 5/8" rod, 3-1/2" - 8" min/max flange W226105 5/8" 3-1/2" 8" 3 ga. x 1-1/4” 1000 218

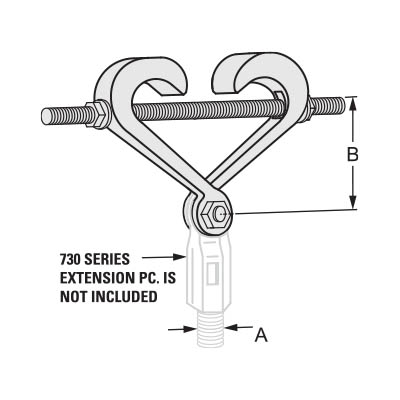

MALLEABLE BEAM CLAMP – SERIES W230

CATEGORY MAX ROD SIZE A ROD TAKE-OUT B FOR WIDTH OF BEAM FLANGE 2-3/8" ROD TAKE-OUT B FOR WIDTH OF BEAM FLANGE 3" ROD TAKE-OUT B FOR WIDTH OF BEAM FLANGE 4" ROD TAKE-OUT B FOR WIDTH OF BEAM FLANGE 5" ROD TAKE-OUT B FOR WIDTH OF BEAM FLANGE 6" ROD TAKE-OUT B FOR WIDTH OF BEAM FLANGE 7" BOLT DIAMETER MAX REC LOAD LBS LBS PER 100PCS
MALLEABLE BEAM CLAMP SER W230 7/8 3-1/2" 3-7/16" 3-5/16" 2-5/16" 2-9/16" 1-7/8" 7/16" 1365 249

Center Load Beam Clamps

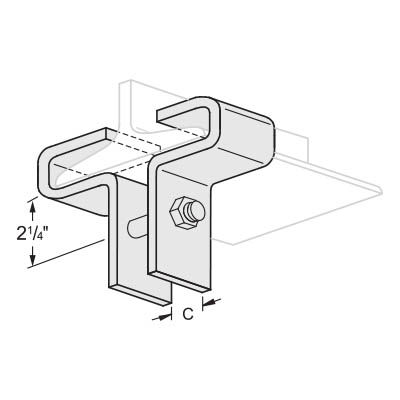

CENTER LOAD BEAM CLAMP – SERIES W220

CATEGORY  SIZE PART # TYPE NUMBER FLANGE WIDTH BOLT SIZE SIZE C MATERIAL SIZE MAX FLANGE THICKNESS MAX REC LOAD LBS CARTON QTY LBS PER 100PCS
CENTER LOAD BEAM CLAMP SER W220 2 x 3/8 x 1/2, type 1 W220112 1 2 3/8 1/2” 3ga. x 1-1/4” 7/16” 1000 BULK 63
CENTER LOAD BEAM CLAMP SER W220 2 x 1/2 x 1/2, type 2 W220122 2 2 1/2 1/2” 3ga. x 1-1/4” 7/16” 1250 BULK 84
CENTER LOAD BEAM CLAMP SER W220 2 x 1/2 x 5/8, type 3 W220132 3 2 1/2 5/8” 3/8” x 1-1/2” 7/16” 1500 BULK 128
CENTER LOAD BEAM CLAMP SER W220 3 x 3/8 x 1/2, type 1  W220113 1 3 3/8 1/2” 3ga. x 1-1/4” 7/16” 1000 BULK 85
CENTER LOAD BEAM CLAMP SER W220 3 x 1/2 x 1/2, type 2 W220123 2 3 1/2 1/2” 3ga. x 1-1/4” 7/16” 1250 BULK 93
CENTER LOAD BEAM CLAMP SER W220 3 x 1/2 x 5/8, type 3 W220133 3 3 1/2 5/8” 3/8” x 1-1/2” 7/16” 1500 BULK 142
CENTER LOAD BEAM CLAMP SER W220 4 x 3/8 x 1/2, type 1  W220114 1 4 3/8 1/2” 3ga. x 1-1/4” 1/2” 1000 BULK 88
CENTER LOAD BEAM CLAMP SER W220 4 x 1/2 x 1/2, type 2 W220124 2 4 1/2 1/2” 3ga. x 1-1/4” 1/2” 1250 BULK 110
CENTER LOAD BEAM CLAMP SER W220 4 x 1/2 x 5/8, type 3 W220134 3 4 1/2 5/8” 3/8” x 1-1/2” 1/2” 1500 BULK 163
CENTER LOAD BEAM CLAMP SER W220 5 x 3/8 x 1/2, type 1 W220115 1 5 3/8 1/2” 3ga. x 1-1/4” 5/8” 1000 BULK 110
CENTER LOAD BEAM CLAMP SER W220 5 x 1/2 x 1/2, type 2 W220125 2 5 1/2 1/2” 3ga. x 1-1/4” 5/8” 1250 BULK 128
CENTER LOAD BEAM CLAMP SER W220 5 x 1/2 x 5/8, type 3 W220135 3 5 1/2 5/8” 3/8” x 1-1/2” 5/8” 1500 BULK 206
CENTER LOAD BEAM CLAMP SER W220 6 x 3/8 x 1/2, type 1 W220116 1 6 3/8 1/2” 3ga. x 1-1/4” 3/4” 1000 BULK 113
CENTER LOAD BEAM CLAMP SER W220 6 x 1/2 x 1/2, type 2 W220126 2 6 1/2 1/2” 3ga. x 1-1/4” 3/4” 1250 BULK 144
CENTER LOAD BEAM CLAMP SER W220 6 x 1/2 x 5/8, type 3 W220136 3 6 1/2 5/8” 3/8” x 1-1/2” 3/4” 1500 BULK 221
CENTER LOAD BEAM CLAMP SER W220 7 x 3/8 x 1/2, type 1 W220117 1 7 3/8 1/2” 3ga. x 1-1/4” 7/8” 1000 BULK 123
CENTER LOAD BEAM CLAMP SER W220 7 x 1/2 x 1/2, type 2 W220127 2 7 1/2 1/2” 3ga. x 1-1/4” 7/8” 1250 BULK 157
CENTER LOAD BEAM CLAMP SER W220 7 x 1/2 x 5/8, type 3 W220137 3 7 1/2 5/8” 3/8” x 1-1/2” 7/8” 1500 BULK 247
CENTER LOAD BEAM CLAMP SER W220 8 x 3/8 x 1/2, type 1 W220118 1 8 3/8 1/2” 3ga. x 1-1/4” 7/8” 1000 BULK 125
CENTER LOAD BEAM CLAMP SER W220 8 x 1/2 x 1/2, type 2 W220128 2 8 1/2 1/2” 3ga. x 1-1/4” 7/8” 1250 BULK 166
CENTER LOAD BEAM CLAMP SER W220 8 x 1/2 x 5/8, type 3 W220138 3 8 1/2 5/8” 3/8” x 1-1/2” 7/8” 1500 BULK 253
CENTER LOAD BEAM CLAMP SER W220 9 x 3/8 x 1/2, type 1 W220119 1 9 3/8 1/2” 3ga. x 1-1/4” 1” 1000 BULK 143
CENTER LOAD BEAM CLAMP SER W220 9 x 1/2 x 1/2, type 2 W220129 2 9 1/2 1/2” 3ga. x 1-1/4” 1” 1250 BULK 177
CENTER LOAD BEAM CLAMP SER W220 9 x 1/2 x 5/8, type 3 W220139 3 9 1/2 5/8” 3/8” x 1-1/2” 1” 1500 BULK 269
CENTER LOAD BEAM CLAMP SER W220 10 x 3/8 x 1/2, type 1 W2201110 1 10 3/8 1/2” 3ga. x 1-1/4” 1” 1000 BULK 152
CENTER LOAD BEAM CLAMP SER W220 10 x 1/2 x 1/2, type 2 W2201210 2 10 1/2 1/2” 3ga. x 1-1/4” 1” 1250 BULK 186
CENTER LOAD BEAM CLAMP SER W220 10 x 1/2 x 5/8, type 3 W2201310 3 10 1/2 5/8” 3/8” x 1-1/2” 1” 1500 BULK 281
CENTER LOAD BEAM CLAMP SER W220 11 x 3/8 x 1/2, type 1 W2201111 1 11 3/8 1/2” 3ga. x 1-1/4” 1” 1000 BULK 136
CENTER LOAD BEAM CLAMP SER W220 11 x 1/2 x 1/2, type 2 W2201211 2 11 1/2 1/2” 3ga. x 1-1/4” 1” 1250 BULK 198
CENTER LOAD BEAM CLAMP SER W220 11 x 1/2 x 5/8, type 3 W2201311 3 11 1/2 5/8” 3/8” x 1-1/2” 1” 1500 BULK 306
CENTER LOAD BEAM CLAMP SER W220 12 x 3/8 x 1/2, type 1 W2201112 1 12 3/8 1/2” 3ga. x 1-1/4” 1” 1000 BULK 171
CENTER LOAD BEAM CLAMP SER W220 12 x 1/2 x 1/2, type 2 W2201212 2 12 1/2 1/2” 3ga. x 1-1/4” 1” 1250 BULK 210
CENTER LOAD BEAM CLAMP SER W220 12 x 1/2 x 5/8, type 3 W2201312 3 12 1/2 5/8” 3/8” x 1-1/2” 1” 1500 BULK 318

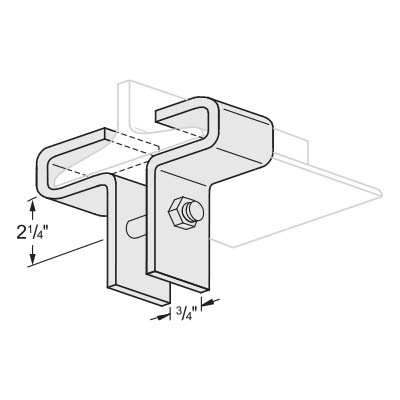

CENTER LOAD BEAM CLAMP – SERIES W225

CATEGORY  SIZE PART # TYPE NUMBER FLANGE WIDTH BOLT SIZE MATERIAL SIZE MAX FLANGE THICKNESS MAX REC LOAD LBS CARTON QTY LBS PER 100PCS
CENTER LOAD BEAM CLAMP SER W225 3 x 5/8, type 4 W225143 4 3 5/8 1/2” x 2” 1/2” 3000 BULK 348
CENTER LOAD BEAM CLAMP SER W225 3 x 5/8, type 5 W225153 5 3 5/8 1/2” x 2-1/2” 1/2” 3250 BULK 426
CENTER LOAD BEAM CLAMP SER W225 3 x 3/4, type 6 W225163 6 3 3/4 5/8” x 2-1/2” 1/2” 3500 BULK -
CENTER LOAD BEAM CLAMP SER W225 4 x 5/8, type 4 W225144 4 4 5/8 1/2” x 2” 1/2” 3000 BULK 392
CENTER LOAD BEAM CLAMP SERW225 4 x 5/8, type 5 W225154 5 4 5/8 1/2” x 2-1/2” 1/2” 3250 BULK 482
CENTER LOAD BEAM CLAMP SER W225 4 x 3/4, type 6 W225164 6 4 3/4 5/8” x 2-1/2” 1/2” 3000 BULK 629
CENTER LOAD BEAM CLAMP SER W225 5 x 5/8, type 4 W225145 4 5 5/8 1/2” x 2” 5/8” 3000 BULK 428
CENTER LOAD BEAM CLAMP SER W225 5 x 5/8, type 5 W225155 5 5 5/8 1/2” x 2-1/2” 5/8” 3250 BULK 523
CENTER LOAD BEAM CLAMP SER W225 5 x 3/4, type 6 W225165 6 5 3/4 5/8” x 2-1/2” 5/8” 3000 BULK 661
CENTER LOAD BEAM CLAMP SER W225 6 x 5/8, type 4 W225146 4 6 5/8 1/2” x 2” 3/4” 3000 BULK 445
CENTER LOAD BEAM CLAMP SER W225 6 x 5/8, type 5 W225156 5 6 5/8 1/2” x 2-1/2” 3/4” 3250 BULK 552
CENTER LOAD BEAM CLAMP SER W225 6 x 3/4, type 6 W225166 6 6 3/4 5/8” x 2-1/2” 3/4” 3000 BULK 727
CENTER LOAD BEAM CLAMP SER W225 7 x 5/8, type 4 W225147 4 7 5/8 1/2” x 2” 7/8” 3000 BULK 476
CENTER LOAD BEAM CLAMP SER W225 7 x 5/8, type 5 W225157 5 7 5/8 1/2” x 2-1/2” 7/8” 3250 BULK 591
CENTER LOAD BEAM CLAMP SER W225 7 x 3/4, type 6 W225167 6 7 3/4 5/8” x 2-1/2” 7/8” 3000 BULK 763
CENTER LOAD BEAM CLAMP SER W225 8 x 5/8, type 4 W225148 4 8 5/8 1/2” x 2” 7/8” 3000 BULK 525
CENTER LOAD BEAM CLAMP SER W225 8 x 5/8, type 5 W225158 5 8 5/8 1/2” x 2-1/2” 7/8” 3250 BULK 612
CENTER LOAD BEAM CLAMP SER W225 8 x 3/4, type 6 W225168 6 8 3/4 5/8” x 2-1/2” 7/8” 3000 BULK 857
CENTER LOAD BEAM CLAMP SER W225 9 x 5/8, type 4 W225149 4 9 5/8 1/2” x 2” 1” 3000 BULK 573
CENTER LOAD BEAM CLAMP SER W225 9 x 5/8, type 5 W225159 5 9 5/8 1/2” x 2-1/2” 1” 3250 BULK 657
CENTER LOAD BEAM CLAMP SER W225 9 x 3/4, type 6 W225169 6 9 3/4 5/8” x 2-1/2” 1” 3000 BULK 921
CENTER LOAD BEAM CLAMP SER W225 10 x 5/8, type 4 W2251410 4 10 5/8 1/2” x 2” 1” 3000 BULK 594
CENTER LOAD BEAM CLAMP SER W225 10 x 5/8, type 5 W2251510 5 10 5/8 1/2” x 2-1/2” 1” 3250 BULK 698
CENTER LOAD BEAM CLAMP SER W225 10 x 3/4, type 6 W2251610 6 10 3/4 5/8” x 2-1/2” 1” 3000 BULK 981
CENTER LOAD BEAM CLAMP SER W225 11 x 5/8, type 4 W2251411 4 11 5/8 1/2” x 2” 1” 3000 BULK 653
CENTER LOAD BEAM CLAMP SER W225 11 x 5/8, type 5 W2251511 5 11 5/8 1/2” x 2-1/2” 1” 3250 BULK 795
CENTER LOAD BEAM CLAMP SER W225 11 x 3/4, type 6 W2251611 6 11 3/4 5/8” x 2-1/2” 1” 3000 BULK 1052
CENTER LOAD BEAM CLAMP SER W225 12 x 5/8, type 4 W2251412 4 12 5/8 1/2” x 2” 1” 3000 BULK 697
CENTER LOAD BEAM CLAMP SER W225 12 x 5/8, type 5 W2251512 5 12 5/8 1/2” x 2-1/2” 1” 3250 BULK 850
CENTER LOAD BEAM CLAMP SER W225 12 x 3/4, type 6 W2251612 6 12 3/4 5/8” x 2-1/2” 1” 3000 BULK 1113
