Standard Clevis Hanger Series W400

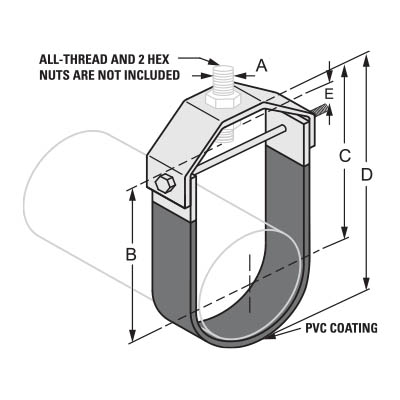

STANDARD CLEVIS HANGER – SERIES W400

CATEGORY COATED PART # PIPE SIZE SIZE A SIZE B SIZE C SIZE D SIZE E MAX REC LOAD LBS CARTON QTY LBS PER 100PCS
STANDARD CLEVIS HANGER SER W400 PVC W400504 1/2” 3/8” 1/2” 2-1/4” 3-1/8” 1-1/8” 400 100 37
STANDARD CLEVIS HANGER SER W400 PVC W400506 3/4” 3/8” 5/8” 2-1/4” 3-1/8” 1-1/8” 400 100 38
STANDARD CLEVIS HANGER SER W400 PVC W400510 1” 3/8” 3/4” 2-1/4” 3-1/8” 1-1/8” 400 100 39
STANDARD CLEVIS HANGER SER W400 PVC W400512 1-1/4” 3/8” 2” 2-5/8” 3-1/2” 1-1/8” 400 100 40
STANDARD CLEVIS HANGER SER W400 PVC W400514 1-1/2” 3/8” 2-1/16” 3” 3-3/4” 1-1/8” 400 100 44
STANDARD CLEVIS HANGER SER W400 PVC W400520 2” 3/8” 2-5/16” 3-1/8” 4-1/4” 15/16” 400 100 52
STANDARD CLEVIS HANGER SER W400 PVC W400524 2-1/2” 1/2” 2-3/8” 3-1/8” 4-5/8” 3/4” 800 50 108
STANDARD CLEVIS HANGER SER W400 PVC W400530 3” 1/2” 2-7/8” 3-5/8” 5-1/2” 1” 800 50 120
STANDARD CLEVIS HANGER SER W400 PVC W400534 3-1/2” 1/2” 3-3/8” 4-1/8” 6-1/4” 1-1/8” 800 50 128
STANDARD CLEVIS HANGER SER W400 PVC W400540 4” 5/8” 3-5/8” 5-1/8” 7-3/8” 1-1/8” 800 25 184
STANDARD CLEVIS HANGER SER W400 PVC W400550 5” 5/8” 4-1/4” 5-3/4” 8-5/8” 1-1/4” 800 20 205
STANDARD CLEVIS HANGER SER W400 PVC W400560 6” 5/8” 5-1/4” 7-1/4” 10-1/2” 1-1/2” 1000 20 310
STANDARD CLEVIS HANGER SER W400 PVC W400580 8” 5/8” 6-5/8” 8” 12-3/8” 2” 1200 10 440
STANDARD CLEVIS HANGER SER W400 PVC W4005100 10” 5/8” 8-3/8” 9-7/8” 15-1/4” 2-1/4” 3600 BULK 860
STANDARD CLEVIS HANGER SER W400 PVC W4005120 12” 5/8” 9-3/4” 11-3/4” 17-1/2” 2-5/8” 3800 BULK 1040
STANDARD CLEVIS HANGER SER W400 PVC W4005140 14” 5/8” 10-9/16” 12-1/2” 19-1/2” 2-1/2” 4200 BULK 1480
STANDARD CLEVIS HANGER SER W400 PVC W4005160 16” 5/8” 11-15/16” 14” 22” 2-3/4” 4600 BULK 2100
STANDARD CLEVIS HANGER SER W400 PVC W4005180 18” 5/8” 13-7/8” 16” 25” 3-3/4” 4800 BULK 2440
STANDARD CLEVIS HANGER SER W400 PVC W4005200 20” 5/8” 15-1/8” 17-1/2” 27-1/2” 3-3/4” 4800 BULK 4260
STANDARD CLEVIS HANGER SER W400 PVC W4005240 24” 5/8” 17-3/8” 19-3/4” 31-3/4” 4” 4800 BULK 4840
STANDARD CLEVIS HANGER SER W400 PVC W4005360 36” 5/8” 21-1/2” 24-1/8” 39-1/8” 4-3/4” 6000 BULK 6950

Copper Clevis Hanger Series W405

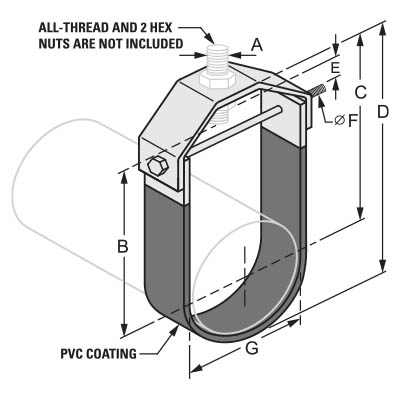

COPPER CLEVIS HANGER – SERIES W405

CATEGORY COATED PART # PIPE SIZE SIZE A SIZE B SIZE C SIZE D SIZE E SIZE F SIZE G MAX REC LOAD LBS CARTON QTY LBS PER 100PCS
COPPER CLEVIS HANGER SER W405 PVC W405504 1/2” 3/8” 1-1/2” 2-1/2” 2-7/8” 1-3/16” 1/4” 11/16” 150 100 22
COPPER CLEVIS HANGER SER W405 PVC W405506 3/4” 3/8” 1-5/8” 2-5/8” 3-1/8” 1-3/16” 1/4” 3/4” 150 100 20
COPPER CLEVIS HANGER SER W405 PVC W405510 1” 3/8” 1-3/4” 2-3/4” 3-1/8” 1-3/16” 1/4” 1-1/4” 250 100 20
COPPER CLEVIS HANGER SER W405 PVC W405512 1-1/4” 3/8” 1-7/8” 2-7/8” 3-1/2” 1-3/16” 1/4” 1-1/2” 250 100 22
COPPER CLEVIS HANGER SER W405 PVC W405514 1-1/2” 3/8” 2” 3” 3-3/4” 1-3/16” 1/4” 1-3/4” 250 100 18
COPPER CLEVIS HANGER SER W405 PVC W405520 2” 3/8” 1-3/8” 3-3/8” 4-1/4” 1-3/16” 1/4” 2-3/8” 250 100 24
COPPER CLEVIS HANGER SER W405 PVC W405524 2-1/2” 1/2” 3” 4” 4-5/8” 1-3/4” 1/4” 2-3/4” 350 50 28
COPPER CLEVIS HANGER SER W405 PVC W405530 3” 1/2” 3-5/8” 4-5/8” 5-1/2” 1-3/4” 3/8” 3-3/8” 350 BULK 70
COPPER CLEVIS HANGER SER W405 PVC W405534 3-1/2” 1/2” 4” 5” 6-1/4” 1-3/4” 3/8” 4” 350 BULK 84
COPPER CLEVIS HANGER SER W405 PVC W405540 4” 5/8” 4-1/4” 5-1/4” 7-3/8” 1-3/4” 3/8” 4-1/2” 400 BULK 90

Standard Duty Clevis Hanger Series W410

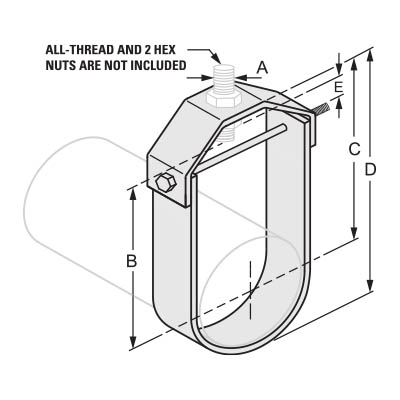

STANDARD DUTY CLEVIS HANGER – SERIES W410

CATEGORY PART # PIPE SIZE SIZE A SIZE B SIZE C SIZE D SIZE E MAX REC LOAD LBS CARTON QTY LBS PER 100PCS
STANDARD DUTY CLEVIS HANGER SER W410 W410112 1-1/4” 3/8” 2” 2-5/8” 3-1/2” 1-1/8” 600 100 40
STANDARD DUTY CLEVIS HANGER SER W410 W410114 1-1/2” 3/8” 2-1/16” 3” 3-3/4” 1-1/8” 600 100 44
STANDARD DUTY CLEVIS HANGER SER W410 W410120 2” 3/8” 2-5/16” 3-1/8” 4-1/4” 15/16” 600 100 52
STANDARD DUTY CLEVIS HANGER SER W410 W410124 2-1/2” 1/2” 2-3/8” 3-1/8” 4-5/8” 3/4” 1100 50 108
STANDARD DUTY CLEVIS HANGER SER W410 W410130 3” 1/2” 2-7/8” 3-5/8” 5-1/2” 1” 1100 50 120
STANDARD DUTY CLEVIS HANGER SER W410 W410134 3-1/2” 1/2” 3-3/8” 4-1/8” 6-1/4” 1-1/8” 1100 50 128
STANDARD DUTY CLEVIS HANGER SER W410 W410140 4” 5/8” 3-5/8” 5-1/8” 7-3/8” 1-1/8” 1400 25 184
STANDARD DUTY CLEVIS HANGER SER W410 W410150 5” 5/8” 4-1/4” 5-3/4” 8-5/8” 1-1/4” 1400 25 205
STANDARD DUTY CLEVIS HANGER SER W410 W410160 6” 5/8” 5-1/4” 7-1/4” 10-1/2” 1-1/2” 2000 25 310
STANDARD DUTY CLEVIS HANGER SER W410 W410180 8” 5/8” 6-5/8” 8” 12-3/8” 2” 2000 25 440
STANDARD DUTY CLEVIS HANGER SER W410 W4101100 10” 5/8” 8-3/8” 9-7/8” 15-1/4” 2-1/4” 3600 BULK 860
STANDARD DUTY CLEVIS HANGER SER W410 W4101120 12” 5/8” 9-3/4” 11-3/4” 17-1/2” 2-5/8” 3800 BULK 1040
STANDARD DUTY CLEVIS HANGER SER W410 W4101140 14” 5/8” 10-9/16” 12-1/2” 19-1/2” 2-1/2” 4200 BULK 1480
STANDARD DUTY CLEVIS HANGER SER W410 W4101160 16” 5/8” 11-15/16” 14” 22” 2-3/4” 4600 BULK 2100
STANDARD DUTY CLEVIS HANGER SER W410 W4101180 18” 5/8” 13-7/8” 16” 25” 3-3/4” 4800 BULK 2440
STANDARD DUTY CLEVIS HANGER SER W410 W4101200 20” 5/8” 15-1/8” 17-1/2” 27-1/2” 3-3/4” 4800 BULK 4260
STANDARD DUTY CLEVIS HANGER SER W410 W4101240 24” 5/8” 17-3/8” 19-3/4” 31-3/4” 4” 4800 BULK 4840
STANDARD DUTY CLEVIS HANGER SER W410 W4101360 36” 5/8” 21-1/2” 24-1/8” 39-1/8” 4-3/4” 6000 BULK 6950

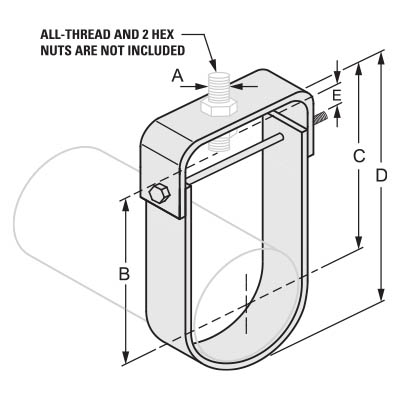

Standard Duty Clevis Hanger Series W411

STANDARD DUTY CLEVIS HANGER – SERIES W411

CATEGORY PART # PIPE SIZE SIZE B SIZE C SIZE D SIZE E MAX REC LOAD LBS CARTON QTY LBS PER 100PCS
STANDARD DUTY CLEVIS HANGER SER W411 W411104 1/2” 1/2” 2-1/4” 3-1/8” 1-1/8” 600 100 37
STANDARD DUTY CLEVIS HANGER SER W411 W411106 3/4” 5/8” 2-1/4” 3-1/8” 1-1/8” 600 100 38
STANDARD DUTY CLEVIS HANGER SER W411 W411110 1” 3/4” 2-1/4” 3-1/8” 1-1/8” 600 100 39

Clevis Hanger with Secured Insulation Shield

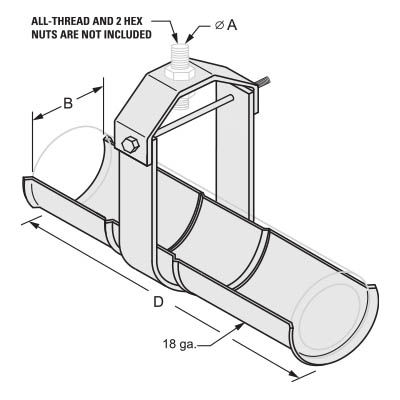

CLEVIS HANGER w/ SECURED INSULATION SHIELD – SERIES W412

CATEGORY PART # SHIELD B ROD SIZE A SHIELD LENGTH D HANGER SIZE LBS PER EACH
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W412123 2-3/8” 3/8” 8” 2” 0.59
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W412125 2-5/8” 1/2” 8” 2-1/2” 1.5
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W412127 2-7/8” 1/2” 8” 2-1/2” 1.54
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W412134 3-1/2” 1/2” 8” 3” 1.64
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W412140 4” 1/2” 8” 3-1/2” 1.95
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W412144 4-1/2” 5/8” 8” 4” 2.38
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W412150 5” 5/8” 8” 5” 2.98
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W412155 5-5/8” 5/8” 8” 5” 3.1
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W412160 6” 3/4” 8” 6” 3.77
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W412165 6-5/8” 3/4” 8” 6” 3.92
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W412175 7-5/8” 3/4” 12” 8” 6.33
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W412185 8-5/8” 3/4” 12” 8” 6.66
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W412195 9-5/8” 7/8” 12” 10” 10.84
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W4121106 10-3/4” 7/8” 12” 10” 11.17
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W4121116 11-3/4” 7/8” 12” 12” 13.39
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W4121126 12-3/4” 7/8” 12” 12” 13.65
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W4121140 14” 1” 12” 14” 16.93
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W4121150 15” 1” 12” 16” 25.08
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W4121160 16” 1” 12” 16” 25.2
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W4121170 17” 1-1/8” 12” 18” 29.55
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W4121180 18” 1-1/8” 12” 18” 29.83
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W4121190 19” 1-1/4” 12” 20” 47.81
CLEVIS HANGER w/ SECURED INSULATION SHIELD SER W412 W4121210 21” 1-1/4” 12” 24” 53.73

Plastic Pipe Clevis Hanger Series W413

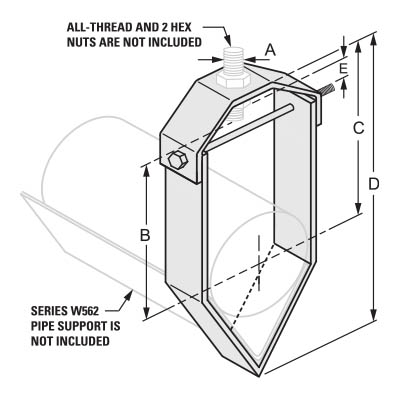

PLASTIC PIPE CLEVIS HANGER – SERIES W413

CATEGORY PART # PIPE SIZE ROD SIZE A SIZE B SIZE C SIZE D SIZE E CROSS BOLT MAX REC LOAD LBS LBS PER 100PCS
PLASTIC PIPE CLEVIS HANGER SER W413 W413104 1/2” 3/8” 4-5/16” 4-3/4” 5-1/2” 1-5/8” 3/8” 150 38
PLASTIC PIPE CLEVIS HANGER SER W413 W413106 3/4” 3/8” 4-1/8” 4-9/16” 5-1/2” 1-5/8” 3/8” 150 38
PLASTIC PIPE CLEVIS HANGER SER W413 W413110 1” 3/8” 3-15/16” 6-3/8” 5-1/2” 1-5/8” 3/8” 150 38
PLASTIC PIPE CLEVIS HANGER SER W413 W413112 1-1/4” 3/8” 3-11/16” 4-1/8” 5-1/2” 1-5/8” 3/8” 150 38
PLASTIC PIPE CLEVIS HANGER SER W413 W413114 1-1/2” 3/8” 3-9/16” 4” 5-1/2” 1-5/8” 3/8” 150 38
PLASTIC PIPE CLEVIS HANGER SER W413 W413120 2” 3/8” 3-1/4” 3-11/16” 5-1/2” 1-5/8” 3/8” 150 38
PLASTIC PIPE CLEVIS HANGER SER W413 W413124 2-1/2” 5/8” 5-13/16” 6-5/8” 8-3/4” 1-3/4” 5/8” 150 115
PLASTIC PIPE CLEVIS HANGER SER W413 W413130 3” 5/8” 5-3/8” 6-3/16” 8-3/4” 1-3/4” 5/8” 150 115
PLASTIC PIPE CLEVIS HANGER SER W413 W413134 3-1/2” 5/8” 5” 5-13/16” 8-3/4” 1-3/4” 5/8” 150 115
PLASTIC PIPE CLEVIS HANGER SER W413 W413140 4” 5/8” 4-5/8” 5-7/16” 8-3/4” 1-3/4” 5/8” 150 115

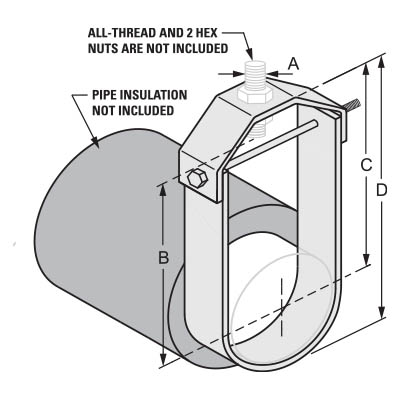

Standard Clevis Hanger Series W415

STANDARD CLEVIS HANGER – SERIES W415

CATEGORY  PIPE SIZE FOR 2” INSUL PART # PIPE SIZE SIZE A SIZE B SIZE C SIZE D MAX REC LOAD LBS CARTON QTY LBS PER 100PCS
STANDARD CLEVIS HANGER SER W415 3/4” - 1-1/2”  W415106 3/4” 3/8” 2-7/8” 3-5/8” 4-1/4” 610 50 50
STANDARD CLEVIS HANGER SER W415 3/4” - 1-1/2”  W415110 1” 3/8” 3-1/4” 4” 4-5/8” 610 25 57
STANDARD CLEVIS HANGER SER W415 3/4” - 1-1/2”  W415112 1-1/4” 3/8” 3-5/8” 4-1/2” 5-1/4” 610 25 63
STANDARD CLEVIS HANGER SER W415 3/4” - 1-1/2”  W415114 1-1/2” 3/8” 4” 4-3/4” 5-3/4” 610 25 71
STANDARD CLEVIS HANGER SER W415 2” - 12”  W415120 2” 3/8” 6-1/2” 7-1/2” 8-5/8” 610 25 84
STANDARD CLEVIS HANGER SER W415 2” - 12”  W415124 2-1/2” 1/2” 7-1/2” 8-1/2” 10” 1130 25 189
STANDARD CLEVIS HANGER SER W415 2” - 12”  W415130 3” 1/2” 7-1/2” 8-5/8” 10-1/4” 1130 25 199
STANDARD CLEVIS HANGER SER W415 2” - 12”  W415140 4” 5/8” 8-1/8” 9-3/8” 11-5/8” 1430 25 245
STANDARD CLEVIS HANGER SER W415 2” - 12”  W415150 5” 5/8” 8-3/4” 9-7/8” 12-5/8” 1430 15 298
STANDARD CLEVIS HANGER SER W415 2” - 12”  W415160 6” 3/4” 9-3/8” 10-5/8” 14” 1940 10 336
STANDARD CLEVIS HANGER SER W415 2” - 12”  W415180 8” 7/8” 11” 12-3/8” 16-3/4” 2000 10 670
STANDARD CLEVIS HANGER SER W415 2” - 12”  W4151100 10” 7/8” 12-1/4” 13-3/4” 19-1/8” 3600 3 1100
STANDARD CLEVIS HANGER SER W415 2” - 12”  W4151120 12” 7/8” 13-5/8” 15-1/8” 21-1/2” 3800 2 1380

Light Duty Clevis Hanger

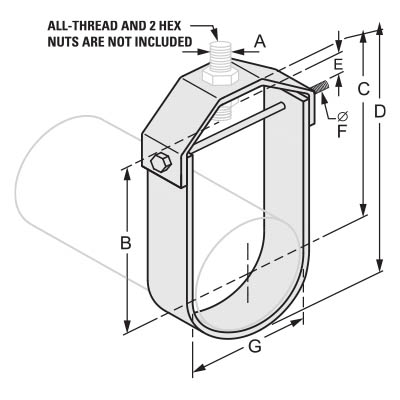

LIGHT DUTY CLEVIS HANGER – SERIES W420

CATEGORY PART # PIPE SIZE SIZE A SIZE B SIZE C SIZE D SIZE E SIZE F SIZE G MAX REC LOAD LBS CARTON QTY LBS PER 100PCS
LIGHT DUTY CLEVIS HANGER SER W420 W420104 1/2” 3/8” 1-1/2” 2-1/2” 3-1/2” 1-3/16” 1/4” 3/4” 600 100 9
LIGHT DUTY CLEVIS HANGER SER W420 W420106 3/4” 3/8” 1-5/8” 2-5/8” 3-1/2” 1-3/16” 1/4” 1-1/4” 600 100 9
LIGHT DUTY CLEVIS HANGER SER W420 W420110 1” 3/8” 1-3/4” 2-3/4” 3-1/2” 1-3/16” 1/4” 1-1/2” 600 100 10
LIGHT DUTY CLEVIS HANGER SER W420 W420112 1-1/4” 3/8” 1-7/8” 2-7/8” 3-5/8” 1-3/16” 1/4” 1-3/4” 600 100 11
LIGHT DUTY CLEVIS HANGER SER W420 W420114 1-1/2” 3/8” 2” 3” 4” 1-3/16” 1/4” 2” 600 100 12
LIGHT DUTY CLEVIS HANGER SER W420 W420120 2” 3/8” 2-3/8” 3-3/8” 4-3/4” 15/16” 1/4” 2-1/2” 600 100 14
LIGHT DUTY CLEVIS HANGER SER W420 W420124 2-1/2” 1/2” 3” 4” 5-1/2” 3/4” 3/8” 3-1/4” 1100 50 30
LIGHT DUTY CLEVIS HANGER SER W420 W420130 3” 1/2” 3-5/8” 4-5/8” 6” 1” 3/8” 3-3/4” 1100 50 32
LIGHT DUTY CLEVIS HANGER SER W420 W420134 3-1/2” 1/2” 4” 5” 6-3/4” 1-1/16” 3/8” 4-1/8” 1100 25 36
LIGHT DUTY CLEVIS HANGER SER W420 W420140 4” 5/8” 4-1/4” 5-1/4” 7-1/2” 1-3/16” 3/8” 4-7/8” 1400 25 44

Copper Clevis Hanger Series W430

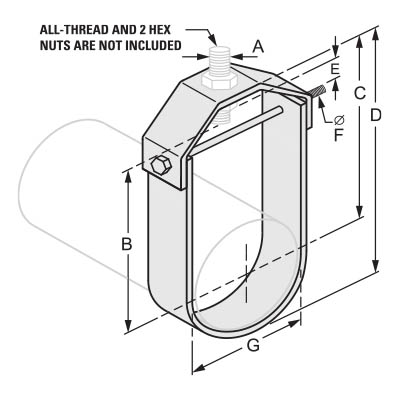

COPPER CLEVIS HANGER – SERIES W430

CATEGORY MATERIAL PART # PIPE SIZE SIZE A SIZE B SIZE C SIZE D SIZE E SIZE F SIZE G MAX REC LOAD LBS CARTON QTY LBS PER 100PCS
COPPER CLEVIS HANGER SER W430 Copper plated W430304 1/2” 3/8” 1-1/2” 2-1/2” 2-7/8” 1-3/16” 1/4” 11/16” 150 100 22
COPPER CLEVIS HANGER SER W430 Copper plated W430306 3/4” 3/8” 1-5/8” 2-5/8” 3-1/4” 1-3/16” 1/4” 3/4” 150 100 20
COPPER CLEVIS HANGER SER W430 Copper plated W430310 1” 3/8” 1-3/4” 2-3/4” 3-1/2” 1-3/16” 1/4” 1-1/4” 250 100 20
COPPER CLEVIS HANGER SER W430 Copper plated W430312 1-1/4” 3/8” 1-7/8” 2-7/8” 3-5/8” 1-3/16” 1/4” 1-1/2” 250 100 22
COPPER CLEVIS HANGER SER W430 Copper plated W430314 1-1/2” 3/8” 2” 3” 4” 1-3/16” 1/4” 1-3/4” 250 100 18
COPPER CLEVIS HANGER SER W430 Copper plated W430320 2” 3/8” 1-3/8” 3-3/8” 4-1/8” 1-3/16” 1/4” 2-3/8” 250 100 24
COPPER CLEVIS HANGER SER W430 Copper plated W430324 2-1/2” 1/2” 3” 4” 5” 1-3/4” 1/4” 2-3/4” 350 50 28
COPPER CLEVIS HANGER SER W430 Copper plated W430330 3” 1/2” 3-5/8” 4-5/8” 5-1/2” 1-3/4” 3/8” 3-3/8” 350 BULK 70
COPPER CLEVIS HANGER SER W430 Copper plated W430334 3-1/2” 1/2” 4” 5” 5-7/8” 1-3/4” 3/8” 4” 350 BULK 84
COPPER CLEVIS HANGER SER W430 Copper plated W430340 4” 5/8” 4-1/4” 5-1/4” 6-3/8” 1-3/4” 3/8” 4-1/2” 400 BULK 90
