G5 Barrier Installed at Charlotte Airport

Charlotte Airport faced a containment challenge when its new runway and access road were constructed. A curved section sat atop a 40-foot embankment overlooking a busy taxiway. To reduce the risk of incidents involving heavy vehicles in this area, the Gregory Guardian 5 (G5) high-containment barrier system was put in place, offering the necessary strength, versatility, and reliable performance.

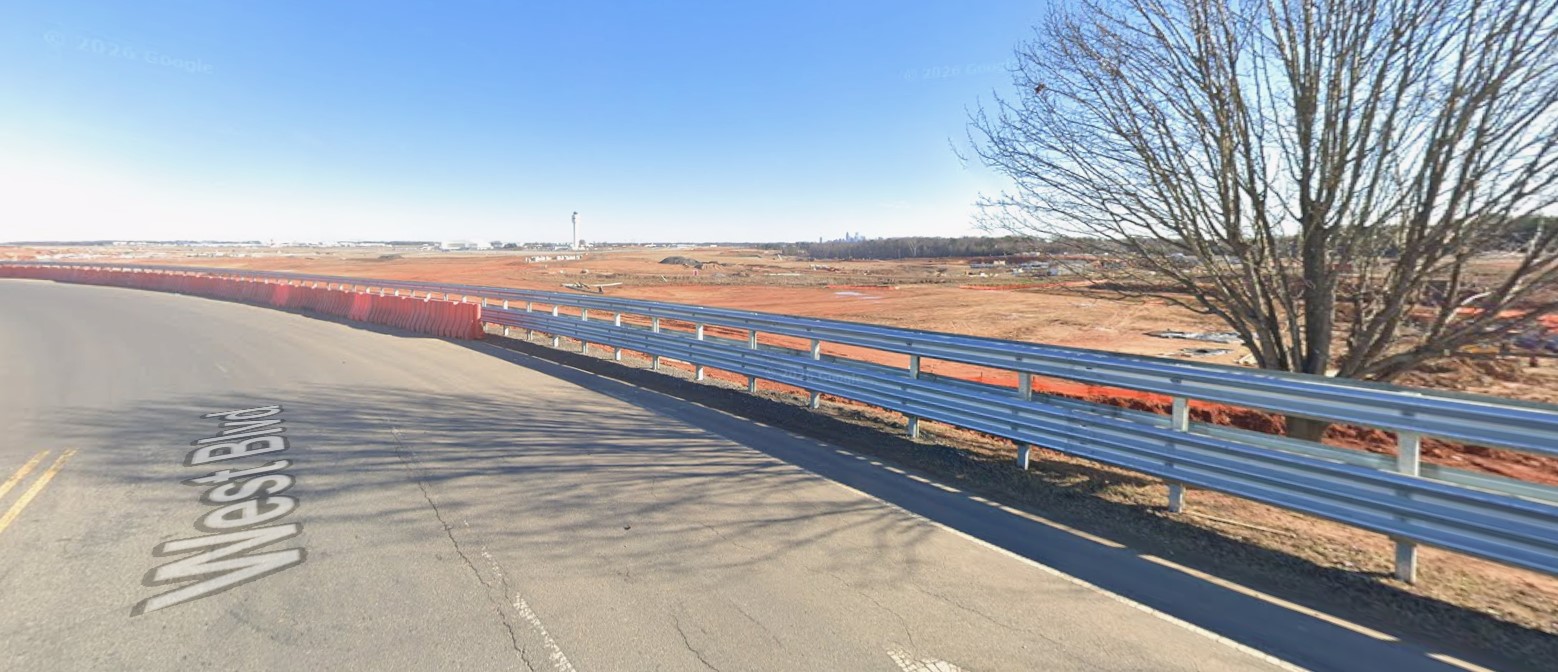

G5 installed along a curved access road above a 40-foot embankment.

Protecting a High-Risk Access Road

To reduce risks to truck drivers, vehicles, and airport infrastructure, the G5 high-containment barrier was installed along a curved access road leading to the Norfolk Southern railroad container terminal. Without adequate containment measures, a fully loaded tractor-trailer could potentially fall as much as 40 feet onto a newly constructed airport taxiway, posing risks of severe injury, considerable infrastructure damage, and costly disruptions to flight operations.

The solution required:

• Engineering to withstand heavy-vehicle impacts
• Adaptability to roadway conditions
• Reliability under sustained traffic conditions

The Gregory Guardian 5 barrier fulfilled all these criteria.

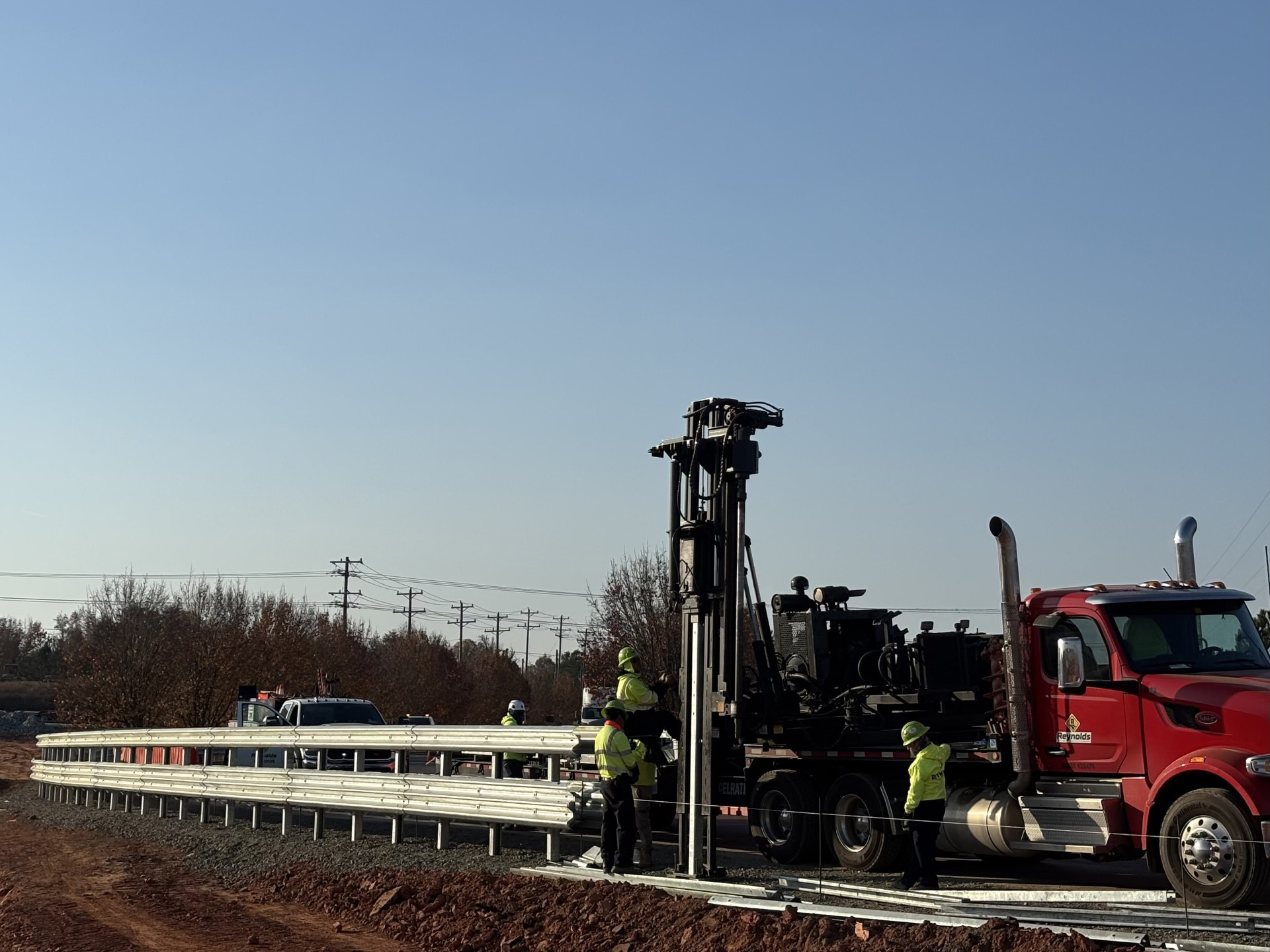

Reynolds Fence & Guardrail crews driving posts during G5 installation.

Experienced Installation Partner

Reynolds Fence & Guardrail, a reputable industry leader serving departments of transportation and municipalities since 1983, was responsible for the installation. Although the unique curve and TL-5 design introduced some minor challenges on-site, these issues were promptly resolved through close cooperation among Gregory Highway, Reynolds Fence & Guardrail, and airport officials.

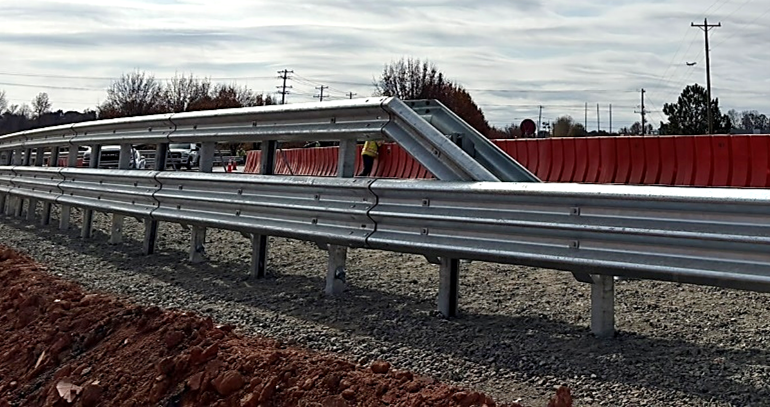

Open-bottom G5 design supports drainage and maintenance access.

Designed for Heavy-Vehicle Impact

The Gregory Guardian 5 (G5) is a MASH TL-5 longitudinal median barrier, engineered to safely capture and redirect a fully loaded 80,000-pound tractor-trailer.

Key Performance Characteristics:

• Meets all MASH TL-5 standards
• Maximum dynamic deflection: 4’4”
• Working width: 5’5”
• Bi-directional median or roadside applications
• Transition capability to standard AASHTO W-Beam or Thrie-Beam systems

For airport environments where heavy maintenance trucks, fuel vehicles, and service equipment operate daily, TL-5 performance provides critical assurance.

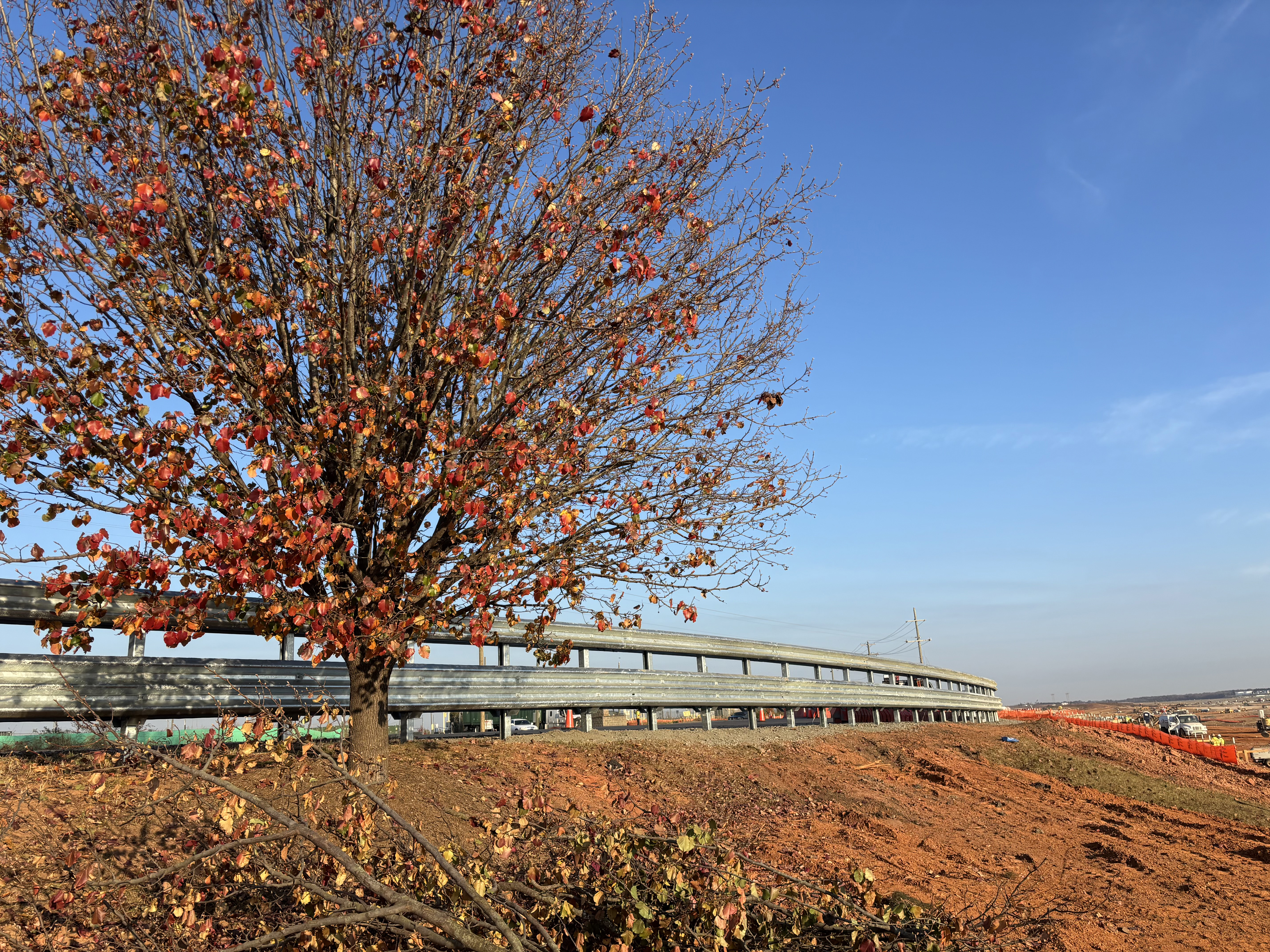

Completed G5 installation securing the access road and protecting runway infrastructure.

A Model of Collaboration

The Charlotte Airport G5 installation reflects strong collaboration between Gregory Highway, Reynolds Fence & Guardrail, and airport officials. More importantly, it demonstrates how engineered steel barrier systems address complex infrastructure challenges in demanding environments.

See how projects like this come together and learn how America Builds with Gregory.
