Cast Iron Pipe Roller

CAST IRON PIPE ROLLER – SERIES W600

CATEGORY MATERIAL PART # PIPE SIZE SIZE A SIZE D LBS PER 100PCS
CAST IRON PIPE ROLLER SER W600 Carbon steel W600120 2” 3/8” 2-5/8” 40
CAST IRON PIPE ROLLER SER W600 Carbon steel W600124 2-1/2” 1/2” 3-1/8” 70
CAST IRON PIPE ROLLER SER W600 Carbon steel W600130 3” 1/2” 3-3/4” 77
CAST IRON PIPE ROLLER SER W600 Carbon steel W600134 3-1/2” 1/2” 4-1/4” 95
CAST IRON PIPE ROLLER SER W600 Carbon steel W600140 4” 1/2” 4-3/4” 116
CAST IRON PIPE ROLLER SER W600 Carbon steel W600150 5” 5/8” 5-3/4” 179
CAST IRON PIPE ROLLER SER W600 Carbon steel W600160 6” 3/4” 6-7/8” 312
CAST IRON PIPE ROLLER SER W600 Carbon steel W600180 8” 7/8” 8-7/8” 500
CAST IRON PIPE ROLLER SER W600 Carbon steel W6001100 10” 7/8” 11” 665
CAST IRON PIPE ROLLER SER W600 Carbon steel W6001120 12” 7/8” 13” 779
CAST IRON PIPE ROLLER SER W600 Carbon steel W6001140 14” 1-1/8” 14-1/4” 1698
CAST IRON PIPE ROLLER SER W600 Carbon steel W6001160 16” 1-1/4” 16-1/4” 2230
CAST IRON PIPE ROLLER SER W600 Carbon steel W6001180 18” 1-1/4” 18-1/4” 2485
CAST IRON PIPE ROLLER SER W600 Carbon steel W6001200 20” 1-1/4” 20-1/4” 3290

Short Pipe Roller

SHORT PIPE ROLLER – SERIES W601

CATEGORY MATERIAL PART # PIPE SIZE SIZE A SIZE B SIZE C SIZE D MAX REC LOAD LBS  LBS PER 100PCS
SHORT PIPE ROLLER SER W601 Cast Iron W610120 2” 9/16” 1-13/16” 1-15/16” 2-3/4” 390 135
SHORT PIPE ROLLER SER W601 Cast Iron W610124 2-1/2” 9/16” 2-1/8” 1-15/16” 2-3/4” 390 175
SHORT PIPE ROLLER SER W601 Cast Iron W610130 3” 9/16” 2-7/16” 1-15/16” 2-3/4” 390 200
SHORT PIPE ROLLER SER W601 Cast Iron W610134 3-1/2” 9/16” 2-11/16” 1-15/16” 2-3/4” 390 260
SHORT PIPE ROLLER SER W601 Cast Iron W610140 4” 9/16” 3” 2-1/4” 3-3/4” 950 300
SHORT PIPE ROLLER SER W601 Cast Iron W610150 5” 9/16” 3-9/16” 2-1/4” 3-3/4” 950 512
SHORT PIPE ROLLER SER W601 Cast Iron W610160 6” 9/16” 4-1/8” 2-1/4” 3-3/4” 950 650
SHORT PIPE ROLLER SER W601 Cast Iron W610180 8” 13/16” 5-1/4” 3-3/16” 6” 2100 1200
SHORT PIPE ROLLER SER W601 Cast Iron W6101100 10” 13/16” 6-3/8” 3-3/16” 6” 2100 1715
SHORT PIPE ROLLER SER W601 Cast Iron W6101120 12” 1” 7-1/2” 4” 8” 3075 2750
SHORT PIPE ROLLER SER W601 Cast Iron W6101140 14” 1” 8-3/16” 4” 8” 3075 3600
SHORT PIPE ROLLER SER W601 Cast Iron W6101160 16” 1-1/4” 9-5/16” 4-1/2” 9” 4980 4945
SHORT PIPE ROLLER SER W601 Cast Iron W6101180 18” 1-1/4” 10-3/8” 4-1/2” 9” 4980 5535
SHORT PIPE ROLLER SER W601 Cast Iron W6101200 20” 1-1/4” 11-7/16” 4-1/2” 9” 4980 6335
SHORT PIPE ROLLER SER W601 Cast Iron W6101240 24” 1-1/2” 13-7/16” 4-3/8” 10” 6100 3600
SHORT PIPE ROLLER SER W601 Cast Iron W6101300 30” 1-7/8” 16-9/16” 5-3/16” 12-1/4” 7500 4945
SHORT PIPE ROLLER SER W601 Cast Iron W6101360 36” 2-1/8” 19-11/16” 6” 14” 12000 5535
SHORT PIPE ROLLER SER W601 Cast Iron W6101420 42” 2-1/8” 22-3/4” 6” 14” 12000 6335

Adjustable Roller Hanger

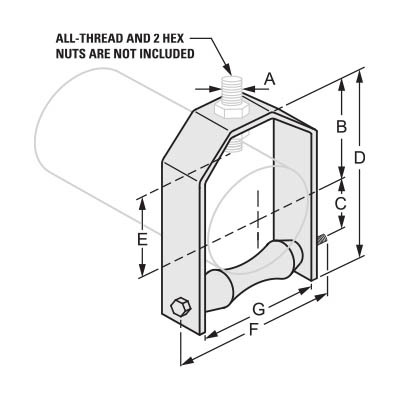

ADJUSTABLE ROLLER HANGER – SERIES W610

CATEGORY MATERIAL PART # PIPE SIZE SIZE A SIZE B SIZE C SIZE D SIZE E SIZE F SIZE G MAX REC LOAD LBS LBS PER 100PCS
ADJUSTABLE ROLLER HANGER SER W610 Carbon steel yoke & cast iron roller W610120 2” 1/2” 4” 1-5/8” 6-1/2” 3” 4-1/4” 2-5/8” 280 135
ADJUSTABLE ROLLER HANGER SER W610 Carbon steel yoke & cast iron roller W610124 2-1/2” 1/2” 3-7/8” 2” 6-5/8” 2-3/4” 4-3/4” 3-3/8” 280 175
ADJUSTABLE ROLLER HANGER SER W610 Carbon steel yoke & cast iron roller W610130 3” 1/2” 4-3/8” 2-1/4” 7-1/4” 3-3/8” 5-1/2” 3-3/4” 310 200
ADJUSTABLE ROLLER HANGER SER W610 Carbon steel yoke & cast iron roller W610134 3-1/2” 1/2” 4-5/8” 2-1/2” 8” 3-5/8” 6” 4-1/4” 390 260
ADJUSTABLE ROLLER HANGER SER W610 Carbon steel yoke & cast iron roller W610140 4” 5/8” 4-3/4” 2-3/4” 8-1/2” 3-3/4” 6-1/2” 4-7/8” 475 300
ADJUSTABLE ROLLER HANGER SER W610 Carbon steel yoke & cast iron roller W610150 5” 5/8” 5-7/8” 3-3/8” 9-7/8” 4-1/4” 8” 5-7/8” 685 512
ADJUSTABLE ROLLER HANGER SER W610 Carbon steel yoke & cast iron roller W610160 6” 3/4” 5-7/8” 4” 11-3/8” 4-1/4” 9” 7” 780 650
ADJUSTABLE ROLLER HANGER SER W610 Carbon steel yoke & cast iron roller W610180 8” 7/8” 7-1/4” 5-1/8” 13-3/4” 5-1/2” 12” 9” 780 1200
ADJUSTABLE ROLLER HANGER SER W610 Carbon steel yoke & cast iron roller W6101100 10” 7/8” 9” 6-3/8” 17” 6-7/8” 14-1/4” 11” 965 1715
ADJUSTABLE ROLLER HANGER SER W610 Carbon steel yoke & cast iron roller W6101120 12” 7/8” 9-5/8” 7-3/8” 18-7/8” 7-7/8” 17” 13” 965 2750
ADJUSTABLE ROLLER HANGER SER W610 Carbon steel yoke & cast iron roller W6101140 14” 1” 11-1/4” 8-3/8” 21-7/8” 9-1/4” 18-1/2” 14-1/4” 1200 3600
ADJUSTABLE ROLLER HANGER SER W610 Carbon steel yoke & cast iron roller W6101160 16” 1” 12-1/4” 9-3/8” 24-1/8” 10-1/4” 20” 16-1/4” 1200 4945
ADJUSTABLE ROLLER HANGER SER W610 Carbon steel yoke & cast iron roller W6101180 18” 1” 13-1/4” 10-1/2” 26-1/2” 11-1/4” 22” 18-1/4” 1400 5535
ADJUSTABLE ROLLER HANGER SER W610 Carbon steel yoke & cast iron roller W6101200 20” 1” 14-1/4” 11-5/8” 28-1/8” 12-1/4” 24” 20-1/4” 1600 6335

Chair Type Roller Support

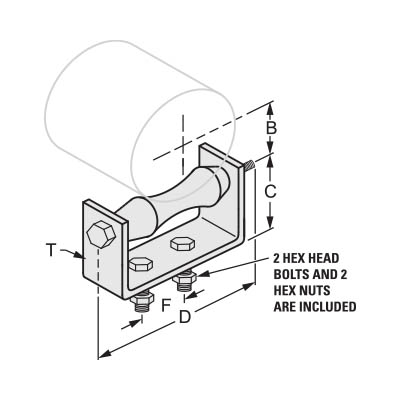

CHAIR TYPE ROLLER SUPPORT – SERIES W620

CATEGORY MATERIAL PART # PIPE SIZE SIZE B SIZE C SIZE D THICKNESS T SIZE F MAX REC LOAD LBS LBS PER 100PCS
CHAIR TYPE ROLLER SUPPORT SER W620 Cast iron roller, carbon steel chair & hardware W620120 2” 1-5/8” 1-1/2” 3-7/8” 3 ga. x 1-1/4” 1-1/4” 390 106
CHAIR TYPE ROLLER SUPPORT SER W620 Cast iron roller, carbon steel chair & hardware W620124 2-1/2” 2” 1-5/8” 5” 3 ga. x 1-1/4” 1-1/4” 390 144
CHAIR TYPE ROLLER SUPPORT SER W620 Cast iron roller, carbon steel chair & hardware W620130 3” 2-1/4” 1-3/4” 5-3/8” 3 ga. x 1-1/4” 2” 390 163
CHAIR TYPE ROLLER SUPPORT SER W620 Cast iron roller, carbon steel chair & hardware W620134 3-1/2” 2-5/8” 2” 6-1/4” 3/8” x 1-1/2” 2” 390 252
CHAIR TYPE ROLLER SUPPORT SER W620 Cast iron roller, carbon steel chair & hardware W620140 4” 2-3/4” 2-1/4” 6-3/4” 3/8” x 1-1/2” 2” 950 288
CHAIR TYPE ROLLER SUPPORT SER W620 Cast iron roller, carbon steel chair & hardware W620150 5” 3-1/2” 2-1/2” 8” 3/8” x 1-1/2” 3” 950 400
CHAIR TYPE ROLLER SUPPORT SER W620 Cast iron roller, carbon steel chair & hardware W620160 6” 4” 2-3/4” 9-1/8” 3/8” x 2” 3-1/4” 950 625
CHAIR TYPE ROLLER SUPPORT SER W620 Cast iron roller, carbon steel chair & hardware W620180 8” 5-1/8” 3” 11-1/2” 3/8” x 2” 3-3/8” 1350 731
CHAIR TYPE ROLLER SUPPORT SER W620 Cast iron roller, carbon steel chair & hardware W6201100 10” 6-3/8” 3-5/8” 14-1/4” 1/2” x 2” 5-1/4” 1750 1158
CHAIR TYPE ROLLER SUPPORT SER W620 Cast iron roller, carbon steel chair & hardware W6201120 12” 7-1/2” 4-1/8” 16-1/4” 1/2” x 2” 5-1/2” 2400 1525
CHAIR TYPE ROLLER SUPPORT SER W620 Cast iron roller, carbon steel chair & hardware W6201140 14” 8-3/8” 4-5/8” 18” 1/2” x 2-1/2” 6-1/2” 3130 2807
CHAIR TYPE ROLLER SUPPORT SER W620 Cast iron roller, carbon steel chair & hardware W6201160 16” 9-1/2” 5-3/8” 20” 1/2” x 3” 8-1/4” 3970 3493
CHAIR TYPE ROLLER SUPPORT SER W620 Cast iron roller, carbon steel chair & hardware W6201180 18” 10-1/2” 6-5/8” 23” 1/2” x 3” 9-1/4” 2400 4435
CHAIR TYPE ROLLER SUPPORT SER W620 Cast iron roller, carbon steel chair & hardware W6201200 20” 11-5/8” 6-3/8” 26” 5/8” x 3” 10-3/8” 4550 5634
CHAIR TYPE ROLLER SUPPORT SER W620 Cast iron roller, carbon steel chair & hardware W6201240 24” 14” 9-1/4” 30” 3/4” x 4” 12-1/4” 6160 8752

Pipe Roller Stand

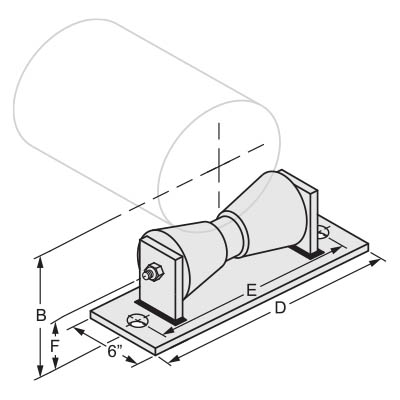

PIPE ROLLER STAND – SERIES W621

CATEGORY MATERIAL PART # PIPE SIZE SIZE A SIZE B SIZE D SIZE E SIZE F MAX REC LOAD LBS LBS PER 100PCS
PIPE ROLLER STAND SER W621 Cast iron pipe roller w/ low carbon steel stand & axle W621120 2” 1” 3-1/2” 8-3/8” 6-3/8” 1-3/4” 390 448
PIPE ROLLER STAND SER W621 Cast iron pipe roller w/ low carbon steel stand & axle W621124 2-1/2” 1” 3-7/8” 8-3/8” 6-3/8” 1-3/4” 390 448
PIPE ROLLER STAND SER W621 Cast iron pipe roller w/ low carbon steel stand & axle W621130 3” 1” 4-1/8” 8-3/8” 6-3/8” 1-3/4” 390 448
PIPE ROLLER STAND SER W621 Cast iron pipe roller w/ low carbon steel stand & axle W621134 3-1/2” 1” 4-3/8” 8-3/8” 6-3/8” 1-3/4” 390 448
PIPE ROLLER STAND SER W621 Cast iron pipe roller w/ low carbon steel stand & axle W621140 4” 1” 4-13/16” 9-7/8” 7-7/8” 2-1/16” 950 685
PIPE ROLLER STAND SER W621 Cast iron pipe roller w/ low carbon steel stand & axle W621150 5” 1” 5-7/16” 9-7/8” 7-7/8” 2-1/16” 950 685
PIPE ROLLER STAND SER W621 Cast iron pipe roller w/ low carbon steel stand & axle W621160 6” 1” 6-1/16” 9-7/8” 7-7/8” 2-1/16” 950 685

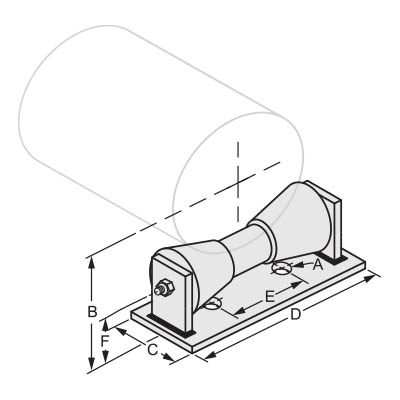

PIPE ROLLER STAND – SERIES W622

CATEGORY MATERIAL PART # PIPE SIZE SIZE A SIZE B SIZE C SIZE D SIZE E SIZE F MAX REC LOAD LBS LBS PER 100PCS
PIPE ROLLER STAND SER W622 Cast iron pipe roller w/ low carbon steel stand & axle W622180 8” 1” 8-11/16” 7” 8-5/8” 4-1/8” 3-7/16” 2100 1409
PIPE ROLLER STAND SER W622 Cast iron pipe roller w/ low carbon steel stand & axle W6221100 10” 1” 9-13/16” 7” 8-5/8” 4-1/8” 3-7/16” 2100 1409
PIPE ROLLER STAND SER W622 Cast iron pipe roller w/ low carbon steel stand & axle W6221120 12” 1” 11-3/8” 8” 10-7/8” 5-13/16” 3-7/8” 3075 2209
PIPE ROLLER STAND SER W622 Cast iron pipe roller w/ low carbon steel stand & axle W6221140 14” 1” 12” 8” 10-7/8” 5-13/16” 3-7/8” 3075 2209
PIPE ROLLER STAND SER W622 Cast iron pipe roller w/ low carbon steel stand & axle W6221160 16” 1” 13-5/8” 9” 12-1/2” 6-7/8” 4-1/4” 4980 3200
PIPE ROLLER STAND SER W622 Cast iron pipe roller w/ low carbon steel stand & axle W6221180 18” 1” 14-5/8” 9” 12-1/2” 6-7/8” 4-1/4” 4980 3200
PIPE ROLLER STAND SER W622 Cast iron pipe roller w/ low carbon steel stand & axle W6221200 20” 1” 15/5/8” 9” 12-1/2” 6-7/8” 4-1/4” 4980 3200
PIPE ROLLER STAND SER W622 Cast iron pipe roller w/ low carbon steel stand & axle W6221240 24” 1” 17-3/4” 9” 13-1/2” 7-5/8” 4-3/8” 6100 4143
PIPE ROLLER STAND SER W622 Cast iron pipe roller w/ low carbon steel stand & axle W6221300 30” 1” 21-7/8” 12” 17” 10” 5-1/8” 7500 8000
PIPE ROLLER STAND SER W622 Cast iron pipe roller w/ low carbon steel stand & axle W6221360 36” 1” 25-3/4” 12” 20” 12” 5-3/4” 12000 12500
PIPE ROLLER STAND SER W622 Cast iron pipe roller w/ low carbon steel stand & axle W6221420 42” 1” 28-7/8” 12” 20” 12” 5-3/4” 12000 12500

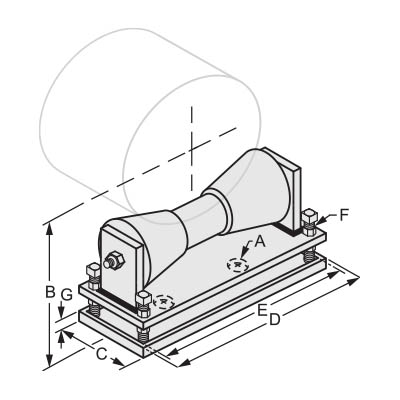

ADJUSTABLE PIPE ROLLER STAND w/ BASE – SERIES W623

CATEGORY MATERIAL PART # PIPE SIZE SIZE A SIZE B MIN SIZE B MAX SIZE C SIZE D SIZE E BOLT SIZE F SIZE G MAX REC LOAD LBS  LBS PER 100PCS
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W623120 2” 1” 5-1/8” 5-3/8” 5-1/2” 7” 3-7/8” 5/8” 1” 390 1203
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W623124 2-1/2” 1” 5-3/8” 5-5/8” 5-1/2” 7” 3-7/8” 5/8” 1” 390 1203
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W623130 3” 1” 5-3/4” 6” 5-1/2” 7” 3-7/8” 5/8” 1” 390 1203
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W623134 3-1/2” 1” 6” 6-1/4” 5-1/2” 7” 3-7/8” 5/8” 1” 390 1203
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W623140 4” 1” 6-1/2” 7” 5-3/4” 8-3/8” 5-1/8” 5/8” 1” 950 1524
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W623150 5” 1” 7” 7-1/2” 5-3/4” 8-3/8” 5-1/8” 5/8” 1” 950 1524
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W623160 6” 1” 7-5/8” 8-1/8” 5-3/4” 8-3/8” 5-1/8” 5/8” 1” 950 1524
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W623180 8” 1” 10-3/8” 11-5/8” 6-3/4” 10-3/4” 7-3/8” 3/4” 1-1/8” 2100 3059
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W6231110 10” 1” 11-1/2” 12-3/4” 6-3/4” 10-3/4” 7-3/8” 3/4” 1-1/8” 2100 3059
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W6231120 12” 1” 13” 14-1/4” 8” 13-1/8” 9-1/2” 7/8” 1-3/8” 3075 4496
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W6231140 14” 1” 13-5/8” 14-7/8” 8” 13-1/8” 9-1/2” 7/8” 1-3/8” 3075 4496
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W6231160 16” 1” 15-1/4” 16-5/8” 8-5/8” 14-1/2” 11-1/8” 1” 1-3/8” 4980 6410
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W6231180 18” 1” 16-3/8” 17-3/4” 8-5/8” 14-1/2” 11-1/8” 1” 1-3/8” 4980 6410
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W6231200 20” 1” 17-3/8” 18-3/4” 8-5/8” 14-1/2” 11-1/8” 1” 1-3/8” 4980 6410
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W6231240 24” 1” 19-5/8” 21” 8-5/8” 16” 12-1/4” 1” 1-3/8” 6100 7668
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W6231300 30” 1” 24” 26-3/4” 10-1/2” 19-5/8” 15-3/4” 1-1/4” 1-5/8” 7500 14225
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W6231360 36” 1” 13-3/16” 29-3/16” 11-1/2” 22” 16” 1-1/2” 1-5/8” 12000 15623
ADJUSTABLE PIPE ROLLER STAND w/ BASE SER W623 Cast iron pipe roller w/ low carbon steel stand, axle & adjusting screws w/ locknuts W6231420 42” 1” 29-1/4” 32-1/4” 11-1/2” 22” 16” 1-1/2” 1-5/8” 12000 15623

Two Rod Type Roller Hanger

TWO ROD TYPE ROLLER HANGER – SERIES W630

CATEGORY MATERIAL PART # PIPE SIZE SIZE A SIZE B SIZE C SIZE D SIZE E MAX REC LOAD LBS  LBS PER 100PCS
TWO ROD TYPE ROLLER HANGER SER W630 Cast iron roller & sockets, carbon steel hardware W630120 2” 3/8” 1-5/8” 4-1/8” 5-1/4” 3-1/8” 600 57
TWO ROD TYPE ROLLER HANGER SER W630 Cast iron roller & sockets, carbon steel hardware W630124 2-1/2” 1/2” 2” 4-7/8” 6-1/4” 3-5/8” 660 100
TWO ROD TYPE ROLLER HANGER SER W630 Cast iron roller & sockets, carbon steel hardware W630130 3” 1/2” 2-1/4” 5-1/2” 6-7/8” 4” 700 110
TWO ROD TYPE ROLLER HANGER SER W630 Cast iron roller & sockets, carbon steel hardware W630134 3-1/2” 1/2” 2-1/2” 6-1/8” 7-1/2” 4-1/8” 750 135
TWO ROD TYPE ROLLER HANGER SER W630 Cast iron roller & sockets, carbon steel hardware W630140 4” 1/2” 2-3/4” 6-3/4” 8-1/4” 4-3/4” 750 165
TWO ROD TYPE ROLLER HANGER SER W630 Cast iron roller & sockets, carbon steel hardware W630150 5” 5/8” 3-1/2” 8” 9-5/8” 5-1/2” 750 257
TWO ROD TYPE ROLLER HANGER SER W630 Cast iron roller & sockets, carbon steel hardware W630160 6” 3/4” 4” 9-1/2” 11-1/2” 6-1/2” 1070 445
TWO ROD TYPE ROLLER HANGER SER W630 Cast iron roller & sockets, carbon steel hardware W630180 8” 7/8” 5-1/8” 12” 14” 8” 1350 715
TWO ROD TYPE ROLLER HANGER SER W630 Cast iron roller & sockets, carbon steel hardware W6301100 10” 7/8” 6-3/8” 14” 16-1/8” 9-1/4” 1730 950
TWO ROD TYPE ROLLER HANGER SER W630 Cast iron roller & sockets, carbon steel hardware W6301120 12” 7/8” 7-1/2” 16-1/4” 18” 10-1/2” 2400 1590
TWO ROD TYPE ROLLER HANGER SER W630 Cast iron roller & sockets, carbon steel hardware W6301140 14” 1” 8-3/8” 17-3/4” 20-1/8” 12-1/8” 3130 2425
TWO ROD TYPE ROLLER HANGER SER W630 Cast iron roller & sockets, carbon steel hardware W6301160 16” 1” 9-1/2” 19-3/4” 22-1/8” 13” 3970 3185
TWO ROD TYPE ROLLER HANGER SER W630 Cast iron roller & sockets, carbon steel hardware W6301180 18” 1” 10-1/2” 21-7/8” 24-1/2” 14-1/4” 4200 3550
TWO ROD TYPE ROLLER HANGER SER W630 Cast iron roller & sockets, carbon steel hardware W6301200 20” 1-1/4” 11-5/8” 24-1/4” 27-1/2” 15-3/4” 4500 4700
TWO ROD TYPE ROLLER HANGER SER W630 Cast iron roller & sockets, carbon steel hardware W6301240 24” 1-1/2” 14” 28-5/8” 32-1/8” 18-3/4” 6160 7630
TWO ROD TYPE ROLLER HANGER SER W630 Cast iron roller & sockets, carbon steel hardware W6301300 30” 1-1/2” 17-1/2” 35-1/2” 39” 22-7/8” 7290 12990

Adjustable Type Roller Support

ADJUSTABLE TYPE ROLLER SUPPORT – SERIES W640

CATEGORY MATERIAL PART # PIPE SIZE SIZE A SIZE B SIZE C SIZE D LBS PER 100PCS
ADJUSTABLE TYPE ROLLER SUPPORT SER W640 Cast iron roller & sockets, carbon steel hardware W640120 2” 3/8” 1-1/2” 4-1/8” 12” 132
ADJUSTABLE TYPE ROLLER SUPPORT SER W640 Cast iron roller & sockets, carbon steel hardware W640124 2-1/2” 1/2” 1-7/8” 4-7/8” 12” 230
ADJUSTABLE TYPE ROLLER SUPPORT SER W640 Cast iron roller & sockets, carbon steel hardware W640130 3” 1/2” 2-1/4” 5-1/2” 12” 252
ADJUSTABLE TYPE ROLLER SUPPORT SER W640 Cast iron roller & sockets, carbon steel hardware W640134 3-1/2” 1/2” 2-1/2” 6-1/8” 12” 261
ADJUSTABLE TYPE ROLLER SUPPORT SER W640 Cast iron roller & sockets, carbon steel hardware W640140 4” 1/2” 2-3/4” 6-3/4” 12” 388
ADJUSTABLE TYPE ROLLER SUPPORT SER W640 Cast iron roller & sockets, carbon steel hardware W640150 5” 5/8” 3-1/2” 8” 12” 475
ADJUSTABLE TYPE ROLLER SUPPORT SER W640 Cast iron roller & sockets, carbon steel hardware W640160 6” 3/4” 4” 9-1/2” 12” 765
ADJUSTABLE TYPE ROLLER SUPPORT SER W640 Cast iron roller & sockets, carbon steel hardware W640180 8” 7/8” 5-1/8” 12” 12” 1293
ADJUSTABLE TYPE ROLLER SUPPORT SER W640 Cast iron roller & sockets, carbon steel hardware W6401100 10” 7/8” 6-3/8” 14” 12” 1384
ADJUSTABLE TYPE ROLLER SUPPORT SER W640 Cast iron roller & sockets, carbon steel hardware W6401120 12” 7/8” 7-1/4” 16-1/4” 12” 2056
ADJUSTABLE TYPE ROLLER SUPPORT SER W640 Cast iron roller & sockets, carbon steel hardware W6401140 14” 1” 8-1/2” 17-3/4” 12” 2785
ADJUSTABLE TYPE ROLLER SUPPORT SER W640 Cast iron roller & sockets, carbon steel hardware W6401160 16” 1” 9-1/2” 19-3/4” 18” 4305
ADJUSTABLE TYPE ROLLER SUPPORT SER W640 Cast iron roller & sockets, carbon steel hardware W6401180 18” 1” 10-1/2” 21-7/8” 18” 4970
ADJUSTABLE TYPE ROLLER SUPPORT SER W640 Cast iron roller & sockets, carbon steel hardware W6401200 20” 1-1/4” 11-5/8” 24-1/4” 18” 6540
ADJUSTABLE TYPE ROLLER SUPPORT SER W640 Cast iron roller & sockets, carbon steel hardware W6401240 24” 1-1/2” 14” 28-5/8” 24” 11150
ADJUSTABLE TYPE ROLLER SUPPORT SER W640 Cast iron roller & sockets, carbon steel hardware W6401300 30” 1-1/2” 17-1/2” 35-1/2” 24” 20880

ADJUSTABLE PIPE ROLLER SUPPORT – SERIES W641

CATEGORY MATERIAL PART # PIPE SIZE SIZE A SIZE B SIZE C SIZE D SIZE E SIZE F MAX REC LOAD LBS  LBS PER 100PCS
ADJUSTABLE PIPE ROLLER SUPPORT SER W641 Cast iron pipe roller w/ low carbon steel rod w/ 4 hex nuts W641120 2” 3/8” 1-5/8” 4-1/2” 4-1/2” 2-3/4” 2-7/8” 450 0.56
ADJUSTABLE PIPE ROLLER SUPPORT SER W641 Cast iron pipe roller w/ low carbon steel rod w/ 4 hex nuts W641124 2-1/2” 1/2” 2” 4-3/8” 4-1/2” 3-1/2” 3-1/8” 450 0.93
ADJUSTABLE PIPE ROLLER SUPPORT SER W641 Cast iron pipe roller w/ low carbon steel rod w/ 4 hex nuts W641130 3” 1/2” 2-1/4” 5-1/8” 4-1/2” 3-1/2” 3-3/4” 450 1.01
ADJUSTABLE PIPE ROLLER SUPPORT SER W641 Cast iron pipe roller w/ low carbon steel rod w/ 4 hex nuts W641134 3-1/2” 1/2” 2-5/8” 5-7/8” 4-1/2” 3-1/2” 4-1/4” 450 1.26
ADJUSTABLE PIPE ROLLER SUPPORT SER W641 Cast iron pipe roller w/ low carbon steel rod w/ 4 hex nuts W641140 4” 1/2” 2-3/4” 6-3/4” 4-1/2” 3-1/2” 4-3/4” 560 1.32
ADJUSTABLE PIPE ROLLER SUPPORT SER W641 Cast iron pipe roller w/ low carbon steel rod w/ 4 hex nuts W641150 5” 5/8” 3-1/2” 7-1/2” 4-1/2” 3-1/2” 5-3/4” 560 2.39
ADJUSTABLE PIPE ROLLER SUPPORT SER W641 Cast iron pipe roller w/ low carbon steel rod w/ 4 hex nuts W641160 6” 3/4” 4” 8-1/2” 4-1/2” 3-1/2” 6-7/8” 780 3.56
ADJUSTABLE PIPE ROLLER SUPPORT SER W641 Cast iron pipe roller w/ low carbon steel rod w/ 4 hex nuts W641180 8” 7/8” 5-1/8” 11” 5-1/4” 4” 8-7/8” 1800 5.88
ADJUSTABLE PIPE ROLLER SUPPORT SER W641 Cast iron pipe roller w/ low carbon steel rod w/ 4 hex nuts W6411100 10” 7/8” 6-3/8” 13-1/2” 5-1/4” 4” 11” 1800 9.23
ADJUSTABLE PIPE ROLLER SUPPORT SER W641 Cast iron pipe roller w/ low carbon steel rod w/ 4 hex nuts W6411120 12” 1” 7-1/2” 15-1/4” 6” 5” 13” 1800 12.97
ADJUSTABLE PIPE ROLLER SUPPORT SER W641 Cast iron pipe roller w/ low carbon steel rod w/ 4 hex nuts W6411140 14” 1-1/8” 8-3/8” 17-1/2” 7” 5-1/2” 14-3/8” 3075 22.46
ADJUSTABLE PIPE ROLLER SUPPORT SER W641 Cast iron pipe roller w/ low carbon steel rod w/ 4 hex nuts W6411160 16” 1-1/4” 9-1/2” 20” 8” 6” 16-3/8” 3075 28.35

Roller Socket

ROLLER SOCKET – SERIES W642

CATEGORY PART # TYPE # USE WITH PIPE ROLLER SIZE AXLE SIZE SIZE A SIZE B SIZE C SIZE D LBS PER 100PCS
ROLLER SOCKET SER W642 W642110 1 1” to 2” 3/8” 3/8” 5/8” 11/16” 1” 12
ROLLER SOCKET SER W642 W642120 2 2-1/2” to 3-1/2” 1/2” 1/2” 3/4” 11/16” 1-1/4” 27
ROLLER SOCKET SER W642 W642130 3 4” 1/2” 5/8” 7/8” 13/16” 1-1/4” 25
ROLLER SOCKET SER W642 W642140 4 5” 5/8” 5/8” 1” 1” 1-9/16” 53
ROLLER SOCKET SER W642 W642150 5 6” 3/4” 3/4” 1-1/4” 1-1/8” 1-13/16” 92
ROLLER SOCKET SER W642 W642160 6 8” to 10” 7/8” 7/8” 1-1/4” 1-1/8” 2-1/8” 14.4
ROLLER SOCKET SER W642 W642170 7 12” 1” 7/8” 1-3/8” 1-3/8” 2-1/4” 13.4
ROLLER SOCKET SER W642 W642180 8 14” 1-1/8” 1” 1-3/4” 1-3/8” 2-3/8” 20.3
ROLLER SOCKET SER W642 W642190 9 16” to 20” 1-1/4” 1-1/4” 1-13/16” 1-5/8” 3” 25.6
ROLLER SOCKET SER W642 W6421100 10 24” 1-1/2” 1-1/2” 2-3/16” 2-1/16” 3-3/8” 49.6
ROLLER SOCKET SER W642 W6421110 11 30” 1-3/4” 1-1/2” 2-9/16” 2-5/16” 4” 69.4

CPVC One-Hole Wrap Around Strap

CPVC ONE-HOLE WRAP AROUND STRAP – SERIES W650

CATEGORY PART # PIPE SIZE SIZE B SIZE C SIZE D MATERIAL CARTON QTY LBS PER 100PCS
CPVC ONE-HOLE WRAP AROUND STRAP SER W650 W650206 3/4” 1-1/2” 1.05 2-1/2” 20 ga. x 1-1/8” 100 9
CPVC ONE-HOLE WRAP AROUND STRAP SER W650 W650210 1” 1-5/8” 1.313 2-7/8” 20 ga. x 1-1/8” 100 10
CPVC ONE-HOLE WRAP AROUND STRAP SER W650 W650212 1-1/4” 1-3/4” 1.66 3” 20 ga. x 1-1/8” 100 12
CPVC ONE-HOLE WRAP AROUND STRAP SER W650 W650214 1-1/2” 1-7/8” 1.9 3-3/8” 20 ga. x 1-1/8” 100 12
CPVC ONE-HOLE WRAP AROUND STRAP SER W650 W650220 2” 2” 2.375 3-3/4” 20 ga. x 1-1/8” 100 15

Two-Hole CPVC Strap

TWO-HOLE CPVC STRAP – SERIES W660

CATEGORY PART # PIPE SIZE SIZE A SIZE B SIZE D MATERIAL CARTON QTY LBS PER 100PCS
TWO-HOLE CPVC STRAP SER W660 W660206 3/4” 1.05 2.4 3.31 20 ga. x 1-1/8” 100 9
TWO-HOLE CPVC STRAP SER W660 W660210 1” 1.313 2.64 3.55 20 ga. x 1-1/8” 100 10
TWO-HOLE CPVC STRAP SER W660 W660212 1-1/4” 1.66 3.01 3.925 20 ga. x 1-1/8” 100 12
TWO-HOLE CPVC STRAP SER W660 W660214 1-1/2” 1.9 3.265 4.185 20 ga. x 1-1/8” 100 12
TWO-HOLE CPVC STRAP SER W660 W660220 2” 2.375 3.665 4.575 20 ga. x 1-1/8” 100 15

CPVC Two-Hole 90 Degree Side Mount

CPVC TWO-HOLE 90 DEGREE SIDE MOUNT STRAP – SERIES W680

CATEGORY PART # PIPE SIZE SIZE B SIZE C SIZE D MATERIAL CARTON QTY LBS PER 100PCS
CPVC TWO-HOLE 90 DEGREE SIDE MOUNT STRAP SER W680 W680206 3/4” 1-1/2” 1.05 2-1/2” 20 ga. x 1-1/8” 100 9
CPVC TWO-HOLE 90 DEGREE SIDE MOUNT STRAP SER W680 W680210 1” 1-1/2” 1.313 2-7/8” 20 ga. x 1-1/8” 100 10
CPVC TWO-HOLE 90 DEGREE SIDE MOUNT STRAP SER W680 W680212 1-1/4” 1-3/4” 1.66 3” 20 ga. x 1-1/8” 100 11
CPVC TWO-HOLE 90 DEGREE SIDE MOUNT STRAP SER W680 W680214 1-1/2” 1-7/8” 1.9 3-3/8” 20 ga. x 1-1/8” 100 12
CPVC TWO-HOLE 90 DEGREE SIDE MOUNT STRAP SER W680 W680220 2” 2” 2.375 3-3/4” 20 ga. x 1-1/8” 100 13

Return Line Straight J-Hook

RETURN LINE STRAIGHT J-HOOK – SERIES W651

CATEGORY PART # PIPE SIZE SIZE C SIZE D MAX REC LOAD LBS  LBS PER 100PCS
RETURN LINE STRAIGHT J-HOOK SER W651 W651104 1/2” 5/8” 6-9/32” 200 51
RETURN LINE STRAIGHT J-HOOK SER W651 W651106 3/4” 11/16” 6-1/8” 200 53
RETURN LINE STRAIGHT J-HOOK SER W651 W651110 1” 7/8” 6-9/16” 200 80
RETURN LINE STRAIGHT J-HOOK SER W651 W651112 1-1/4” 1-1/16” 6-5/8” 200 83
RETURN LINE STRAIGHT J-HOOK SER W651 W651114 1-1/2” 1-3/16” 6-11/16” 200 87
RETURN LINE STRAIGHT J-HOOK SER W651 W651120 2” 1-5/8” 7-3/32” 200 93
RETURN LINE STRAIGHT J-HOOK SER W651 W651124 2-1/2” 1-11/16” 7-15/32” 350 116
RETURN LINE STRAIGHT J-HOOK SER W651 W651130 3” 2” 7-5/8” 350 127
RETURN LINE STRAIGHT J-HOOK SER W651 W651134 3-1/2” 2-1/4” 8-1/32” 350 137
RETURN LINE STRAIGHT J-HOOK SER W651 W651140 4” 2-5/8” 8-9/16” 450 219
RETURN LINE STRAIGHT J-HOOK SER W651 W651150 5” 3-3/16” 9” 450 350
RETURN LINE STRAIGHT J-HOOK SER W651 W651160 6” 3-11/16” 9-3/8” 450 415

Return Line Offset J-Hook

RETURN LINE OFFSET J-HOOK – SERIES W652

CATEGORY PART # PIPE SIZE SIZE C SIZE D MAX REC LOAD LBS LBS PER 100PCS
RETURN LINE OFFSET J-HOOK SER W652 W652104 1/2” 1-5/8” 6-9/32” 200 53
RETURN LINE OFFSET J-HOOK SER W652 W652106 3/4” 1-11/16” 6-1/8” 200 55
RETURN LINE OFFSET J-HOOK SER W652 W652110 1” 1-7/8” 6-9/16” 200 81
RETURN LINE OFFSET J-HOOK SER W652 W652112 1-1/4” 2-1/16” 6-5/8” 200 84
RETURN LINE OFFSET J-HOOK SER W652 W652114 1-1/2” 2-3/16” 6-11/16” 200 89
RETURN LINE OFFSET J-HOOK SER W652 W652120 2” 2-5/8” 7-3/32” 200 96
RETURN LINE OFFSET J-HOOK SER W652 W652124 2-1/2” 2-11/16” 7-15/32” 350 126
RETURN LINE OFFSET J-HOOK SER W652 W652130 3” 3” 7-5/8” 350 138
RETURN LINE OFFSET J-HOOK SER W652 W652134 3-1/2” 3-1/4” 8-1/32” 350 147
RETURN LINE OFFSET J-HOOK SER W652 W652140 4” 3-5/8” 8-9/16” 450 239
RETURN LINE OFFSET J-HOOK SER W652 W652150 5” 4-3/16” 9” 450 390
RETURN LINE OFFSET J-HOOK SER W652 W652160 6” 4-11/16” 9-3/8” 450 425

One-Hole Clip

ONE-HOLE CLIP – SERIES W655

CATEGORY PART # PIPE SIZE SIZE A SIZE B SIZE C SIZE D SIZE E
ONE-HOLE CLIP SER W655 W655104 1/2” 5/8” 5/8” 3/4” 1-3/4” 3/4”
ONE-HOLE CLIP SER W655 W655106 3/4” 7/8” 7/8” 3/4” 2-1/8” 1”
ONE-HOLE CLIP SER W655 W655110 1” 1-1/8” 1-1/8” 7/8” 2-5/8” 1-1/4”
ONE-HOLE CLIP SER W655 W655112 1-1/4” 1-1/2” 1-1/2” 7/8” 3-1/4” 1-5/8”
ONE-HOLE CLIP SER W655 W655114 1-1/2” 1-3/4” 1-3/4” 1-1/4” 3-3/4” 1-5/8”
ONE-HOLE CLIP SER W655 W655120 2” 2-1/8” 2-1/8” 1-1/2” 4-1/8” 2”

Two-Hole Strap

TWO-HOLE STRAP – SERIES W665

CATEGORY PART # PIPE SIZE SIZE B SIZE C SIZE D LBS PER 100PCS
TWO-HOLE STRAP SER W665 W665203 3/8” 2-3/8” 1-5/8” 5/8” 3
TWO-HOLE STRAP SER W665 W665204 1/2” 2-5/8” 1-7/8” 7/8” 4
TWO-HOLE STRAP SER W665 W665206 3/4” 2-3/4” 2” 1-1/8” 5
TWO-HOLE STRAP SER W665 W665210 1” 3-3/8” 2-5/8” 1-1/4” 6
TWO-HOLE STRAP SER W665 W665212 1-1/4” 4-1/4” 3-1/4” 1-5/8” 8
TWO-HOLE STRAP SER W665 W665214 1-1/2” 4-1/2” 3-1/2” 1-7/8” 10
TWO-HOLE STRAP SER W665 W665220 2” 5-1/2” 4-1/8” 2-3/8” 13

Short Pipe Strap

SHORT PIPE STRAP – SERIES W670

CATEGORY  PART # PIPE SIZE SIZE A SIZE B SIZE C SIZE D MATERIAL CARTON QTY LBS PER 100PCS
SHORT PIPE STRAP SER W670 W670104 1/2” 2-7/8” 15/16” 15/16” 3-7/8” 11 ga. x 1-1/4” 50 25
SHORT PIPE STRAP SER W670 W670106 3/4” 3” 1-1/8” 7/16” 4” 11 ga. x 1-1/4” 50 27
SHORT PIPE STRAP SER W670 W670110 1” 3-1/4” 1-3/8” 9/16” 4-1/4” 11 ga. x 1-1/4” 50 29
SHORT PIPE STRAP SER W670 W670112 1-1/4” 3-5/8” 1-5/8” 11/16” 4-5/8” 11 ga. x 1-1/4” 25 33
SHORT PIPE STRAP SER W670 W670114 1-1/2” 4” 2” 13/16” 5” 11 ga. x 1-1/4” 25 35
SHORT PIPE STRAP SER W670 W670120 2” 4-1/2” 2-1/4” 15/16” 5-1/2” 11 ga. x 1-1/4” 25 41

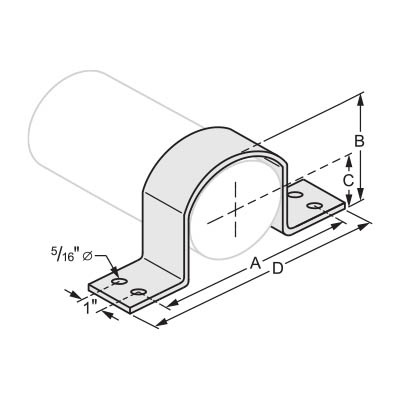

SHORT PIPE STRAP – SERIES W671

CATEGORY PART # PIPE SIZE SIZE A SIZE B SIZE C SIZE D MATERIAL CARTON QTY LBS PER 100PCS
SHORT PIPE STRAP SER W671 W671124 2-1/2” 5” 2-7/8” 1-1/8” 6” 3 ga. x 1-1/4” 25 89
SHORT PIPE STRAP SER W671 W671130 3” 5-5/8” 3-1/2” 1-1/2” 6-5/8” 3 ga. x 1-1/4” 25 106
SHORT PIPE STRAP SER W671 W671130 3-1/2” 6-1/8” 4” 1-3/4” 7-1/8” 3 ga. x 1-1/4” 25 123
SHORT PIPE STRAP SER W671 W671140 4” 7-1/8” 4-1/2” 2” 8-3/8” 3 ga. x 1-1/2” 25 158
