Pipe and Riser Clamps
Two Bolt Underground Pipe Clamp

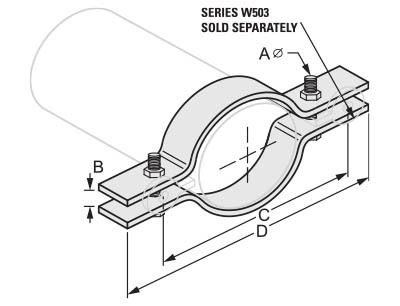

TWO BOLT UNDERGROUND PIPE CLAMP – SERIES W501
| CATEGORY | PART # | PIPE SIZE | MAX PIPE OD | SIZE A | SIZE B | SIZE C | SIZE D | REC TIE ROD SIZE | LBS PER 100PCS |
|---|---|---|---|---|---|---|---|---|---|
| TWO BOLT UNDERGROUND PIPE CLAMP SER W501 | W501130 | 3” | 3.96 | 5/8 x 3 | 1-1/4” | 9” | 11-3/4” | 3/4” | 618 |
| TWO BOLT UNDERGROUND PIPE CLAMP SER W501 | W501140 | 4” | 4.8 | 5/8 x 3 | 1-1/4” | 10-1/4” | 13” | 3/4” | 880 |
| TWO BOLT UNDERGROUND PIPE CLAMP SER W501 | W501160 | 6” | 6.9 | 5/8 x 3 | 1-1/4” | 12” | 14-7/8” | 3/4” | 1050 |
| TWO BOLT UNDERGROUND PIPE CLAMP SER W501 | W501180 | 8” | 9.05 | 5/8 x 3 | 1-1/4” | 14-1/2” | 17-1/4” | 3/4” | 1234 |
| TWO BOLT UNDERGROUND PIPE CLAMP SER W501 | W5011100 | 10” | 11.1 | 5/8 x 3 | 1-1/4” | 16-3/4” | 19-1/2” | 3/4” | 1480 |
| TWO BOLT UNDERGROUND PIPE CLAMP SER W501 | W5011120 | 12” | 13.2 | 5/8 x 3-1/2 | 1-1/4” | 19” | 21-3/4” | 3/4” | 1603 |
| TWO BOLT UNDERGROUND PIPE CLAMP SER W501 | W5011140 | 14” | 15.3 | 7/8 x 4 | 1-3/8” | 23-3/8” | 27-7/8” | 1” | 4437 |
| TWO BOLT UNDERGROUND PIPE CLAMP SER W501 | W5011160 | 16” | 17.4 | 1 x 4-1/2 | 1-1/2” | 25-1/2” | 29-1/8” | 1-1/8” | 6474 |
| TWO BOLT UNDERGROUND PIPE CLAMP SER W501 | W5011180 | 18” | 19.5 | 1-1/4 x 4-1/2 | 1-1/2” | 28” | 32-1/4” | 1-1/4” | 7369 |
| TWO BOLT UNDERGROUND PIPE CLAMP SER W501 | W5011200 | 20” | 21.6 | 1-1/4 x 4-1/2 | 1-5/8” | 29-3/4” | 33-1/4” | 1-3/8” | 8600 |
| TWO BOLT UNDERGROUND PIPE CLAMP SER W501 | W5011240 | 24” | 25.8 | 1-1/2 x 5 | 1-3/4” | 34” | 37-3/4” | 1-1/2” | 11300 |
| TWO BOLT UNDERGROUND PIPE CLAMP SER W501 | W5011300 | 30” | 32 | 1-1/2 x 5-1/2 | 2” | 41-3/8” | 45-1/8” | 1-3/4” | 13678 |
| TWO BOLT UNDERGROUND PIPE CLAMP SER W501 | W5011360 | 36” | 38.3 | 1-1/2 x 5-1/2 | 2-1/2” | 46-1/2” | 50-3/4” | 1-3/4” | 15550 |
Four Bolt Underground Pipe

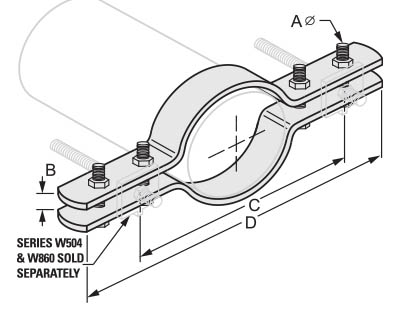

FOUR BOLT UNDERGROUND PIPE – SERIES W502
| CATEGORY | PART # | PIPE SIZE | MAX PIPE OD | BOLT SIZE A | SIZE B | SIZE C | SIZE D | REC TIE ROD SIZE | MAX TEST PRESSURE PSI | FORCE ON CLAMP LBS | LBS PER 100PCS |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FOUR BOLT UNDERGROUND PIPE SER W502 | W502130 | 3” | 3.96 | 5/8 x 3 | 1-1/4” | 9-3/8” | 13-3/8” | 3/4” | 250 | 4550 | 860 |
| FOUR BOLT UNDERGROUND PIPE SER W502 | W502140 | 4” | 4.8 | 5/8 x 3 | 1-1/4” | 10-1/8” | 14-1/2” | 3/4” | 250 | 4550 | 938 |
| FOUR BOLT UNDERGROUND PIPE SER W502 | W502160 | 6” | 6.9 | 5/8 x 3 | 1-1/4” | 12-5/8” | 17” | 3/4” | 250 | 9340 | 1150 |
| FOUR BOLT UNDERGROUND PIPE SER W502 | W502180 | 8” | 9.05 | 5/8 x 3-1/2 | 1-1/4” | 15-3/8” | 19-3/4” | 3/4” | 250 | 16080 | 2054 |
| FOUR BOLT UNDERGROUND PIPE SER W502 | W5021100 | 10” | 11.1 | 3/4 x 3-1/2 | 1-1/4” | 17-1/8” | 22” | 3/4” | 250 | 24180 | 2315 |
| FOUR BOLT UNDERGROUND PIPE SER W502 | W5021120 | 12” | 13.2 | 7/8 x 3-1/2 | 1-1/4” | 20-1/2” | 25-5/8” | 1” | 250 | 34230 | 3585 |
| FOUR BOLT UNDERGROUND PIPE SER W502 | W5021140 | 14” | 15.3 | 7/8 x 4 | 1-3/4” | 23-1/8” | 27-73/4” | 1” | 120 | 22200 | 4678 |
| FOUR BOLT UNDERGROUND PIPE SER W502 | W5021160 | 16” | 17.4 | 1 x 4 | 1-3/4” | 25-7/8” | 31-7/8” | 1-1/8” | 115 | 27760 | 7053 |
| FOUR BOLT UNDERGROUND PIPE SER W502 | W5021180 | 18” | 19.5 | 1-1/4 x 4-1/2 | 1-3/4” | 29” | 35-5/8” | 1-1/4” | 100 | 23900 | 7465 |
| FOUR BOLT UNDERGROUND PIPE SER W502 | W5021200 | 20” | 21.6 | 1-1/4 x 4-1/2 | 1-3/4” | 31-1/8” | 38-1/8” | 1-3/8” | 75 | 27500 | 9865 |
| FOUR BOLT UNDERGROUND PIPE SER W502 | W5021240 | 24” | 25.8 | 1-1/2 x 5 | 1-3/4” | 36-1/2” | 44-1/2” | 1-1/2” | 50 | 26200 | 13550 |
Underground Pipe Clamp Washer

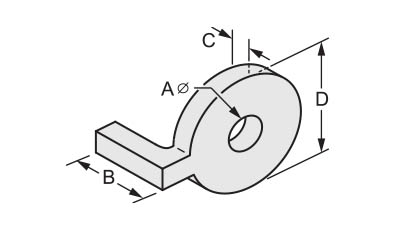

UNDERGROUND PIPE CLAMP WASHER – SERIES W503
| CATEGORY | PART # | TIE ROD SIZE | FOR PIPE SIZES | SIZE A | SIZE B | SIZE C | SIZE D | LBS PER 100PCS |
|---|---|---|---|---|---|---|---|---|
| UNDERGROUND PIPE CLAMP WASHER SER W503 | W503106 | 3/4” | 3 - 12 | 7/8” | 1-3/4” | 5/8” | 2-5/16” | 80 |
| UNDERGROUND PIPE CLAMP WASHER SER W503 | W503110 | 1” | 14 | 1-1/8” | 3” | 1/2” | 3-1/2” | 145 |
| UNDERGROUND PIPE CLAMP WASHER SER W503 | W503111 | 1-1/8” | 16 | 1-1/4” | 3” | 5/8” | 4” | 231 |
| UNDERGROUND PIPE CLAMP WASHER SER W503 | W503112 | 1-1/4” | 18 | 1-3/8” | 3” | 5/8” | 4” | 226 |
| UNDERGROUND PIPE CLAMP WASHER SER W503 | W503113 | 1-3/8” | 20 | 1-1/2” | 3” | 3/4” | 4” | 287 |
| UNDERGROUND PIPE CLAMP WASHER SER W503 | W503114 | 1-1/2” | 24 | 1-5/8” | 3” | 3/4” | 4” | 271 |
| UNDERGROUND PIPE CLAMP WASHER SER W503 | W503116 | 1-3/4” | 30 - 36 | 1-7/8” | 3” | 1” | 4” | 417 |

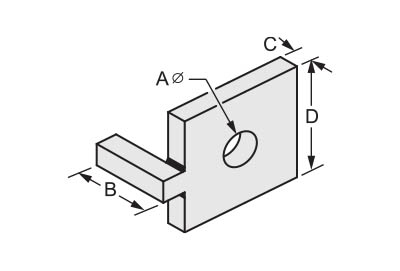

UNDERGROUND PIPE CLAMP WASHER – SERIES W504
| CATEGORY | PART # | TIE ROD SIZE | FOR PIPE SIZES | SIZE A | SIZE B | SIZE C | SIZE D | LBS PER 100PCS |
|---|---|---|---|---|---|---|---|---|
| UNDERGROUND PIPE CLAMP WASHER SER W504 | W504106 | 3/4” | 3 - 12 | 7/8” | 1-3/4” | 5/8” | 2-5/16” | 80 |
| UNDERGROUND PIPE CLAMP WASHER SER W504 | W504110 | 1” | 14 | 1-1/8” | 3” | 1/2” | 3-1/2” | 145 |
| UNDERGROUND PIPE CLAMP WASHER SER W504 | W504111 | 1-1/8” | 16 | 1-1/4” | 3” | 5/8” | 4” | 231 |
| UNDERGROUND PIPE CLAMP WASHER SER W504 | W504112 | 1-1/4” | 18 | 1-3/8” | 3” | 5/8” | 4” | 226 |
| UNDERGROUND PIPE CLAMP WASHER SER W504 | W504113 | 1-3/8” | 20 | 1-1/2” | 3” | 3/4” | 4” | 287 |
| UNDERGROUND PIPE CLAMP WASHER SER W504 | W504114 | 1-1/2” | 24 | 1-5/8” | 3” | 3/4” | 4” | 271 |
| UNDERGROUND PIPE CLAMP WASHER SER W504 | W504116 | 1-3/4” | 30 - 36 | 1-7/8” | 3” | 1” | 4” | 417 |
Iron Pipe Riser Clamps

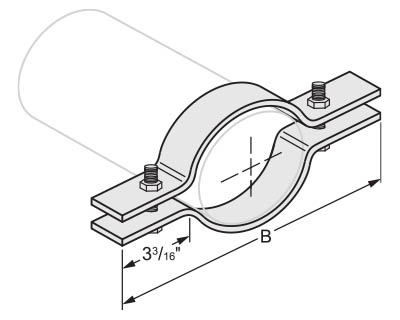

IRON PIPE RISER CLAMP – SERIES W500
| CATEGORY | PART # | PIPE SIZE | SIZE B | MAX REC LOAD LBS | CARTON QTY | LBS PER 100PCS |
|---|---|---|---|---|---|---|
| IRON PIPE RISER CLAMP SER W500 | W500104 | 1/2” | 9-1/2” | 255 | 25 | 121 |
| IRON PIPE RISER CLAMP SER W500 | W500106 | 3/4” | 9-1/2” | 255 | 25 | 130 |
| IRON PIPE RISER CLAMP SER W500 | W500110 | 1” | 9-3/4” | 255 | 25 | 134 |
| IRON PIPE RISER CLAMP SER W500 | W500112 | 1-1/4” | 10-1/4” | 255 | 25 | 142 |
| IRON PIPE RISER CLAMP SER W500 | W500114 | 1-1/2” | 10-3/4” | 255 | 25 | 150 |
| IRON PIPE RISER CLAMP SER W500 | W500120 | 2” | 11-1/2” | 255 | 25 | 160 |
| IRON PIPE RISER CLAMP SER W500 | W500124 | 2-1/2” | 12” | 390 | 25 | 190 |
| IRON PIPE RISER CLAMP SER W500 | W500130 | 3” | 13” | 530 | 20 | 245 |
| IRON PIPE RISER CLAMP SER W500 | W500134 | 3-1/2” | 14-1/2” | 670 | BULK | 260 |
| IRON PIPE RISER CLAMP SER W500 | W500140 | 4” | 15” | 810 | BULK | 310 |
| IRON PIPE RISER CLAMP SER W500 | W500150 | 5” | 16-3/4” | 1160 | BULK | 350 |
| IRON PIPE RISER CLAMP SER W500 | W500160 | 6” | 18-1/2” | 1570 | BULK | 380 |
| IRON PIPE RISER CLAMP SER W500 | W500180 | 8” | 22-1/4” | 2500 | BULK | 726 |
| IRON PIPE RISER CLAMP SER W500 | W5001100 | 10” | 22” | 2500 | BULK | 1140 |
| IRON PIPE RISER CLAMP SER W500 | W5001200 | 12” | 22-1/2” | 2700 | BULK | 1610 |
Copper Tubing Riser Clamp

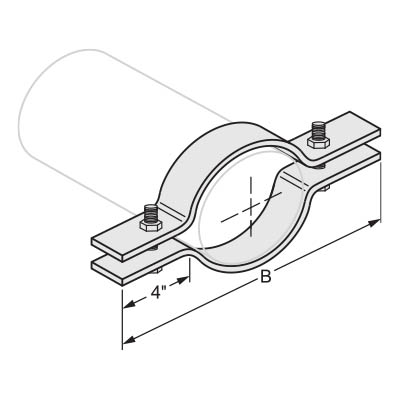

COPPER TUBING RISER CLAMP – SERIES W505
| CATEGORY | PLATED | PART # | PIPE SIZE | SIZE B | MAX REC LOAD LBS | CARTON QTY | LBS PER 100PCS |
|---|---|---|---|---|---|---|---|
| COPPER TUBING RISER CLAMP – SERIES W505 | Copper | W505304 | 1/2” | 9-1/2” | 250 | 25 | 69 |
| COPPER TUBING RISER CLAMP – SERIES W505 | Copper | W505306 | 3/4” | 9-1/2” | 250 | 25 | 72 |
| COPPER TUBING RISER CLAMP – SERIES W505 | Copper | W505310 | 1” | 9-1/2” | 250 | 25 | 72 |
| COPPER TUBING RISER CLAMP – SERIES W505 | Copper | W505312 | 1-1/4” | 9-3/4” | 500 | 25 | 76 |
| COPPER TUBING RISER CLAMP – SERIES W505 | Copper | W505314 | 1-1/2” | 10-1/4” | 500 | 25 | 80 |
| COPPER TUBING RISER CLAMP – SERIES W505 | Copper | W505320 | 2” | 11-3/4” | 500 | 25 | 95 |
| COPPER TUBING RISER CLAMP – SERIES W505 | Copper | W505324 | 2-1/2” | 11-1/2” | 500 | 25 | 135 |
| COPPER TUBING RISER CLAMP – SERIES W505 | Copper | W505330 | 3” | 12-1/2” | 500 | 25 | 170 |
| COPPER TUBING RISER CLAMP – SERIES W505 | Copper | W505334 | 3-1/2” | 13-1/2” | 600 | BULK | 171 |
| COPPER TUBING RISER CLAMP – SERIES W505 | Copper | W505340 | 4” | 14-1/2” | 600 | BULK | 180 |
Single Bolt Pipe Clamp

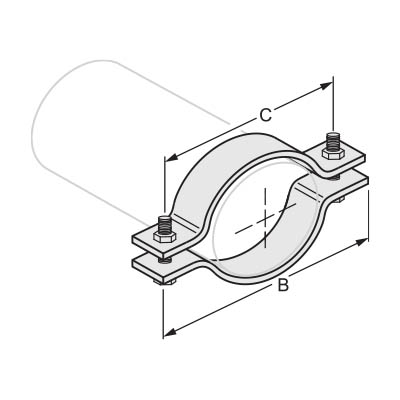

SINGLE BOLT PIPE CLAMP – SERIES W510
| CATEGORY | PART # | PIPE SIZE | BOLT SIZE | SIZE B | SIZE C | MATERIAL | MAX REC LOAD LBS 650 F | MAX REC LOAD LBS 750 F | CARTON QTY | LBS PER 100PCS |
|---|---|---|---|---|---|---|---|---|---|---|
| SINGLE BOLT PIPE CLAMP SER W510 | W510104 | 1/2” | 3/8” | 3-1/8” | 2-1/8” | 11 ga. x 1” | 500 | 445 | 25 | 31 |
| SINGLE BOLT PIPE CLAMP SER W510 | W510106 | 3/4” | 3/8” | 3-1/2” | 2-1/2” | 11 ga. x 1” | 500 | 445 | 25 | 35 |
| SINGLE BOLT PIPE CLAMP SER W510 | W510110 | 1” | 3/8” | 3-3/4” | 2-3/4” | 11 ga. x 1” | 500 | 445 | 25 | 39 |
| SINGLE BOLT PIPE CLAMP SER W510 | W510112 | 1-1/4” | 3/8” | 4-1/4” | 3-1/4” | 11 ga. x 1” | 500 | 445 | 25 | 40 |
| SINGLE BOLT PIPE CLAMP SER W510 | W510114 | 1-1/2” | 3/8” | 4-1/2” | 3-1/2” | 11 ga. x 1” | 800 | 715 | 25 | 45 |
| SINGLE BOLT PIPE CLAMP SER W510 | W510120 | 2” | 1/2” | 5-1/4” | 4-1/4” | 3 ga. x 1” | 1040 | 930 | 25 | 123 |
| SINGLE BOLT PIPE CLAMP SER W510 | W510124 | 2-1/2” | 1/2” | 6-1/4” | 5-1/4” | 3 ga. x 1” | 1040 | 930 | 20 | 133 |
| SINGLE BOLT PIPE CLAMP SER W510 | W510130 | 3” | 1/2” | 7” | 6” | 3 ga. x 1” | 1040 | 930 | 10 | 153 |
| SINGLE BOLT PIPE CLAMP SER W510 | W510134 | 3-1/2” | 1/2” | 7-3/8” | 6-3/8” | 3 ga. x 1” | 1040 | 930 | 10 | 168 |
| SINGLE BOLT PIPE CLAMP SER W510 | W510140 | 4” | 5/8” | 8-1/8” | 6-7/8” | 3 ga. x 1-1/4” | 1040 | 930 | BULK | 186 |
| SINGLE BOLT PIPE CLAMP SER W510 | W510150 | 5” | 5/8” | 9-7/8” | 8-5/8” | 3ga. x 1-1/4” | 1040 | 930 | BULK | 213 |
| SINGLE BOLT PIPE CLAMP SER W510 | W510160 | 6” | 3/4” | 11-1/2” | 9-3/4” | 3/8” x 1-1/2” | 1615 | 1440 | BULK | 506 |
| SINGLE BOLT PIPE CLAMP SER W510 | W510180 | 8” | 3/4” | 14” | 12” | 3/8” x 1-1/2” | 1615 | 1440 | BULK | 608 |
| SINGLE BOLT PIPE CLAMP SER W510 | W5101100 | 10” | 7/8” | 17-1/8” | 15-1/8” | 1/2” x 2” | 2490 | 2220 | BULK | 1281 |
| SINGLE BOLT PIPE CLAMP SER W510 | W5101120 | 12” | 7/8” | 19-3/4” | 17-3/4” | 1/2” x 2” | 2490 | 2220 | BULK | 1308 |
| SINGLE BOLT PIPE CLAMP SER W510 | W5101140 | 14” | 7/8” | 22-5/8” | 19-1/4” | 1/2” x 2” | 2490 | 2220 | BULK | 1670 |
| SINGLE BOLT PIPE CLAMP SER W510 | W5101160 | 16” | 7/8” | 25-1/4” | 19-7/8” | 1/2” x 2-1/2” | 2490 | 2220 | BULK | 2319 |
| SINGLE BOLT PIPE CLAMP SER W510 | W5101180 | 18” | 1” | 25-3/4” | 21-3/4” | 5/8” x 2-1/2” | 3060 | 2730 | BULK | 3312 |
| SINGLE BOLT PIPE CLAMP SER W510 | W5101200 | 20” | 1-1/8” | 28-5/8” | 25-1/8” | 5/8” x 2-1/2” | 3060 | 2730 | BULK | 3866 |
| SINGLE BOLT PIPE CLAMP SER W510 | W5101240 | 24” | 1-1/4” | 34-1/2” | 31” | 5/8” x 3” | 3060 | 2730 | BULK | 5227 |
| SINGLE BOLT PIPE CLAMP SER W510 | W5101300 | 30” | 1-1/2” | 41-3/4” | 37-1/4” | 3/4” x 4” | 4000 | 3520 | BULK | 10513 |
Iron Pipe Riser Clamp

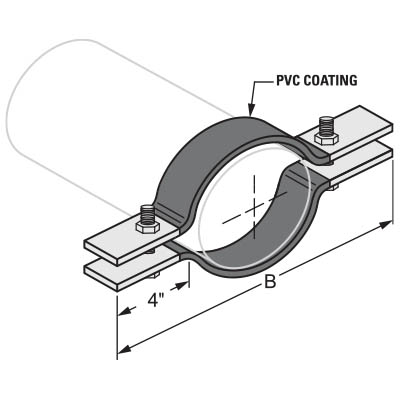

IRON PIPE RISER CLAMP – SERIES W530
| CATEGORY | COATED | PART # | PIPE SIZE | SIZE B | MAX REC LOAD LBS | CARTON QTY | LBS PER 100PCS |
|---|---|---|---|---|---|---|---|
| IRON PIPE RISER CLAMP SER W530 | PVC | W530504 | 1/2” | 9-1/2” | 255 | 25 | 121 |
| IRON PIPE RISER CLAMP SER W530 | PVC | W530506 | 3/4” | 9-1/2” | 255 | 25 | 130 |
| IRON PIPE RISER CLAMP SER W530 | PVC | W530510 | 1” | 9-3/4” | 255 | 25 | 134 |
| IRON PIPE RISER CLAMP SER W530 | PVC | W530512 | 1-1/4” | 10-1/4” | 255 | 25 | 142 |
| IRON PIPE RISER CLAMP SER W530 | PVC | W530514 | 1-1/2” | 10-3/4” | 255 | 25 | 150 |
| IRON PIPE RISER CLAMP SER W530 | PVC | W530520 | 2” | 11-1/2” | 255 | 25 | 160 |
| IRON PIPE RISER CLAMP SER W530 | PVC | W530524 | 2-1/2” | 12” | 390 | 25 | 190 |
| IRON PIPE RISER CLAMP SER W530 | PVC | W530530 | 3” | 13” | 530 | 20 | 245 |
| IRON PIPE RISER CLAMP SER W530 | PVC | W530534 | 3-1/2” | 14-1/2” | 670 | BULK | 260 |
| IRON PIPE RISER CLAMP SER W530 | PVC | W530540 | 4” | 15” | 810 | BULK | 310 |
| IRON PIPE RISER CLAMP SER W530 | PVC | W530550 | 5” | 16-3/4” | 1160 | BULK | 350 |
| IRON PIPE RISER CLAMP SER W530 | PVC | W530560 | 6” | 18-1/2” | 1570 | BULK | 380 |
| IRON PIPE RISER CLAMP SER W530 | PVC | W530580 | 8” | 22-1/4” | 2500 | BULK | 726 |
| IRON PIPE RISER CLAMP SER W530 | PVC | W5305100 | 10” | 22” | 2500 | BULK | 1140 |
| IRON PIPE RISER CLAMP SER W530 | PVC | W5305200 | 12” | 22-1/2” | 2700 | BULK | 1610 |
Heavy Duty Pipe Clamp

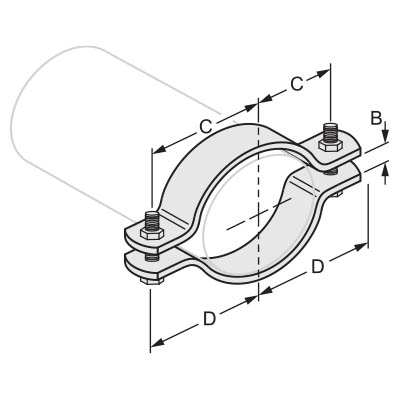

HEAVY DUTY PIPE CLAMP – SERIES W511
| CATEGORY | PART # | PIPE SIZE | BOLT SIZE | SIZE B | SIZE C | SIZE D | MAX REC LOAD LBS 650 F | MAX REC LOAD LBS 750 F | LBS PER 100PCS |
|---|---|---|---|---|---|---|---|---|---|
| HEAVY DUTY PIPE CLAMP SER W511 | W511130 | 3” | 3/4” | 1” | 3” | 4-1/8” | 3370 | 3005 | 496 |
| HEAVY DUTY PIPE CLAMP SER W511 | W511134 | 3-1/2” | 3/4” | 1” | 3-1/4” | 4-3/8” | 3370 | 3005 | 536 |
| HEAVY DUTY PIPE CLAMP SER W511 | W511140 | 4” | 7/8” | 1” | 3-11/16” | 4-15/16” | 3515 | 3135 | 574 |
| HEAVY DUTY PIPE CLAMP SER W511 | W511150 | 5” | 7/8” | 1” | 4-5/16” | 5-9/16” | 3515 | 3135 | 713 |
| HEAVY DUTY PIPE CLAMP SER W511 | W511160 | 6” | 1” | 1-1/8” | 5-3/16” | 6-11/16” | 4865 | 4340 | 1348 |
| HEAVY DUTY PIPE CLAMP SER W511 | W511180 | 8” | 1” | 1-1/8” | 6-1/4” | 8-1/4” | 4865 | 4340 | 1578 |
| HEAVY DUTY PIPE CLAMP SER W511 | W5111100 | 10” | 1-1/4” | 1-1/4” | 7-7/8” | 9-7/8” | 6010 | 5360 | 2420 |
| HEAVY DUTY PIPE CLAMP SER W511 | W5111120 | 12” | 1-1/2” | 1-5/8” | 9-1/2” | 11-7/8” | 8675 | 7740 | 4154 |
| HEAVY DUTY PIPE CLAMP SER W511 | W5111140 | 14” | 1-1/2” | 1-5/8” | 10-1/8” | 12-1/4” | 9120 | 8135 | 5325 |
| HEAVY DUTY PIPE CLAMP SER W511 | W5111160 | 16” | 1-1/2” | 1-5/8” | 11-3/16” | 13-15/16” | 9120 | 8135 | 5635 |
| HEAVY DUTY PIPE CLAMP SER W511 | W5111180 | 18” | 1-1/2” | 1-5/8” | 12-3/16” | 15-1/4” | 9150 | 8160 | 7012 |
| HEAVY DUTY PIPE CLAMP SER W511 | W5111200 | 20” | 1-1/2” | 1-5/8” | 13-5/16” | 15-13/16” | 9150 | 8160 | 7468 |
| HEAVY DUTY PIPE CLAMP SER W511 | W5111240 | 24” | 1-1/2” | 1-3/4” | 15-3/8” | 17-3/4” | 9200 | 8205 | 12629 |
Double Bolt Pipe Clamp

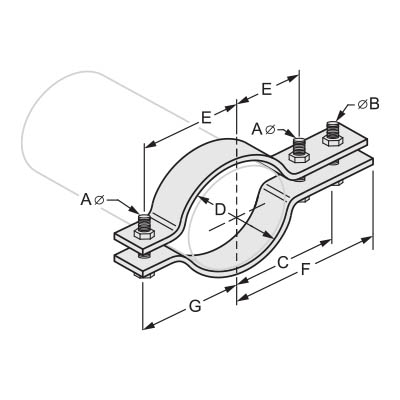

DOUBLE BOLT PIPE CLAMP – SERIES W520
| CATEGORY | PART # | PIPE SIZE | BOLT SIZE A | BOLT SIZE B | SIZE C | SIZE D | SIZE E | SIZE F | SIZE G | MAX REC LOAD LBS 650 F | MAX REC LOAD LBS 650 F | LBS PER 100PCS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DOUBLE BOLT PIPE CLAMP SER W520 | W520106 | 3/4” | 3/8” | 3/8” | 2-3/4” | 1” | 1-3/8” | 3-1/2” | 2” | 950 | 850 | 83 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W520110 | 1” | 3/8” | 3/8” | 2-7/8” | 1/1/4” | 1-3/8” | 3-1/2” | 2” | 950 | 850 | 102 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W520112 | 1-1/4” | 3/8” | 3/8” | 3” | 1-5/8” | 1-1/2” | 3-1/2” | 2” | 950 | 850 | 102 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W520114 | 1-1/2” | 1/2” | 5/8” | 4-5/8” | 2” | 2” | 5-1/4” | 2-5/8” | 1545 | 1380 | 230 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W520120 | 2” | 1/2” | 5/8” | 4-3/4” | 2-3/8” | 2-1/8” | 5-3/8” | 2-3/4” | 1545 | 1380 | 260 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W520124 | 2-1/2” | 1/2” | 5/8” | 5” | 2-7/8” | 2-1/2” | 5-5/8” | 3” | 1545 | 1380 | 271 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W520130 | 3” | 1/2” | 5/8” | 5-3/8” | 3-1/2” | 2-3/4” | 6” | 3-3/8” | 1545 | 1380 | 303 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W520134 | 3-1/2” | 1/2” | 5/8” | 5-5/8” | 4” | 3” | 6-1/4” | 3-5/8” | 1545 | 1380 | 328 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W520140 | 4” | 5/8” | 3/4” | 7” | 4-1/2” | 4” | 8” | 5” | 2500 | 2230 | 667 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W520150 | 5” | 5/8” | 3/4” | 7-5/8” | 5-1/2” | 4-5/8” | 8-5/8” | 5-5/8” | 2500 | 2230 | 705 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W510160 | 6” | 3/4” | 7/8” | 8-5/8” | 6-5/8” | 5-1/8” | 9-7/8” | 6-3/8” | 2865 | 2555 | 1145 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W520180 | 8” | 3/4” | 7/8” | 9-7/8” | 8-5/8” | 6-3/8” | 11-1/8” | 7-5/8” | 2865 | 2555 | 1345 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W5201100 | 10” | 7/8” | 1” | 11-1/8” | 10-3/4” | 7-5/8” | 12-3/8” | 8-7/8” | 3240 | 2890 | 1980 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W5201120 | 12” | 7/8” | 1” | 12-1/2” | 12-3/4” | 9” | 13-3/4” | 10-1/4” | 3240 | 2890 | 2225 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W5201140 | 14” | 7/8” | 1-1/4” | 13-1/2” | 14” | 10” | 15” | 11-1/2” | 4300 | 3835 | 3768 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W5201160 | 16” | 7/8” | 1-1/4” | 14-1/4” | 16” | 10-5/8” | 15-3/4” | 12-1/8” | 4300 | 3835 | 4140 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W5201180 | 18” | 1” | 1-1/4” | 15-1/2” | 18” | 11-3/4” | 16-5/8” | 13-1/4” | 4300 | 3835 | 4487 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W5201200 | 20” | 1-1/4” | 1-3/8” | 16-1/2” | 20” | 13” | 18” | 14-1/2” | 5490 | 4900 | 5725 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W5201240 | 24” | 1-1/4” | 1-3/8” | 18-3/4” | 24” | 15-1/4” | 20-1/4” | 16-3/4” | 4500 | 4015 | 6590 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W5201300 | 30” | 1-3/8” | 1-3/8” | 23” | 30” | 19” | 26” | 22” | 8000 | - | 19502 |
| DOUBLE BOLT PIPE CLAMP SER W520 | W5201360 | 36” | 1-3/8” | 1-3/4” | 28-7/8” | 36” | 22-1/8” | 32-3/8” | 22-5/8” | 8000 | - | 23488 |

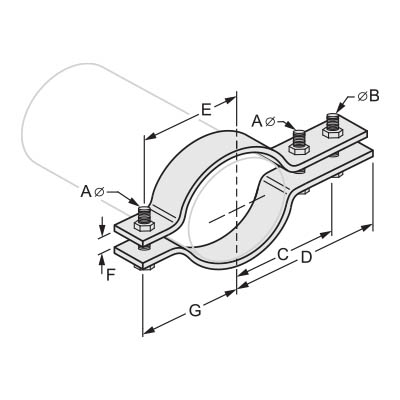

DOUBLE BOLT PIPE CLAMP – SERIES W521
| CATEGORY | PART # | PIPE SIZE | BOLT SIZE A | BOLT SIZE B | SIZE C | SIZE D | SIZE E | SIZE F | SIZE G | MAX REC LOAD LBS 650 F | MAX REC LOAD LBS 750 F | LBS PER 100PCS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DOUBLE BOLT PIPE CLAMP SER W521 | W521106 | 3/4” | 3/8” | 3/8” | 2-13/16” | 3-7/16” | 1-3/8” | 5/8” | 2” | 950 | 850 | 83 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W521110 | 1” | 3/8” | 3/8” | 2-7/8” | 3-1/2” | 1-3/8” | 5/8” | 2” | 950 | 850 | 102 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W521112 | 1-1/4” | 3/8” | 3/8” | 2-15/16” | 3-9/16” | 1-7/16” | 5/8” | 2-1/16” | 950 | 850 | 107 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W521114 | 1-1/2” | 1/2” | 5/8” | 4-5/8” | 5-1/4” | 2” | 1” | 2-5/8” | 1545 | 1380 | 230 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W521120 | 2” | 1/2” | 5/8” | 4-3/4” | 5-3/8” | 2-1/8” | 1” | 2-3/4” | 1545 | 1380 | 260 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W521124 | 2-1/2” | 1/2” | 5/8” | 5-1/16” | 5-11/16” | 2-7/16” | 1” | 3-1/16” | 1545 | 1380 | 271 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W521130 | 3” | 1/2” | 5/8” | 5-3/8” | 6” | 2-3/4” | 1” | 3-3/8” | 1545 | 1380 | 303 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W521134 | 3-1/2” | 1/2” | 5/8” | 5-11/16” | 6-5/16” | 3-1/16” | 1” | 3-11/16” | 1545 | 1380 | 328 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W521140 | 4” | 5/8” | 3/4” | 7-1/16” | 8-1/16” | 4-1/16” | 1” | 5-1/16” | 2500 | 2230 | 667 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W521150 | 5” | 5/8” | 3/4” | 7-5/8” | 8-5/8” | 4-5/8” | 1” | 5-5/8” | 2500 | 2230 | 705 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W521160 | 6” | 3/4” | 7/8” | 8-5/8” | 9-7/8” | 5-1/8” | 1-1/2” | 6-3/8” | 2865 | 2555 | 1145 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W521180 | 8” | 3/4” | 7/8” | 9-7/8” | 11-1/8” | 6-3/8” | 1-1/2” | 7-5/8” | 2865 | 2555 | 1345 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W5211100 | 10” | 7/8” | 1” | 11-1/8” | 12-3/8” | 7-5/8” | 1-1/2” | 8-7/8” | 3240 | 2890 | 1980 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W5211120 | 12” | 7/8” | 1” | 12-1/2” | 13-3/4” | 9” | 1-1/2” | 10-1/4” | 3240 | 2890 | 2225 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W5211140 | 14” | 7/8” | 1-1/4” | 13-9/16” | 15-1/16” | 9-15/16” | 1-1/2” | 11-7/16” | 4300 | 3835 | 3768 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W5211160 | 16” | 7/8” | 1-1/4” | 14-5/16” | 15-13/16” | 10-11/16” | 1-1/2” | 12-3/16” | 4300 | 3835 | 4140 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W5211180 | 18” | 1” | 1-1/4” | 15-7/16” | 16-11/16” | 11-13/16” | 1-1/2” | 13-5/16” | 4300 | 3835 | 4487 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W5211200 | 20” | 1-1/8” | 1-3/8” | 16-1/2” | 18” | 13” | 2” | 14-1/2” | 4500 | 4015 | 5725 |
| DOUBLE BOLT PIPE CLAMP SER W521 | W5211240 | 24” | 1-1/4” | 1-3/8” | 18-3/4” | 20-1/4” | 15-1/4” | 2” | 16-3/4” | 5490 | 4900 | 6590 |
Offset Pipe Clamp

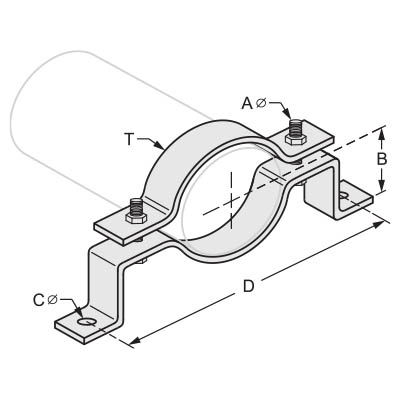

OFFSET PIPE CLAMP – SERIES W540
| CATEGORY | PART # | PIPE SIZE | SIZE A | SIZE B | SIZE C | SIZE D | THICKNESS T | MAX REC LOAD LBS | CARTON QTY | LBS PER 100PCS |
|---|---|---|---|---|---|---|---|---|---|---|
| OFFSET PIPE CLAMP SER W540 | W540106 | 3/4” | 3/8” | 2-1/2” | 7/16” | 5-7/8” | 7 ga. x 1-1/4” | 190 | 100 | 87 |
| OFFSET PIPE CLAMP SER W540 | W540110 | 1” | 3/8” | 2-5/8” | 7/16” | 6” | 7 ga. x 1-1/4” | 190 | 100 | 92 |
| OFFSET PIPE CLAMP SER W540 | W540112 | 1-1/4” | 3/8” | 2-3/4” | 7/16” | 6-1/2” | 7 ga. x 1-1/4” | 190 | 100 | 115 |
| OFFSET PIPE CLAMP SER W540 | W540114 | 1-1/2” | 3/8” | 3” | 7/16” | 6-1/2” | 7 ga. x 1-1/4” | 190 | 100 | 124 |
| OFFSET PIPE CLAMP SER W540 | W540120 | 2” | 3/8” | 3-1/4” | 7/16” | 7-5/8” | 3 ga. x 1-1/4” | 420 | 100 | 156 |
| OFFSET PIPE CLAMP SER W540 | W540124 | 2-1/2” | 3/8” | 3-1/2” | 7/16” | 8-3/8” | 3 ga. x 1-1/4” | 420 | 100 | 178 |
| OFFSET PIPE CLAMP SER W540 | W540130 | 3” | 3/8” | 3-1/2” | 7/16” | 8-3/4” | 3 ga. x 1-1/4” | 420 | 100 | 198 |
| OFFSET PIPE CLAMP SER W540 | W540134 | 3-1/2” | 1/2” | 4” | 7/16” | 9-3/4” | 3 ga. x 1-1/4” | 420 | 100 | 245 |
| OFFSET PIPE CLAMP SER W540 | W540140 | 4” | 1/2” | 4-1/4” | 9/16” | 11” | 3 ga. x 1-1/4” | 610 | 50 | 300 |
| OFFSET PIPE CLAMP SER W540 | W540150 | 5” | 1/2” | 4-3/4” | 9/16” | 12-1/8” | 3 ga. x 1-1/4” | 610 | 25 | 350 |
| OFFSET PIPE CLAMP SER W540 | W540160 | 6” | 1/2” | 5-1/4” | 9/16” | 14-3/8” | 3/8. x 1-1/2” | 870 | 25 | 650 |
| OFFSET PIPE CLAMP SER W540 | W540180 | 8” | 1/2” | 6-1/4” | 9/16” | 16-1/2” | 3/8. x 1-1/2” | 870 | 25 | 790 |
| OFFSET PIPE CLAMP SER W540 | W5401100 | 10” | 5/8” | 7-3/4” | 11/16” | 19-1/8” | 3/8. x 2” | 870 | 25 | 1270 |
| OFFSET PIPE CLAMP SER W540 | W5401120 | 12” | 5/8” | 8-7/8” | 11/16” | 25-1/2” | 3/8. x 2” | 870 | 20 | 2120 |
Extended Pipe Clamps

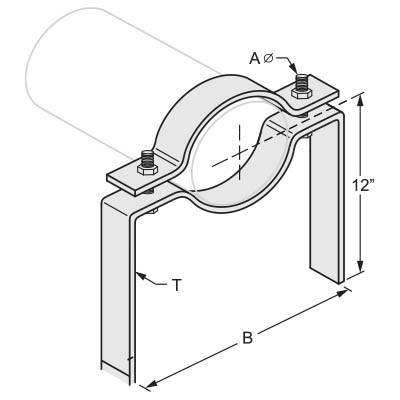

EXTENDED PIPE CLAMP – SERIES W550
| CATEGORY | PART # | PIPE SIZE | SIZE A | SIZE B | THICKENESS T | LBS PER 100PCS |
|---|---|---|---|---|---|---|
| EXTENDED PIPE CLAMP SER W550 | W550106 | 3/4” | 3/8” | 4-1/8” | 7 ga. x 1-1/4” | 182 |
| EXTENDED PIPE CLAMP SER W550 | W550110 | 1” | 3/8” | 4-1/4” | 7 ga. x 1-1/4” | 225 |
| EXTENDED PIPE CLAMP SER W550 | W550112 | 1-1/4” | 3/8” | 4-3/4” | 7 ga. x 1-1/4” | 239 |
| EXTENDED PIPE CLAMP SER W550 | W550114 | 1-1/2” | 3/8” | 5” | 7 ga. x 1-1/4” | 244 |
| EXTENDED PIPE CLAMP SER W550 | W550120 | 2” | 3/8” | 6” | 3 ga. x 1-1/4” | 319 |
| EXTENDED PIPE CLAMP SER W550 | W550124 | 2-1/2” | 3/8” | 6-1/2” | 3 ga. x 1-1/4” | 334 |
| EXTENDED PIPE CLAMP SER W550 | W550130 | 3” | 3/8” | 7” | 3 ga. x 1-1/4” | 354 |
| EXTENDED PIPE CLAMP SER W550 | W550140 | 4” | 1/2” | 9” | 3 ga. x 1-1/2” | 475 |
| EXTENDED PIPE CLAMP SER W550 | W550150 | 5” | 1/2” | 10-1/8” | 3 ga. x 1-1/2” | 475 |
| EXTENDED PIPE CLAMP SER W550 | W550160 | 6” | 1/2” | 12” | 3ga. x 2” | 383 |
| EXTENDED PIPE CLAMP SER W550 | W550180 | 8” | 1/2” | 14-1/8” | 3ga. x 2” | 925 |
Insulation Protection Shield

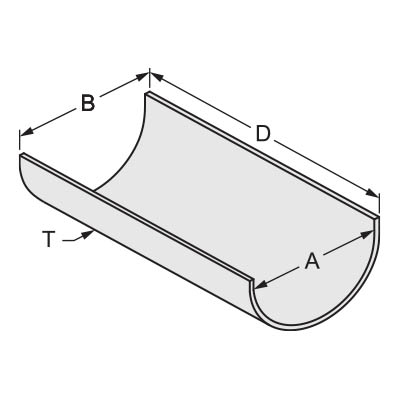

INSULATION PROTECTION SHIELD – SERIES W560
| CATEGORY | PART # | SHIELD SIZE | SHIELD ID SIZE A | MAX OD OF INSUL SIZE | SIZE D | THICKNESS T | LBS PER 100PCS |
|---|---|---|---|---|---|---|---|
| INSULATION PROTECTION SHIELD SER W560 | W560200 | 0 | 1-7/8” | 1.9” | 12” | 18 ga. | 45 |
| INSULATION PROTECTION SHIELD SER W560 | W560201 | 1 | 2-3/8” | 2.4” | 12” | 18 ga. | 66 |
| INSULATION PROTECTION SHIELD SER W560 | W560202 | 2 | 2-7/8” | 2.9” | 12” | 18 ga. | 78 |
| INSULATION PROTECTION SHIELD SER W560 | W560203 | 3 | 3-1/2” | 3.5” | 12” | 18 ga. | 98 |
| INSULATION PROTECTION SHIELD SER W560 | W560204 | 4 | 4” | 4.0” | 12” | 18 ga. | 109 |
| INSULATION PROTECTION SHIELD SER W560 | W560205 | 5 | 4-1/2” | 4.5” | 12” | 18 ga. | 122 |
| INSULATION PROTECTION SHIELD SER W560 | W560206 | 6 | 5” | 5.0” | 12” | 18 ga. | 145 |
| INSULATION PROTECTION SHIELD SER W560 | W560207 | 7 | 5-1/2” | 5.6” | 12” | 18 ga. | 155 |
| INSULATION PROTECTION SHIELD SER W560 | W560208 | 8 | 6-5/8” | 6.7” | 12” | 16 ga. | 172 |
| INSULATION PROTECTION SHIELD SER W560 | W560209 | 9 | 7-5/8” | 7.7” | 12” | 16 ga. | 188 |
| INSULATION PROTECTION SHIELD SER W560 | W560210 | 10 | 8-5/8” | 8.7” | 12” | 16 ga. | 210 |
| INSULATION PROTECTION SHIELD SER W560 | W560211 | 11 | 7-5/8” | 7.7” | 18” | 16 ga. | 221 |
| INSULATION PROTECTION SHIELD SER W560 | W560212 | 12 | 8-5/8” | 8.7” | 18” | 16 ga. | 232 |
| INSULATION PROTECTION SHIELD SER W560 | W560213 | 13 | 9-5/8” | 9.7” | 18” | 16 ga. | 247 |
| INSULATION PROTECTION SHIELD SER W560 | W560214 | 14 | 10-3/4” | 10.8” | 18” | 16 ga. | 288 |
| INSULATION PROTECTION SHIELD SER W560 | W560215 | 15 | 11-3/4” | 11.8” | 24” | 14 ga. | 305 |
| INSULATION PROTECTION SHIELD SER W560 | W560216 | 16 | 12-3/4” | 12.8” | 24” | 14 ga. | 320 |
| INSULATION PROTECTION SHIELD SER W560 | W560217 | 17 | 14” | 14.0” | 24” | 14 ga. | 390 |
| INSULATION PROTECTION SHIELD SER W560 | W560218 | 18 | 15” | 15.0” | 24” | 14 ga. | 410 |
| INSULATION PROTECTION SHIELD SER W560 | W560219 | 19 | 16” | 16.0” | 24” | 14 ga. | 450 |
| INSULATION PROTECTION SHIELD SER W560 | W560220 | 20 | 17” | 17.0” | 24” | 14 ga. | 505 |
Self Centering Insulation Shield

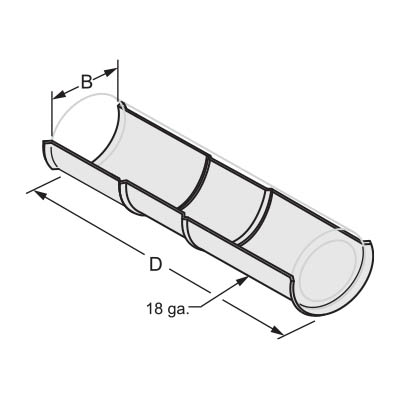

SELF CENTERING INSULATION SHIELD – SERIES W561
| CATEGORY | PART # | INSIDE DIA OF SHIELD B | SHIELD LENGTH D | HANGER SIZE | RIB SPACING | LBS PER INCH |
|---|---|---|---|---|---|---|
| SELF CENTERING INSULATION SHIELD SER W561 | W561223 | 2-3/8” | 8” | 2” | 1-1/4” | 0.35 |
| SELF CENTERING INSULATION SHIELD SER W561 | W561225 | 2-5/8” | 8” | 2-1/2” | 1-1/4” | 0.37 |
| SELF CENTERING INSULATION SHIELD SER W561 | W561227 | 2-7/8” | 8” | 2-1/2” | 1-1/4” | 0.42 |
| SELF CENTERING INSULATION SHIELD SER W561 | W561234 | 3-1/2” | 8” | 3” | 1-1/4” | 0.56 |
| SELF CENTERING INSULATION SHIELD SER W561 | W561240 | 4” | 8” | 3-1/2” | 1-1/4” | 0.63 |
| SELF CENTERING INSULATION SHIELD SER W561 | W561244 | 4-1/2” | 8” | 4” | 1-1/4” | 0.72 |
| SELF CENTERING INSULATION SHIELD SER W561 | W561250 | 5” | 8” | 5” | 1-1/4” | 0.82 |
| SELF CENTERING INSULATION SHIELD SER W561 | W561255 | 5-5/8” | 8” | 5” | 1-1/4” | 0.92 |
| SELF CENTERING INSULATION SHIELD SER W561 | W561260 | 6” | 8” | 6” | 2” | 0.98 |
| SELF CENTERING INSULATION SHIELD SER W561 | W561265 | 6-5/8” | 8” | 6” | 2” | 1.08 |
| SELF CENTERING INSULATION SHIELD SER W561 | W561275 | 7-5/8” | 12” | 8” | 2” | 2.16 |
| SELF CENTERING INSULATION SHIELD SER W561 | W561285 | 8-5/8” | 12” | 8” | 2” | 2.43 |
| SELF CENTERING INSULATION SHIELD SER W561 | W561295 | 9-5/8” | 12” | 10” | 2” | 2.73 |
| SELF CENTERING INSULATION SHIELD SER W561 | W5612106 | 10-3/4” | 12” | 10” | 2” | 3.06 |
| SELF CENTERING INSULATION SHIELD SER W561 | W5612116 | 11-3/4” | 12” | 12” | 2-1/4” | 3.34 |
| SELF CENTERING INSULATION SHIELD SER W561 | W5612126 | 12-3/4” | 12” | 12” | 2-1/4” | 3.6 |
| SELF CENTERING INSULATION SHIELD SER W561 | W5612140 | 14” | 12” | 14” | 2-1/4” | 3.96 |
| SELF CENTERING INSULATION SHIELD SER W561 | W5612150 | 15” | 12” | 16” | 2-3/4” | 4.23 |
| SELF CENTERING INSULATION SHIELD SER W561 | W5612160 | 16” | 12” | 16” | 2-3/4” | 2.35 |
| SELF CENTERING INSULATION SHIELD SER W561 | W5612140 | 17” | 12” | 18” | 2-3/4” | 2.8 |
| SELF CENTERING INSULATION SHIELD SER W561 | W5612180 | 18” | 12” | 18” | 2-3/4” | 5.08 |
| SELF CENTERING INSULATION SHIELD SER W561 | W5612190 | 19” | 12” | 20” | 3-1/4” | 5.36 |
| SELF CENTERING INSULATION SHIELD SER W561 | W5612200 | 20” | 12” | 20” | 3-1/4” | 5.56 |
| SELF CENTERING INSULATION SHIELD SER W561 | W5612210 | 21” | 12” | 24” | 3-1/4” | 5.9 |
Plastic Pipe Support Trough

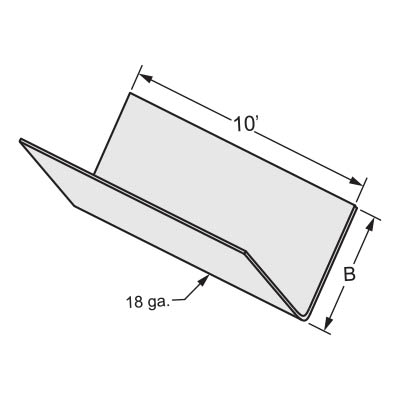

PLASTIC PIPE SUPPORT TROUGH – SERIES W562
| CATEGORY | PART # | SIZE B | PIPE SIZE | MAX REC LOAD LBS | LBS PER PCS |
|---|---|---|---|---|---|
| PLASTIC PIPE SUPPORT TROUGH SER W562 | W562214 | 1-1/2” | 1/2” - 2” | 150 | 5.4 |
| PLASTIC PIPE SUPPORT TROUGH SER W562 | W562230 | 3” | 2-1/2 - 4” | 150 | 10.8 |
Plastic Pipe Support Trough

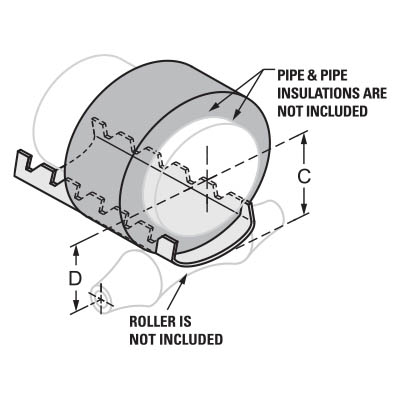

PIPE COVERING PROTECTION SADDLE – SERIES W570
| CATEGORY | PART # | FIGURE NO | PIPE SIZE | ACTUAL THICKNESS OF COVERING | HANGER ROLLER SERIES | HANGER ROLLER SIZE | HANGER ROLLER SERIES | HANGER ROLLER SIZE | CTR LINE OF PIPE TO CTR LINE OF SADDLE C | CTR LINE OF PIPE TO CTR LINE OF ROLLER D | MAX REC LOAD LBS | LBS PER 100PCS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PIPE COVERING PROTECTION SADDLE SER W570 | W570101 | 1 | 3/4 | 7/8 | 630 | 2 | 610 | 2-1/2 | 1-9/16 | 1-15/16 | 1200 | 93 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570102 | 2 | 3/4 | 1-7/16 | 630 | 3 | 610 | 3-1/2 | 2-1/8 | 2-5/8 | 1200 | 174 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570103 | 3 | 3/4 | 2-1/16 | 630 | 4 | 610 | 5 | 2-3/4 | 3-3/8 | 1200 | 260 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570104 | 4 | 1 | 1-1/16 | 630 | 2-1/2 | 610 | 3 | 1-13/16 | 2-1/4 | 1200 | 93 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570105 | 5 | 1 | 1-9/16 | 630 | 3 | 610 | 4 | 2-7/16 | 2-15/16 | 1200 | 174 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570106 | 6 | 1 | 2-1/8 | 630 | 4 | 610 | 5 | 2-7/8 | 3-1/2 | 1200 | 260 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570107 | 7 | 1-1/4 | 7/8 | 630 | 2-1/2 | 610 | 3 | 1-15/16 | 2-1/2 | 1200 | 132 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570108 | 8 | 1-1/4 | 1-5/8 | 630 | 3-1/2 | 610 | 5 | 2-9/16 | 3-1/8 | 1200 | 182 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570109 | 9 | 1-1/4 | 2-1/16 | 631 | 5 | 611 | 5 | 3-1/16 | 3-11/16 | 1200 | 260 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570110 | 10 | 1-1/2 | 1 | 632 | 3 | 612 | 3-1/2 | 2-1/8 | 2-5/8 | 1200 | 132 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570111 | 11 | 1-1/2 | 1-1/2 | 633 | 3-1/2 | 613 | 5 | 2-11/16 | 3-1/4 | 1200 | 182 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570112 | 12 | 1-1/2 | 2-5/16 | 634 | 5 | 614 | 6 | 3-7/16 | 4-1/8 | 1800 | 275 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570113 | 13 | 1-1/2 | 2-13/16 | 635 | 7 | 615 | 7 | 3-13/16 | 4-5/8 | 1800 | 301 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570114 | 14 | 2 | 1-1/16 | 636 | 3-1/2 | 616 | 4 | 2-7/16 | 3 | 1200 | 134 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570115 | 15 | 2 | 1-9/16 | 637 | 4 | 617 | 5 | 2-7/8 | 3-1/2 | 1200 | 198 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570216 | 16 | 2 | 2-1/8 | 638 | 5 | 618 | 6 | 3-11/16 | 4-3/8 | 1800 | 280 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570117 | 17 | 2 | 2-5/8 | 639 | 7 | 619 | 7 | 3-15/16 | 4-3/4 | 1800 | 318 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570118 | 18 | 2 | 3-1/8 | 640 | 8 | 620 | 8 | 4-11/16 | 5-1/2 | 1800 | 397 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570119 | 19 | 2-1/2 | 1-1/16 | 641 | 3-1/2 | 621 | 5 | 2-11/16 | 3-1/4 | 1200 | 134 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570120 | 20 | 2-1/2 | 1-7/8 | 642 | 5 | 622 | 6 | 3-3/4 | 4-1/8 | 1800 | 198 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570121 | 21 | 2-1/2 | 2-5/16 | 643 | 6 | 623 | 7 | 3-15/16 | 4-5/8 | 1800 | 280 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570122 | 22 | 2-1/2 | 2-7/8 | 644 | 7 | 624 | 7 | 4-7/16 | 5-1/4 | 1800 | 320 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570123 | 23 | 2-1/2 | 3-3/8 | 645 | 8 | 625 | 10 | 4-15/16 | 5-3/4 | 1800 | 398 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570124 | 24 | 3 | 1 | 646 | 4 | 626 | 5 | 2-15/16 | 3-1/2 | 1200 | 148 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570125 | 25 | 3 | 1-9/16 | 647 | 5 | 627 | 6 | 3-1/2 | 4-3/16 | 1800 | 208 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570126 | 26 | 3 | 2-1/16 | 648 | 7 | 628 | 7 | 4-1/8 | 4-7/8 | 1800 | 290 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570127 | 27 | 3 | 2-9/16 | 649 | 8 | 629 | 8 | 4-11/16 | 5-3/8 | 1800 | 301 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570128 | 28 | 3 | 3-1/16 | 650 | 10 | 630 | 10 | 5 | 5-15/16 | 1800 | 449 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570129 | 29 | 3-1/2 | 1-1/4 | 651 | 5 | 631 | 6 | 3-7/16 | 4 | 1200 | 148 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570130 | 30 | 3-1/2 | 1-13/16 | 652 | 7 | 632 | 7 | 4 | 4-11/16 | 1800 | 208 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570131 | 31 | 3-1/2 | 2-1/4 | 653 | 8 | 633 | 8 | 4-3/8 | 5-3/16 | 1800 | 290 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570132 | 32 | 3-1/2 | 2-3/4 | 654 | 8 | 634 | 10 | 4-13/16 | 5-3/4 | 1800 | 343 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570133 | 33 | 3-1/2 | 3-5/16 | 655 | 10 | 635 | 10 | 5-1/2 | 6-7/16 | 1800 | 449 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570134 | 34 | 4 | 1-1/16 | 656 | 5 | 636 | 6 | 3-9/16 | 4-3/16 | 1800 | 158 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570135 | 35 | 4 | 1-9/16 | 657 | 7 | 637 | 7 | 3-7/8 | 4-11/16 | 1800 | 214 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570136 | 36 | 4 | 2-1/16 | 658 | 8 | 638 | 8 | 4-11/16 | 5-1/4 | 1800 | 295 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570237 | 37 | 4 | 2-9/16 | 659 | 8 | 639 | 10 | 5-1/8 | 6-1/16 | 1800 | 343 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570138 | 38 | 4 | 3-1/16 | 660 | 10 | 640 | 10 | 5-9/16 | 6-1/4 | 1800 | 449 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570139 | 39 | 4 | 1 | 661 | 7 | 641 | 7 | 4-1/8 | 4-13/16 | 1800 | 262 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570140 | 40 | 5 | 1-1/2 | 662 | 8 | 642 | 8 | 4-1/2 | 5-5/16 | 1800 | 330 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570141 | 41 | 5 | 2 | 663 | 8 | 643 | 10 | 4-15/16 | 5-7/8 | 1800 | 345 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570142 | 42 | 5 | 2-9/16 | 664 | 10 | 644 | 12 | 5-9/16 | 6-1/2 | 1800 | 685 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570143 | 43 | 5 | 3-1/16 | 665 | 10 | 645 | 12 | 6-1/8 | 7-1/16 | 1800 | 449 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570144 | 44 | 5 | 4-3/16 | 666 | 12 | 646 | 14 | 7-3/16 | 8-1/4 | 1800 | 609 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570145 | 45 | 6 | 1 | 667 | 8 | 647 | 8 | 4-9/16 | 5-3/8 | 1800 | 382 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570146 | 46 | 6 | 1-1/2 | 668 | 8 | 648 | 10 | 5-1/16 | 5-7/8 | 1800 | 428 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570147 | 47 | 6 | 2 | 669 | 10 | 649 | 12 | 5-1/2 | 6-1/2 | 1800 | 540 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570148 | 48 | 6 | 2-1/2 | 670 | 10 | 650 | 12 | 6-1/16 | 7-1/16 | 1800 | 685 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570149 | 49 | 6 | 3 | 671 | 12 | 651 | 12 | 6-9/16 | 7-5/8 | 1800 | 769 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570150 | 50 | 6 | 4-1/8 | 672 | 14 | 652 | 16 | 7-5/8 | 9-1/8 | 1800 | 1024 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570151 | 51 | 8 | 1-1/2 | 673 | 10 | 653 | 12 | 6 | 7-1/8 | 1800 | 582 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570152 | 52 | 8 | 2 | 674 | 12 | 654 | 12 | 6-1/2 | 7-5/8 | 1800 | 641 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570153 | 53 | 8 | 2-11/16 | 675 | 12 | 655 | 14 | 7-1/4 | 8-5/16 | 1800 | 721 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570154 | 54 | 8 | 3-1/8 | 676 | 14 | 656 | 16 | 7-5/8 | 9-1/8 | 1800 | 914 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570155 | 55 | 8 | 4-1/8 | 677 | 16 | 657 | 18 | 8-11/16 | 10-1/8 | 1800 | 1024 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570156 | 56 | 10 | 1-9/16 | 678 | 12 | 658 | 14 | 7-1/4 | 8-5/16 | 1800 | 666 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570157 | 57 | 10 | 2-1/16 | 679 | 14 | 659 | 16 | 7-5/8 | 9-1/16 | 1800 | 857 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570158 | 58 | 10 | 2-9/16 | 680 | 14 | 660 | 16 | 8-3/16 | 9-5/8 | 1800 | 891 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570159 | 59 | 10 | 3-1/16 | 681 | 16 | 661 | 18 | 8-7/8 | 10-1/4 | 1800 | 1110 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570160 | 60 | 10 | 4-1/16 | 682 | 18 | 662 | 20 | 9-11/16 | 11-5/16 | 1800 | 1410 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570161 | 61 | 12 | 1-1/2 | 683 | 14 | 663 | 16 | 8-1/8 | 9-5/8 | 5000 | 761 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570162 | 62 | 12 | 2-1/16 | 684 | 16 | 664 | 18 | 8-13/16 | 10-3/16 | 5000 | 873 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570163 | 63 | 12 | 2-5/8 | 685 | 16 | 665 | 18 | 9-1/8 | 10-11/16 | 5000 | 969 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570164 | 64 | 12 | 3-1/16 | 686 | 18 | 666 | 20 | 9-11/16 | 11-5/16 | 5000 | 1138 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570165 | 65 | 12 | 4-1/8 | 687 | 20 | 667 | - | 10-13/16 | 12-3/8 | 5000 | 1420 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570166 | 66 | 14 | 1-1/2 | 688 | 16 | 668 | 18 | 8-7/8 | 10-3/16 | 5000 | 767 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570167 | 67 | 14 | 2 | 689 | 16 | 669 | 18 | 9-1/4 | 10-3/4 | 5000 | 943 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570168 | 68 | 14 | 2-1/2 | 690 | 18 | 670 | 20 | 9-3/4 | 11-5/16 | 5000 | 969 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570169 | 69 | 14 | 3 | 691 | 18 | 671 | 20 | 10-1/4 | 11-7/8 | 5000 | 1182 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570170 | 70 | 14 | 4 | 692 | 20 | 672 | - | 11-7/16 | 13-1/8 | 7200 | 1848 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570171 | 71 | 16 | 1-1/2 | 693 | 18 | 673 | 20 | 9-7/8 | 11-3/8 | 5000 | 835 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570172 | 72 | 16 | 2 | 694 | 18 | 674 | 20 | 10-1/4 | 11-7/8 | 5000 | 1000 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570173 | 73 | 16 | 2-1/2 | 695 | 20 | 675 | - | 10-7/8 | 12-7/16 | 7200 | 1462 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570174 | 74 | 16 | 3 | 696 | 24 | 676 | - | 11-3/16 | 13-1/18 | 7200 | 1817 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570175 | 75 | 16 | 4 | 697 | 24 | 677 | - | 12-5/16 | 14-3/16 | 7200 | 2180 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570176 | 76 | 18 | 1-1/2 | 698 | 20 | 678 | - | 10-7/8 | 12-1/2 | 5000 | 892 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570177 | 77 | 18 | 2 | 699 | 20 | 679 | - | 11-1/2 | 13-1/16 | 7200 | 1319 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570178 | 78 | 18 | 2-1/2 | 700 | 24 | 680 | - | 12 | 13-5/16 | 7200 | 1689 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W750179 | 79 | 18 | 3 | 701 | 24 | 681 | - | 12-5/16 | 14-1/4 | 7200 | 1820 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570180 | 80 | 18 | 4 | 702 | 24 | 682 | - | 13-1/2 | 15/7/16 | 7200 | 2195 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570181 | 81 | 20 | 1-1/2 | 703 | 24 | 683 | - | 11-3/4 | 13-11/16 | 7200 | 1376 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570182 | 82 | 20 | 2 | 704 | 24 | 684 | - | 2-5/16 | 14-1/4 | 7200 | 1498 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570183 | 83 | 20 | 2-1/2 | 705 | 24 | 685 | - | 12-7/8 | 14-13/16 | 7200 | 1679 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570184 | 84 | 20 | 3 | 706 | 24 | 686 | - | 13-1/2 | 15-1/2 | 7200 | 1840 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570185 | 85 | 20 | 4 | 707 | 30 | 687 | - | 14-3/16 | 16-5/8 | 7200 | 2283 |
| PIPE COVERING PROTECTION SADDLE SER W570 | W570186 | 86 | 24 | 1-1/2 | 708 | 30 | 688 | - | 13-5/8 | 16-1/16 | 7200 | 1605 |
I.S.P. Felt Isolator
I.S.P. FELT ISOLATOR – SERIES W585
| CATEGORY | PART # | PIPE SIZE | SIZE B | SIZE C | SIZE D | USE WITH HANGER SIZE | LBS PER 100PCS |
|---|---|---|---|---|---|---|---|
| I.S.P. FELT ISOLATOR SER W585 | W585104 | 1/2” | 2” | 1-1/4” | 1-5/32” | 3/4” | 4.5 |
| I.S.P. FELT ISOLATOR SER W585 | W585106 | 3/4” | 2” | 1-1/4” | 1-5/16” | 1” | 5.5 |
| I.S.P. FELT ISOLATOR SER W585 | W585110 | 1” | 2” | 1-1/4” | 1-21/32” | 1-1/4” | 7 |
| I.S.P. FELT ISOLATOR SER W585 | W585112 | 1-1/4” | 2” | 1-1/4” | 1-29/32” | 1-1/2” | 8 |
| I.S.P. FELT ISOLATOR SER W585 | W585114 | 1-1/2” | 2” | 1-1/4” | 2-3/8” | 2” | 10 |
| I.S.P. FELT ISOLATOR SER W585 | W585120 | 2” | 2” | 1-1/4” | 2-7/8” | 2-1/2” | 15.5 |
| I.S.P. FELT ISOLATOR SER W585 | W585124 | 2-1/2” | 2-1/2” | 1-1/4” | 3-1/2” | 3” | 23.5 |
| I.S.P. FELT ISOLATOR SER W585 | W585130 | 3” | 2-1/2” | 1-1/4” | 4” | 3-1/2” | 28 |
| I.S.P. FELT ISOLATOR SER W585 | W585134 | 3-1/2” | 3-1/4” | 1-1/4” | 4-1/2” | 4” | 46 |
| I.S.P. FELT ISOLATOR SER W585 | W585140 | 4” | 3-5/8” | 1-3/8 | 5-9/16” | 5” | 68 |
| I.S.P. FELT ISOLATOR SER W585 | W585150 | 5” | 4” | 2” | 6-5/8” | 6” | 115 |
| I.S.P. FELT ISOLATOR SER W585 | W585160 | 6” | 4-1/2” | 2” | 8-5/8” | 8” | 190 |
Copper Tubing Felt Isolator
COPPER TUBING FELT ISOLATOR – SERIES W586
| CATEGORY | PART # | PIPE SIZE | SIZE B | SIZE C | SIZE D | USE WITH HANGER SIZE | LBS PER 100PCS |
|---|---|---|---|---|---|---|---|
| COPPER TUBING FELT ISOLATOR SER W586 | W586104 | 1/2” | 2” | 1-1/4” | 1-5/32” | 3/4” | 4.5 |
| COPPER TUBING FELT ISOLATOR SER W586 | W586106 | 3/4” | 2” | 1-1/4” | 1-5/32” | 3/4” | 4.5 |
| COPPER TUBING FELT ISOLATOR SER W586 | W586110 | 1” | 2” | 1-1/4” | 1-5/16” | 1” | 5.5 |
| COPPER TUBING FELT ISOLATOR SER W586 | W586112 | 1-1/4” | 2” | 1-1/4” | 1-21/32” | 1-1/4” | 7 |
| COPPER TUBING FELT ISOLATOR SER W586 | W586114 | 1-1/2” | 2” | 1-1/4” | 1-29/32” | 1-1/2” | 9 |
| COPPER TUBING FELT ISOLATOR SER W586 | W586120 | 2” | 2” | 1-1/4” | 2-3/8” | 2” | 10 |
| COPPER TUBING FELT ISOLATOR SER W586 | W586124 | 2-1/2” | 2” | 1-1/4” | 2-7/8” | 2-1/2” | 12 |
| COPPER TUBING FELT ISOLATOR SER W586 | W586130 | 3” | 2-1/2” | 1-1/4” | 3-1/2” | 3” | 25.5 |
| COPPER TUBING FELT ISOLATOR SER W586 | W586134 | 3-1/2” | 2-1/2” | 1-1/4” | 4” | 3-1/2” | 30 |
| COPPER TUBING FELT ISOLATOR SER W586 | W586140 | 4” | 3-1/4” | 1-1/4” | 4-1/2” | 4” | 46 |
| COPPER TUBING FELT ISOLATOR SER W586 | W586150 | 5” | 3-5/8” | 1-3/8” | 5-9/16” | 5” | 58 |
| COPPER TUBING FELT ISOLATOR SER W586 | W586160 | 6” | 4” | 2” | 6-5/8” | 6” | 95 |
Surge Ring Hanger
SURGE RING HANGER – SERIES W581
| CATEGORY | PART # | PIPE SIZE | SIZE B | MIN C | MAX C | SIZE D | SIZE E | SIZE F | SIZE G |
|---|---|---|---|---|---|---|---|---|---|
| SURGE RING HANGER SER W581 | W581206 | 3/4” | 7/8” | 13/16” | 1” | 2” | 1/4” | 7/8” | 7/8” |
| SURGE RING HANGER SER W581 | W581210 | 1” | 1-1/4” | 1” | 1-3/8” | 2-3/8” | 3/8” | 1” | 7/8” |
| SURGE RING HANGER SER W581 | W581212 | 1-1/4” | 1-3/8” | 1-1/2” | 1-5/8” | 2-7/8” | 3/8” | 1” | 7/8” |
| SURGE RING HANGER SER W581 | W581214 | 1-1/2” | 1-5/8” | 1-5/8” | 2” | 3-1/4” | 3/8” | 1-1/8” | 1” |
| SURGE RING HANGER SER W581 | W581220 | 2” | 1-7/8” | 2-1/4” | 2-1/2” | 3-3/4” | 3/8” | 1-1/4” | 1-1/4” |
